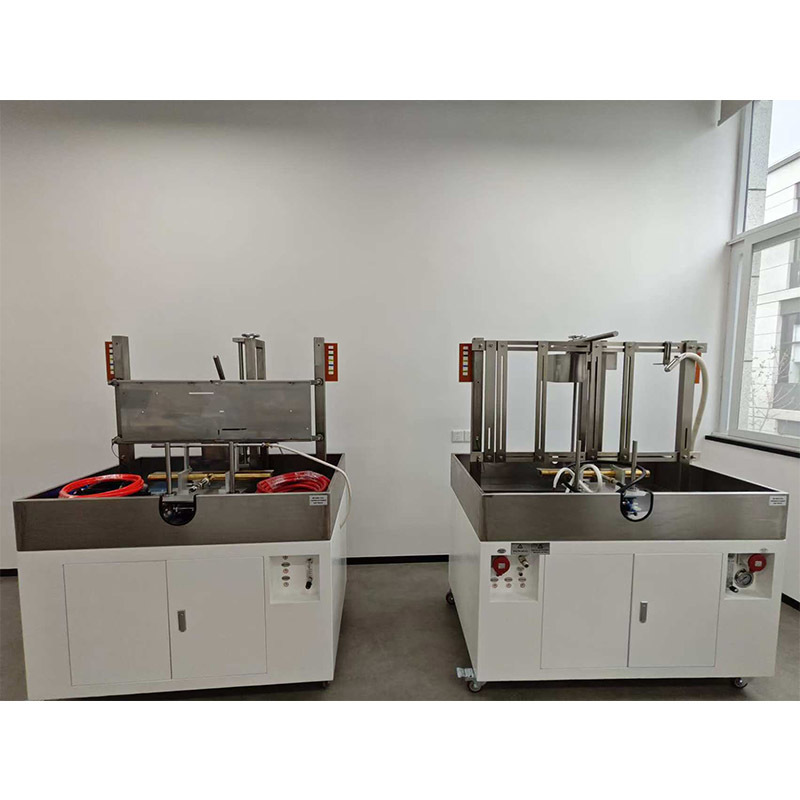

Cable Fire Resistance Impact Water Spray Test Machine For BS 6387 IEC 60331
Cable Fire Resistance Impact Water Spray Test Machine For BS 6387 IEC 60331
Cable Fire Resistance Impact Water Spray Test Machine For BS 6387 IEC 60331
Cable Fire Resistance Impact Water Spray Test Machine For BS 6387 IEC 60331
Cable Fire Resistance Impact Water Spray Test Machine For BS 6387 IEC 60331
Cable Fire Resistance Impact Water Spray Test Machine For BS 6387 IEC 60331
Cable Fire Resistance Impact Water Spray Test Machine For BS 6387 IEC 60331
Cable Fire Resistance Impact Water Spray Test Machine For BS 6387 IEC 60331
Cable Fire Resistance Impact Water Spray Test Machine For BS 6387 IEC 60331
Cable Fire Resistance Impact Water Spray Test Machine For BS 6387 IEC 60331
Cable Fire Resistance Impact Water Spray Test Machine For BS 6387 IEC 60331
Cable Fire Resistance Impact Water Spray Test Machine For BS 6387 IEC 60331
Specifications
Standard :
BS 6387,IEC 60331,BS 8491
Model Number :
GD-BS 6387
Voltage :
380V,50HZ
Payment Terms :
L/C,D/A,D/P,T/T
Air flow rate :
0~200L/min
Supply Ability :
5 sets per months
Control method :
PC control
MOQ :
1 set
Delivery Time :
30 days
Gas source :
Propane, Dry compressed air
Price :
USD 5000-9000/set
Packaging Details :
Plywood case
Product name :
Cable Fire Resistance Impact Water Spray Test Machine
Brand Name :
GOLD
Fire supply time :
0-999 min
Certification :
ISO
Sample applied voltage :
AC100V～1000V adjustable
Place of Origin :
China
Description

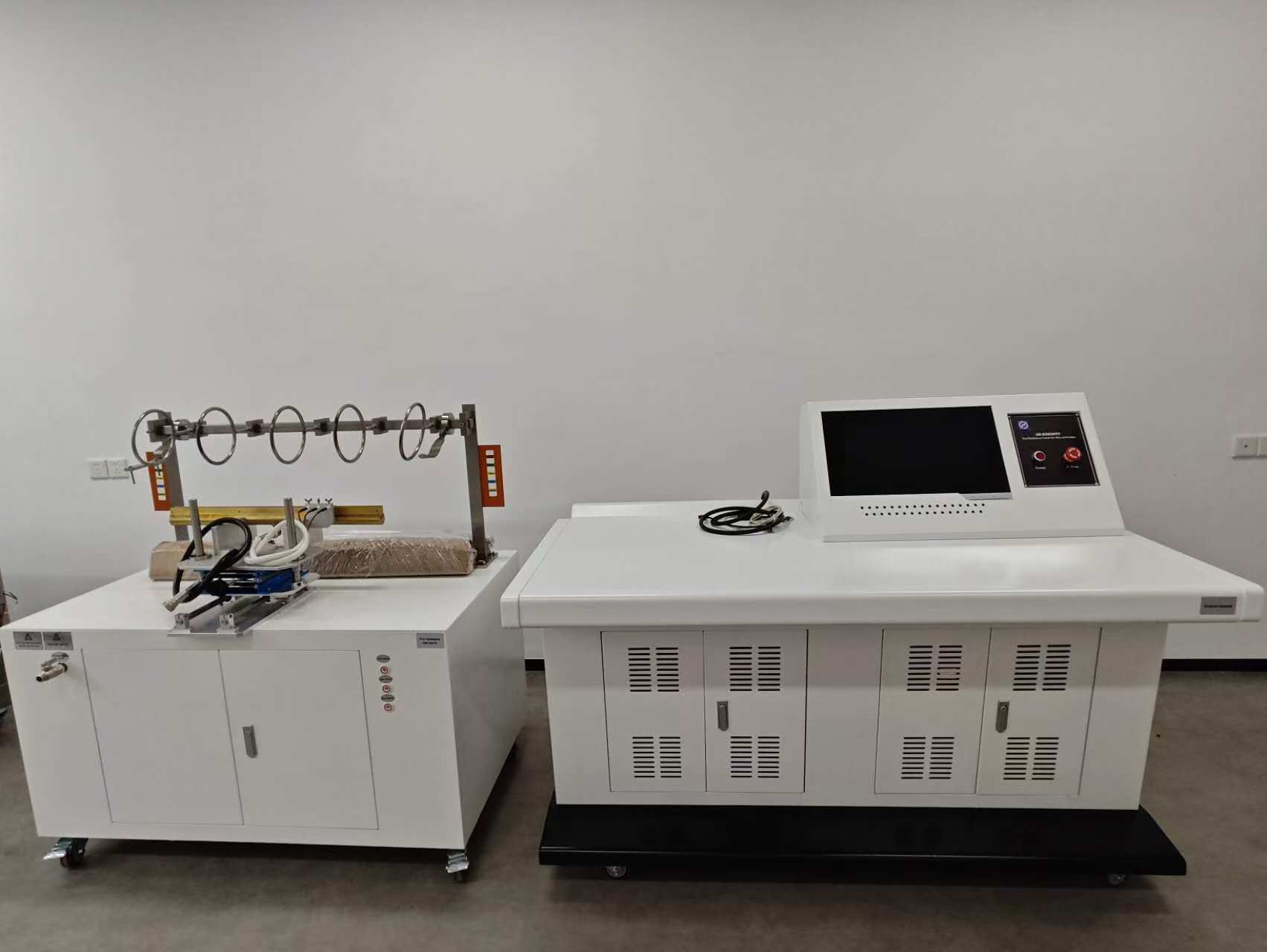

Cable Fire Resistance Impact Water Spray Test Machine For BS 6387 IEC 60331
The fire resistance tester for wires and cables is suitable for testing whether cables or optical cables maintain their integrity when exposed to flames at a temperature not lower than 750°C, and whether they maintain their integrity when exposed to flames at a temperature not lower than 830°C and subjected to impact.
Cable Fire Resistance Impact Water Spray Test Machine For BS 6387 IEC 60331
Applicable Standards
  • BS6387
  • IEC60331 (Parts 1, 2, 11, 21, 23, 25)
  • BS 8491
Standards Comparison
Standard Applicable Cables Flame Temperature Test Content Differences from BS 6387
BS 6387 ≤ 0.6/1 kV, diameter ≤ 20 mm, including MICC (BS 6207) 950°C (C/Z), 650°C (W) Fire (950°C, 3h), Fire + Water Spray (650°C, 15min + 15min), Fire + Mechanical Shock (950°C, 15min, every 30s) Reference standard with comprehensive fire, impact, and spray tests
IEC 60331 ≤ 0.6/1 kV, all diameters 750-830°C Fire (90min+), no impact or spray Lower temperature, no mechanical shock or water spray, less stringent
EN 50200 ≤ 20 mm, emergency circuits 830°C Fire + Mechanical Shock (every 5min, up to 120min) No water spray, lower impact frequency, lower temperature (830°C)
BS 8491 > 20 mm, fire safety systems 850°C Fire + Mechanical Shock (every 30s) + Water Jet (120min) Larger cables, water jet instead of spray, lower temperature (850°C)
Technical Specifications
Test cabinet size:1500mm(W)×850mm(D)×1600mm(H)
Console size:1500mm(W)×900mm(D)×1300mm(H)
Water tank size:1500mm×1200mm×900mm
Test chamber:Prepared by the customer
Gas source:Propane, air (prepared by the customer)
Power supply:Three-phase five-wire AC380V 50/60Hz 30A

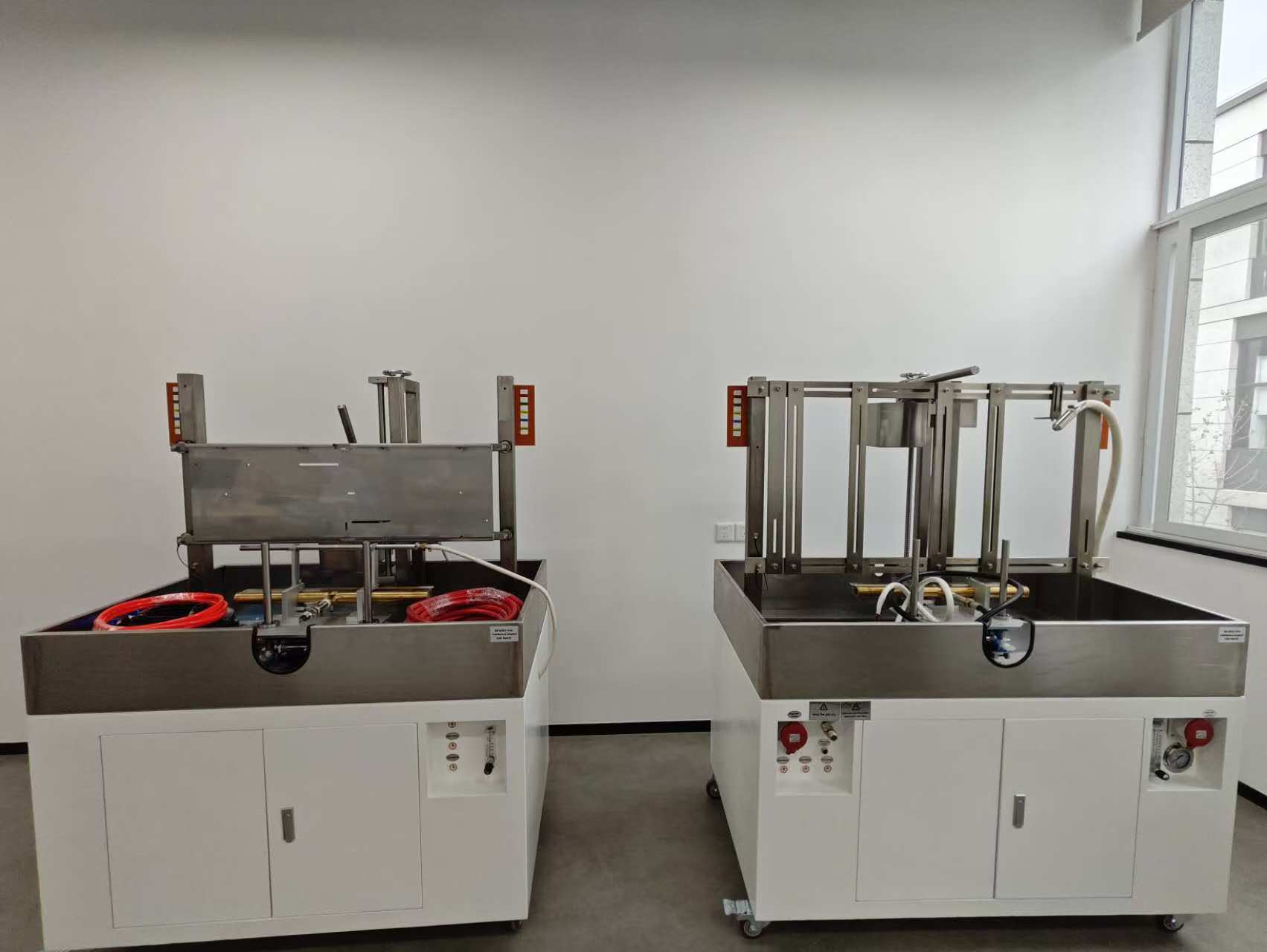

Cable Fire Resistance Impact Water Spray Test Machine For BS 6387 IEC 60331
Technical Features

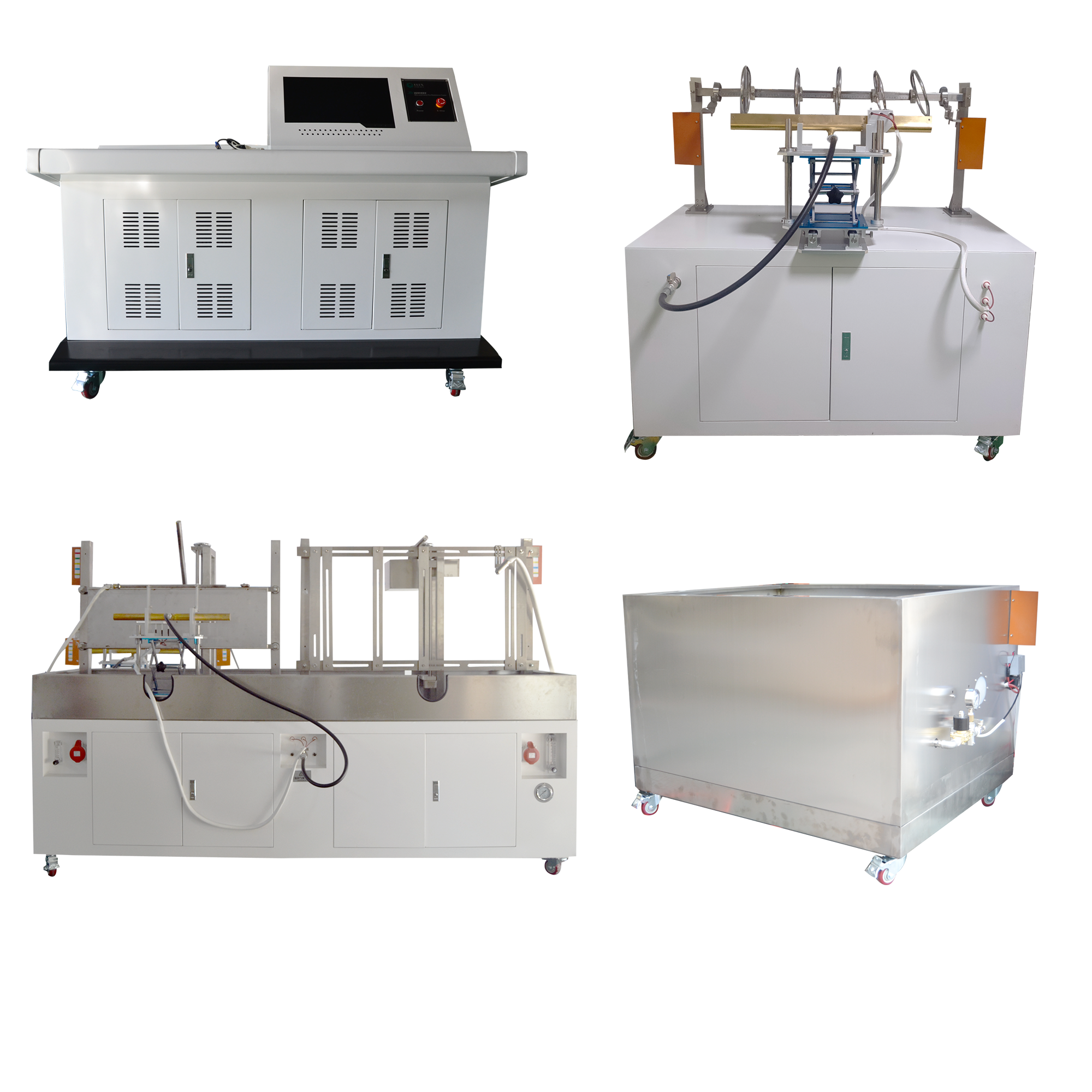

  • Main components: combustion chamber, combustion system, control room, and overall control system
  • Burner: Ribbon-type propane gas torch with nominal length of 500mm and Venturi mixer
  • Gas control system: Composed of regulating valve, high-pressure automatic igniter, flameout device, control thermocouple, propane cylinder, and pressure controls
  • Flame temperature: Adjustable from 750°C to 1000°C
  • Combustion gas: Propane with purity of 98%
  • Combustion-supporting gas: Compressed air (pressure must reach 10Mba or higher)
  • Flow meters: Two rotor flow meters for precise measurement
  • Air flow rate: 0~200L/min
  • Propane flow rate: 0~20L/min, adjustable
  • Thermocouples: Vertical and horizontal thermocouples for accurate temperature monitoring
  • Verification system: Automated verification with precision timing and temperature validation
  • Ignition system: High-voltage pulse automatic ignition with programmable timing
  • Test voltage: 0-1000V continuously adjustable phase voltage
Cable Fire Resistance Impact Water Spray Test Machine For BS 6387 IEC 60331
