IEC 60331 Cable Fire Resistance Tester with PC Control Adjustable Voltage and Impact Water Spray Test
IEC 60331 Cable Fire Resistance Tester with PC Control Adjustable Voltage and Impact Water Spray Test
IEC 60331 Cable Fire Resistance Tester with PC Control Adjustable Voltage and Impact Water Spray Test
IEC 60331 Cable Fire Resistance Tester with PC Control Adjustable Voltage and Impact Water Spray Test
IEC 60331 Cable Fire Resistance Tester with PC Control Adjustable Voltage and Impact Water Spray Test
IEC 60331 Cable Fire Resistance Tester with PC Control Adjustable Voltage and Impact Water Spray Test
IEC 60331 Cable Fire Resistance Tester with PC Control Adjustable Voltage and Impact Water Spray Test
IEC 60331 Cable Fire Resistance Tester with PC Control Adjustable Voltage and Impact Water Spray Test
IEC 60331 Cable Fire Resistance Tester with PC Control Adjustable Voltage and Impact Water Spray Test
IEC 60331 Cable Fire Resistance Tester with PC Control Adjustable Voltage and Impact Water Spray Test
Specifications
Brand Name :
GOLD
Model Number :
GD-IEC 60331
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
USD 5000-10000/set
Payment Terms :
L/C,D/A,D/P,T/T,
Supply Ability :
5 sets per months
Delivery Time :
30 days
Packaging Details :
Plywood case
Product name :
Wire and Cables Fire Resistance Tester
Standard :
IEC 60331,BS 6387,BS 8491
Experimental Air Pressure :
86～106kpa
Sample applied voltage :
AC100V～1000V adjustable
Control method :
PC control
Gas source :
Propane, Dry compressed air
Voltage :
380V
Exhaust :
minimum 15m³/min
Description
IEC 60331 Cable Fire Resistance Tester BS 6387 BS 8491 Impact And Water Spray Test
Cable Fire Resistance Tester Product Introduction:
The fire tester's performance requirements, including fire resistance, water spray fire resistance, and mechanical fire resistance tests, are applicable to mineral insulated cables with rated voltages up to 450/750V, ensuring they maintain circuit integrity for extended periods under fire. This complies with the British fire-resistant cable standard, BS6387, IEC 60331-1,-2,-11,-21,-23,-25, BS 8491 "Specification for performance requirements for cables intended to maintain circuit integrity under fire conditions."
IEC 60331 Cable Fire Resistance Tester with PC Control Adjustable Voltage and Impact Water Spray Test
Cable Fire Resistance Tester Standards:
  • BS6387
  • IEC60331--(1,2,11,21,23,25)
  • BS 8491
  • GB/T19216.(11,21,23,25)
  • GB/T19216.(12,31)
  • GB/T19666
  • EN50200
IEC 60331 Cable Fire Resistance Tester with PC Control Adjustable Voltage and Impact Water Spray Test
Cable Fire Resistance Tester Specifications:
Parameter Value
Test cabinet size 1500mm(W)×850mm(D)×1600mm(H)
Console size 1500mm(w)×900mm(D)×1300mm(H)
Water tank size 1500mm×1200mm×900mm
Test chamber (prepared by the customer)
Gas source propane, air (prepared by the customer)
Power supply three-phase five-wire AC380V 50/60Hz 30A
Wire and Cables Circuit Integrity Tester Technical Parameters:

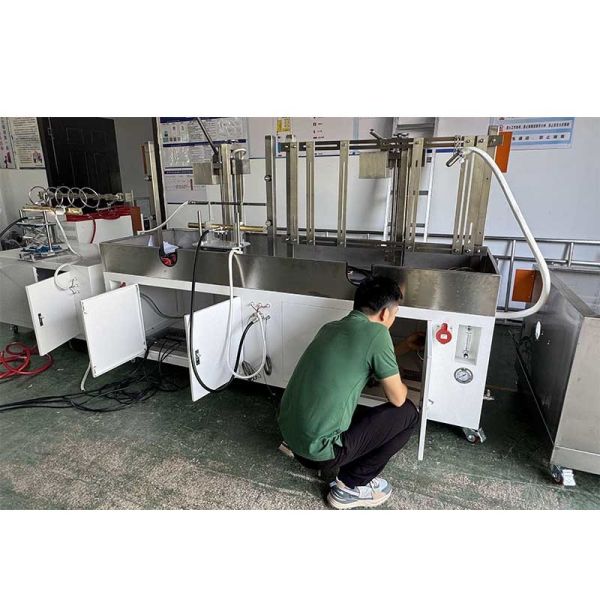

  • The combustion rack is cabinet-style, with fire-resistant and impact-resistant brackets adjacent to each other, providing convenient operation and an aesthetically pleasing appearance.

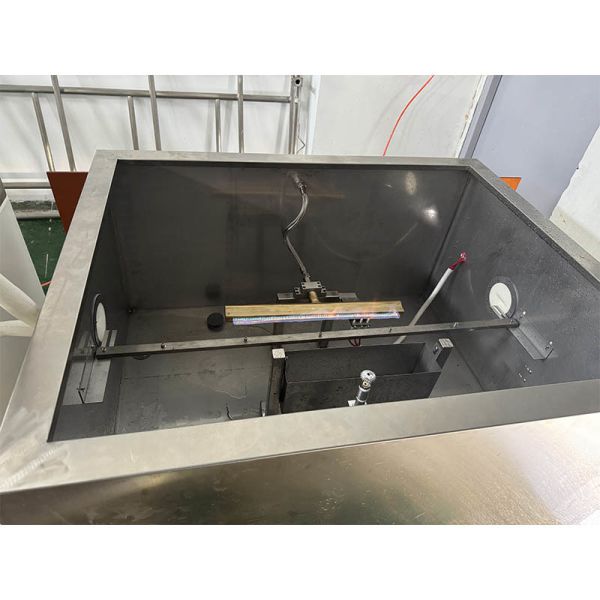

  • Burner: 500mm ribbon-type blowtorch (with venturi mixer). Burner holes are arranged in three staggered rows, with a hole diameter of φ1.32mm and a center distance of φ3.2mm.
  • Fire-resistant bracket: Consists of two metal rings, approximately 300mm apart. The inner diameter of the metal ring supporting the test is approximately 150mm.
  • Fire-Resistant Impact Test Stand:
    • For IEC60331-1 specimens with an outer diameter exceeding 20 mm, the impact test ladder consists of a steel frame with two central vertical steel members that can be adjusted left and right.
    • For IEC60331-2 specimens with an outer diameter not exceeding 20 mm, the test wall consists of a heat-resistant, non-combustible non-metallic material securely fastened to two horizontal steel support rods.
  • Sample applied voltage: AC 100V-1000V, adjustable
  • Sample short-circuit breakdown current: 2A
  • Sample holding current: 100-260mA, adjustable
  • Three-phase transformer: 380V, 9kVA
  • Specimen short-circuit or open-circuit will stop the flame supply and cut off the voltage, and the software will display a fault message
  • Flame supply time: Adjustable from 0 to 999 minutes
  • Two φ1.5mm thermocouples and a corresponding thermometer for flame correction display flame temperature
  • Gas source control and regulation: Air flow rate is adjustable from 20 to 200 L/min using a mass flow meter; propane flow rate is adjustable from 2 to 20 L/min using a mass flow meter
  • Control method: Computer software controls the operation, monitoring current, voltage, gas flow rate, test results, and graph printing during the test
IEC 60331 Cable Fire Resistance Tester with PC Control Adjustable Voltage and Impact Water Spray Test
