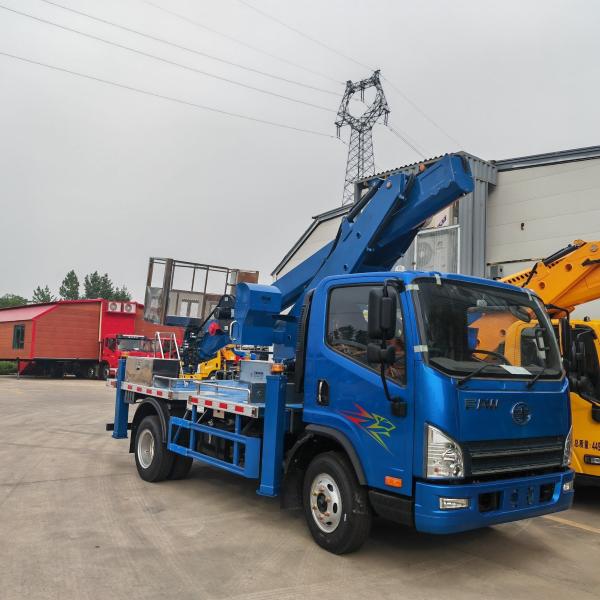

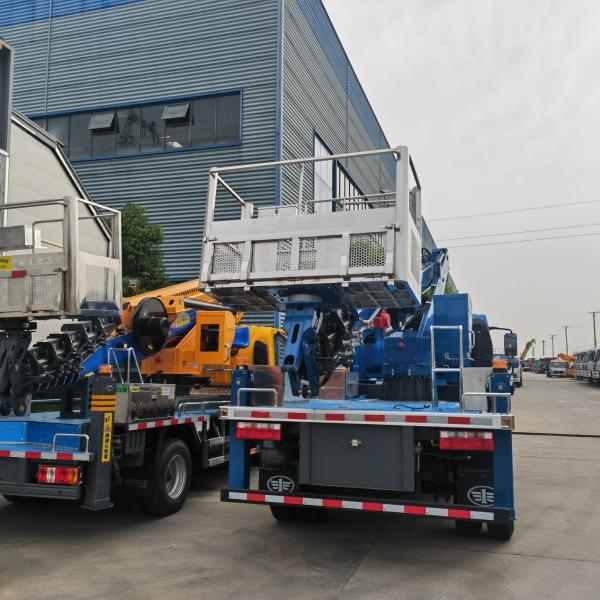

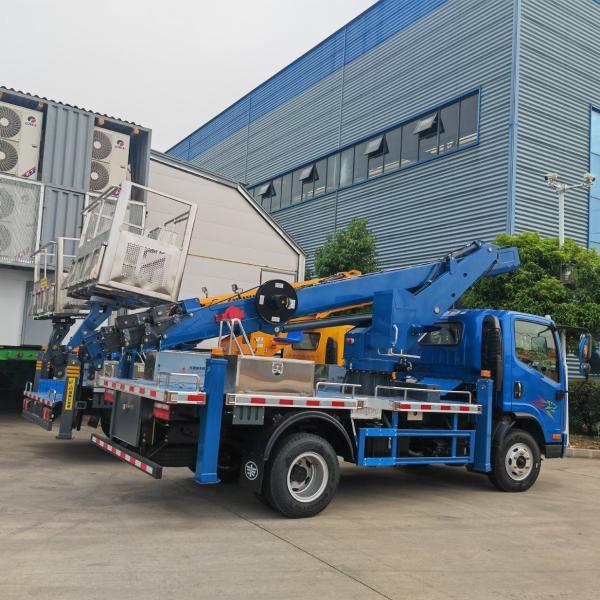

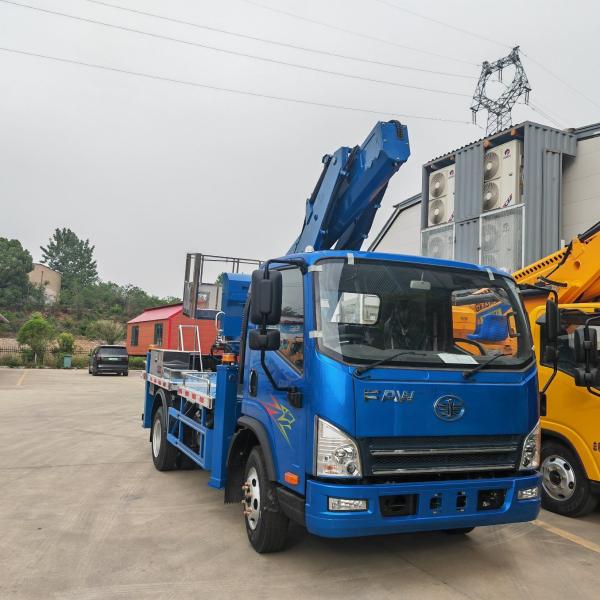

FAW RHD Aerial Working Platform Trucks High Altitude Lift Overhead Bucket Lift Truck
FAW RHD Aerial Working Platform Trucks High Altitude Lift Overhead Bucket Lift Truck
FAW RHD Aerial Working Platform Trucks High Altitude Lift Overhead Bucket Lift Truck
FAW RHD Aerial Working Platform Trucks High Altitude Lift Overhead Bucket Lift Truck
FAW RHD Aerial Working Platform Trucks High Altitude Lift Overhead Bucket Lift Truck
FAW RHD Aerial Working Platform Trucks High Altitude Lift Overhead Bucket Lift Truck
FAW RHD Aerial Working Platform Trucks High Altitude Lift Overhead Bucket Lift Truck
FAW RHD Aerial Working Platform Trucks High Altitude Lift Overhead Bucket Lift Truck
FAW RHD Aerial Working Platform Trucks High Altitude Lift Overhead Bucket Lift Truck
FAW RHD Aerial Working Platform Trucks High Altitude Lift Overhead Bucket Lift Truck
FAW RHD Aerial Working Platform Trucks High Altitude Lift Overhead Bucket Lift Truck
FAW RHD Aerial Working Platform Trucks High Altitude Lift Overhead Bucket Lift Truck
Specifications
Certification :
ISO9001, ISO14001, OHSAS18001, CCC
Place of Origin :
China
Brand Name :
FAW
Model Number :
CLW
MOQ :
1
Price :
15000-35000 per unit
Packaging Details :
Nude
Delivery Time :
65 working days after deposit
Payment Terms :
50% Deposit,Balance should be paid before ship out
Supply Ability :
500PCS/Week
Name :
Aerial Working Platform Trucks
Model NO. :
FAW
Type :
H
Emission Standard :
Euro 2
Hoesrpower :
150-250hp
Payload :
20T
Fuel :
Diesel
Transmission Type :
Manual
Drive Wheel :
4x2
Condition :
New
Capacity :
22meter
Feature :
Telescopic Boom High Lifting Platform
Transport Package :
Naked
Specification :
7615X1990X2995 mm
Trademark :
FAW
Origin :
China
HS Code :
8701909000
Package Size :
1.00cm * 1.00cm * 1.00cm
Package Gross Weight :
1.000kg
Customization :
Available
After-sales Service :
2 Year
Warranty :
12 Month
Shipping Cost :
Contact the supplier about freight and estimated delivery time.
  :
Support payments in USD
Secure payments :
Every payment you make on Made-in-China.com is protected by the platform.
Refund policy :
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Manufacture :
Chengli Special Automobile Co.,Ltd
Description
FAW RHD Aerial Work Working High Altitude Lift Overhead Bucket Platform

I.Product Describution:
Aerial platform truck basic specification below:

1, Aerial working height :14m,16m,18m,20m,22m,24m
(4*2 Chassis brand with Dongfeng, Sinotruck, Shacman,I suzu, Foton and so on available)
2, The Hydraulic lifting system will allow continuous 360-degree rotation, with a safety system to prevent sudden drops in case of failure.
3, Aerial bucket is moving system with dual action commands, one at ground level and the other at the level of the bucket,Truck equipped with two rotating amber lights
4, Aerial work platform truck equipped with balance valve ,emergency valve to keep safety when people overhead working .
5, Application:It is mainly used for inspection of electric lines, cleaning of aerial work, pruning of trees and other aerial work.


Feature:

1. Four rotational alert lamps on the platform deck.
2. Four hydraulic outriggers which can be operated independently or simultaneously
3. With an Insulated bucket for worker to operation and lifting hook
4. Three section Folded Arms, 360° rotation
5. Imported electro-hydraulic ratio control valve.
6. Operation Control on operation bucket or platform deck
7. Protective material:Q235A carbon steel
8.Work platform is limited to two persons
9.one ton of hook can be configured.


Technical date:
Items Descriptions Specifications and Types
General Truck Name Aerial platform truck
Drive Type 4*2
Gross Vehicle Weight(kg) 4495
Curb Weight (kg) 4300
Overall Dimensions L*W*H(mm) 5950×2060×2760
Engine Engine Model BJ493ZLQV1
Engine Brand FAW
Fuel Type Diesel
Power 80kw/108HP
Emission Standard Euro 2/3/4/5/6
Displacement(ml) 3726
Engine Type 4 cylinders in line, water cooling, diesel inter-cooling
Chassis Chassis Brand FOTON
Tire No. 6+1
Tire Specification 7.00R16 Steel tire
Wheelbase (mm) ; 3360
Axle No. 2
Steering Wheel Left hand drive with power assisted
Gear Box 5 speed forward with 1 reverse, manual
Brake Air brake
Hydraulic System Max lifting height(m) 12
Max loading capacity of bucket(kg) 200
Rotation angle of boom(°) 360
Boom type Telescopic boom
Control Type Manual or remote control
Outrigger 4 nos H type outriggers



FAW RHD Aerial Working Platform Trucks High Altitude Lift Overhead Bucket Lift Truck

Established in Sep. 2004,Chengli Special Automobile Co., Ltd is an important branch of CLW group with registered capital 100,000,000 RMB(14
millions US Dollars) and total capital 6,000,000,000(840 millions US Dollars).

FAW RHD Aerial Working Platform Trucks High Altitude Lift Overhead Bucket Lift Truck
Overseas Market
Trucks from Chengli Special Automobile Co., Ltd have been sold to more than 29 provinces in China and more than 80 overseas countries and regions in
Asia, Africa, South America, middle east and so on, such as Russia, Mogolia, Philippine, Vietnam, Cambodia, Myanmar, Laos, Kazakhstan, uzbickstan,
Kyrghyzstan, Tanzania, Zambia, Nigeria, Austrilia, Chile, Bolivia, Ethiopia, Sudan, Malaysia, Congo, El Salvador, Iraq, New Zealand, Chile, Bolivia, Argentina
and so on.
