Dongfeng Self Loading Flatbed Excavator Transport Truck , Harvester Transport Truck
Dongfeng Self Loading Flatbed Excavator Transport Truck , Harvester Transport Truck
Dongfeng Self Loading Flatbed Excavator Transport Truck , Harvester Transport Truck
Dongfeng Self Loading Flatbed Excavator Transport Truck , Harvester Transport Truck
Dongfeng Self Loading Flatbed Excavator Transport Truck , Harvester Transport Truck
Dongfeng Self Loading Flatbed Excavator Transport Truck , Harvester Transport Truck
Dongfeng Self Loading Flatbed Excavator Transport Truck , Harvester Transport Truck
Dongfeng Self Loading Flatbed Excavator Transport Truck , Harvester Transport Truck
Dongfeng Self Loading Flatbed Excavator Transport Truck , Harvester Transport Truck
Dongfeng Self Loading Flatbed Excavator Transport Truck , Harvester Transport Truck
Dongfeng Self Loading Flatbed Excavator Transport Truck , Harvester Transport Truck
Dongfeng Self Loading Flatbed Excavator Transport Truck , Harvester Transport Truck
Specifications
Place of Origin :
China
Brand Name :
CLW
Certification :
ISO9001, ISO14001, OHSAS18001, CCC
Model Number :
CLW
MOQ :
1
Price :
15000-35000 per unit
Packaging Details :
Nude
Delivery Time :
65 working days after deposit
Payment Terms :
50% Deposit,Balance should be paid before ship out
Supply Ability :
500PCS/Week
Name :
Flatbed Tow Truck
Model NO. :
Dongfeng
Load Capacity :
1-10t
Emission Standard :
Euro 3
Drive Wheel :
4×2
Engine Capacity :
＜4L
Seats :
≤5
Horsepower :
150-250hp
Tire Certification :
ECE, GCC, ISO, DOT
Tire Design :
Tubeless
Dumping Type :
Front Lifting Style
Condition :
New
Transport Package :
Nude Packing
Specification :
7700*2400*2600 mm
Trademark :
Dongfeng DFAC
Origin :
China
HS Code :
87054000
Manufacture :
Chengli Special Automobile Co.,Ltd
Description
Dongfeng Selfloading Flatbed Excavator Loader Harvester Transport Truck

Excavator carrier lorry (also called flat bed truck , excavator transport truck , machinery transport truck , flatbed lorry , low bed truck , excavator carrier truck , asphalt paver carrier truck , lorry carrier truck ) is used for transporting abject that is non removable or machinery that cann't be driven on road , such as excavator , loader , harvester , etc . It's widely used in the construction , agriculture field .

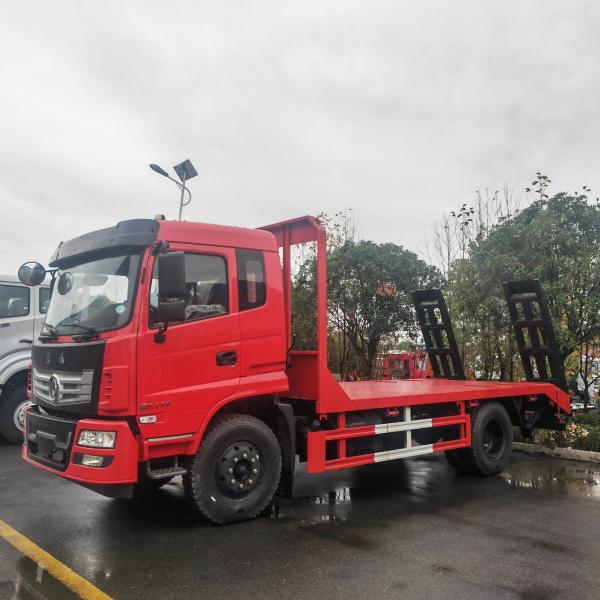

To load machinery easily , there is a tilt ramp at back of flatbed , When loading machinery on , turnover the ramp to ground , So there could be a slope between ground and flatbed . When finished loading , The ramp should be fold up and fastened by manual . According to special requirements , The ramps could be hydraulic fold and extension .

According to its driven type , there is 4*2, 6*4,8*4 flatbed truck .

Technical date:
ITEM UNIT DESCRIPTION
Vehicle
DONGFENG tow truck wrecker
Overall dimension mm 7470×2350×2440
Flatbed dimension 5550×2300
Curb weight kg Appro×4910
Flatbed loading weight Appro×4000
Carriage arm loading weight Appro×3000
Wheel base mm 3800
Front/Rear overhang 1210/2460
Approach/departure angle ° 24°/10°
Standard configuration 1) 4 tons winch 1 set
2) Auxiliary wheel 2pcs
3) Rear towing arm assembly 1 set
4) Steel wire rope 25m
5) Bunding belt 4pcs
6) Rear tail lights LED,both sides electronic lights.
7) Tool box
Working Performance 1. It can tow two cars.
2. Hydraulic control flatbed and carriage arm,with hydraulic operation lever.
3. Winch speed : 8m/min.
4. Flatbed working stroke: 2680mm
5. Flatbed minimum tilt angle: 10°
6. Carriage arm telescopic stroke: 1180mm
7. The max effective length of the carriage arm: 1300mm
Chassis Parameter
Cabin Single row cabin,air conditioner,power steering, cabin roof warning light, 3 passangers
Drive type 4×2,left /right hand dirve
Engine Brand : DONFGENG CHAOCHAI POWER
Model :CY4102-E3C, 120hp
Type : diesel, 4 cylinder, turbocharged, intercooled.


Chassis brand

CNHTC , Beiben trucks , Shacman trucks , FAW trucks , I SUZU ,Hongyan trucks,FOTON trucks , Dongfeng trucks , JAC trucks
Dongfeng Self Loading Flatbed Excavator Transport Truck , Harvester Transport Truck

More Excavator carrier lorry :

Dongfeng Self Loading Flatbed Excavator Transport Truck , Harvester Transport Truck
Established in Sep. 2004,Chengli Special Automobile Co., Ltd is an important branch of CLW group with registered capital 100,000,000 RMB(14
millions US Dollars) and total capital 6,000,000,000(840 millions US Dollars).

Dongfeng Self Loading Flatbed Excavator Transport Truck , Harvester Transport Truck
Overseas Market
Trucks from Chengli Special Automobile Co., Ltd have been sold to more than 29 provinces in China and more than 80 overseas countries and regions in
Asia, Africa, South America, middle east and so on, such as Russia, Mongolia, Philippines, Vietnam, Cambodia, Myanmar, Laos, Kazakhstan, Uzbekistan,
Kyrghzstan, Tanzania, Zambia, Nigeria, Australia, Chile, Bolivia, Ethiopia, Sudan, Malaysia, Congo, El Salvador, Iraq, New Zealand, Chile, Bolivia, Argentina and also truck body for client drawing
Dongfeng Self Loading Flatbed Excavator Transport Truck , Harvester Transport Truck
