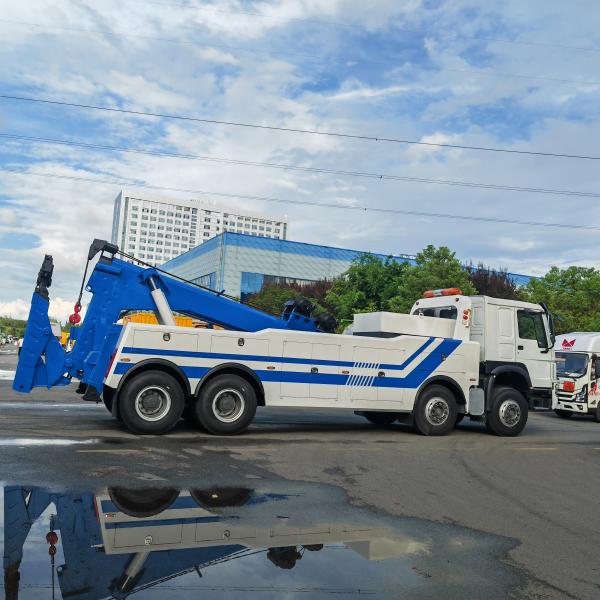

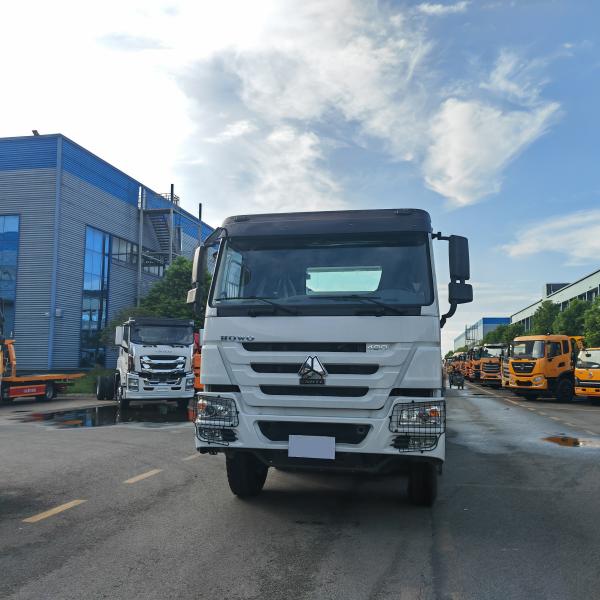

HOWO 400HP 12 Wheel 50 Ton Recovery Rotator Wrecker Tow Road Rescue Truck
HOWO 400HP 12 Wheel 50 Ton Recovery Rotator Wrecker Tow Road Rescue Truck
HOWO 400HP 12 Wheel 50 Ton Recovery Rotator Wrecker Tow Road Rescue Truck
HOWO 400HP 12 Wheel 50 Ton Recovery Rotator Wrecker Tow Road Rescue Truck
HOWO 400HP 12 Wheel 50 Ton Recovery Rotator Wrecker Tow Road Rescue Truck
HOWO 400HP 12 Wheel 50 Ton Recovery Rotator Wrecker Tow Road Rescue Truck
HOWO 400HP 12 Wheel 50 Ton Recovery Rotator Wrecker Tow Road Rescue Truck
HOWO 400HP 12 Wheel 50 Ton Recovery Rotator Wrecker Tow Road Rescue Truck
HOWO 400HP 12 Wheel 50 Ton Recovery Rotator Wrecker Tow Road Rescue Truck
HOWO 400HP 12 Wheel 50 Ton Recovery Rotator Wrecker Tow Road Rescue Truck
HOWO 400HP 12 Wheel 50 Ton Recovery Rotator Wrecker Tow Road Rescue Truck
HOWO 400HP 12 Wheel 50 Ton Recovery Rotator Wrecker Tow Road Rescue Truck
HOWO 400HP 12 Wheel 50 Ton Recovery Rotator Wrecker Tow Road Rescue Truck
HOWO 400HP 12 Wheel 50 Ton Recovery Rotator Wrecker Tow Road Rescue Truck
HOWO 400HP 12 Wheel 50 Ton Recovery Rotator Wrecker Tow Road Rescue Truck
HOWO 400HP 12 Wheel 50 Ton Recovery Rotator Wrecker Tow Road Rescue Truck
Specifications
Brand Name :
HOWO
Model Number :
HOWO
Certification :
ISO9001, ISO14001, OHSAS18001, CCC
Place of Origin :
China
MOQ :
1 UNIT
Price :
87000usd
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
10 unit per month
Delivery Time :
65 days after deposit
Packaging Details :
Nude
Truck Brand :
Sinotruk HOWO
Type :
Heavy Duty
Towing capacity :
50Ton
Name :
Road Rescue Truck
Description

HOWO 400HP 12 Wheel 50 Ton Recovery Rotator Wrecker Tow Road Rescue Truck


Chassis and Performance
Chassis: Sinotruk HOWO, 12 wheeler, 8x4 drive, heavy-duty truck.

Engine: 400HP (horsepower), WD615.47, Weichai WP12, diesel engine.

Capacity: 50 tons (or 50T), heavy-duty, rated towing weight, lifting capacity, underlift capacity.

Wheels/Axles: 12 wheels, dual front axles, dual rear axles, 9-ton front axle, 16-ton rear axle.

Transmission: Manual gearbox, 10 forward speeds, PTO (Power Take-Off).

Wrecker Body and Equipment
Wrecker Type: Rotator, rotary wrecker, 360-degree rotation, integrated wrecker, boom wrecker.

Lifting & Towing: Underlift, boom, wheel lift, hoisting system, telescopic boom.

Winch: Hydraulic winch, dual winches, 25-ton winch, steel cable, winch pulling power.

Stability: Outriggers, hydraulic outriggers, H-type outriggers.

Hydraulics: Hydraulic system, hydraulic pump, multi-way valve, control panel.


Applications and Use Cases


Heavy vehicle recovery

Roadside assistance

Emergency rescue

Accident clearance

Breakdown towing

Commercial vehicle towing (trucks, buses, trailers)

Highway rescue


Truck Body
Rear Tow system Maximum lifting mass (kg) (maximum static retraction with support/full extension) 25000/11800
Maximum lifting mass at full extension (kg) (maximum when traveling and retracted/fully extended) 12500/8300
Maximum effective length of support arm (mm) 3650
Telescopic stroke of support arm (mm) 1750
Lifting and loaded folding angle (°) -7～16
Folding angle (°) -7～92
The maximum distance between the fully extended fork mouth and the ground (mm) 1835
Crane system Maximum lifting mass (kg) 50000
Lifting capacity (kg) when fully retracted lifting angle 30° 18000
Lifting capacity at full extension lifting angle 30° (kg) 9000
Basic length of boom (mm) 5880
Cylinder telescopic stroke (mm) 6000
Maximum lifting height (mm) 12300
Maximum working radius (mm) 10710
Number of boom sections 3
Boom luffing angle (°) 0～60
Rotation angle (°) 360 continuous rotation
Winch Quantity (only) 2
Rated traction force of each one (kN) 200
Wire rope specifications 20-6x25Fi+IWR1870
Wire rope diameter (mm) ￠20
Wire rope length (m) 60
Minimum linear speed of wire rope (m/min) 5
Outrigger Front leg type Undermounted H-shaped front legs
Rear outrigger type L-shaped rear outrigger
Lateral span of front outrigger (mm) 6600
Lateral span of rear outriggers (mm) 4080
Longitudinal span of front and rear outriggers (mm)
5550

Established in Sep. 2004,Chengli Special Automobile Co., Ltd is an important branch of CLW group with registered capital 100,000,000 RMB(14
millions US Dollars) and total capital 6,000,000,000(840 millions US Dollars).

HOWO 400HP 12 Wheel 50 Ton Recovery Rotator Wrecker Tow Road Rescue Truck
Overseas Market
Trucks from Chengli Special Automobile Co., Ltd have been sold to more than 29 provinces in China and more than 80 overseas countries and regions in
Asia, Africa, South America, middle east and so on, such as Russia, Mongolia, Philippines, Vietnam, Cambodia, Myanmar, Laos, Kazakhstan, Uzbekistan,
Kyrghzstan, Tanzania, Zambia, Nigeria, Australia, Chile, Bolivia, Ethiopia, Sudan, Malaysia, Congo, El Salvador, Iraq, New Zealand, Chile, Bolivia, Argentina and also truck body for client drawing
