OEM Preheating Spiral Square Fin Tube Seamless Steel ASME SA213 TP317
OEM Preheating Spiral Square Fin Tube Seamless Steel ASME SA213 TP317
OEM Preheating Spiral Square Fin Tube Seamless Steel ASME SA213 TP317
OEM Preheating Spiral Square Fin Tube Seamless Steel ASME SA213 TP317
OEM Preheating Spiral Square Fin Tube Seamless Steel ASME SA213 TP317
OEM Preheating Spiral Square Fin Tube Seamless Steel ASME SA213 TP317
Specifications
Brand Name :
YUHONG
Model Number :
H Fin Tube
Certification :
ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001
Place of Origin :
China , Korea
MOQ :
1 PC
Price :
1 - 10000 USD
Payment Terms :
L/C, T/T
Supply Ability :
10000 Tons/Month
Delivery Time :
5 - 90 Days
Packaging Details :
Ply-Wooden Case + Iron Frame
Material Grade :
TP317
Standard :
ASME SA213 , ASTM A213
Material :
Carbon steel, Alloy steel and Stainless steel
Type of base pipe :
Seamless steel pipe
Type of fins :
Single H / Double H Type
Application :
Widely used for boiler, heat exchanger, condenser, refrigerator, economizer and other parts of heat industry.
Description
H Type Tube Finning Seamless Steel ASME SA213 TP317 Boiler Pressure Parts For Economizer
Product Specifications
Attribute Value
Material Grade TP317
Standard ASME SA213, ASTM A213
Material Carbon steel, Alloy steel and Stainless steel
Type of base pipe Seamless steel pipe
Type of fins Single H / Double H Type
Application Widely used for boiler, heat exchanger, condenser, refrigerator, economizer and other parts of heat industry.
Product Overview

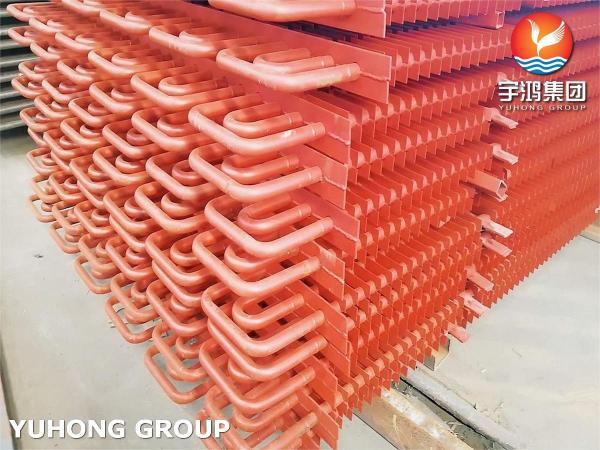

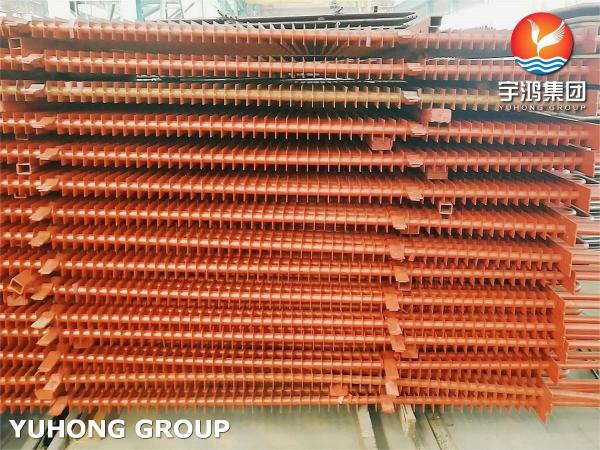

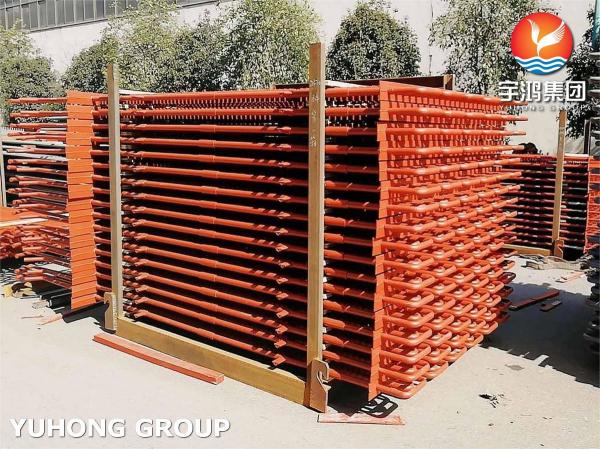

Seamless Steel ASME SA213 TP317 H Type Fin Tube is a specialized component designed for use in economizers within boiler pressure systems. These tubes are crucial for optimizing heat transfer, enhancing efficiency, and ensuring durability in high-temperature and corrosive environments.
Key Features
  • Material: Made from ASME SA213 TP317 stainless steel, offering superior corrosion resistance and high-temperature strength.
  • Seamless Construction: Ensures uniform strength, eliminating weak points associated with welded tubes.
  • H Type Fin Design: Increases surface area significantly, improving heat transfer efficiency.
  • Durability: Provides a long service life with minimal maintenance due to its robust material properties.
Technical Specifications
Chemical Composition
Grade Cr Ni Mo C Mn Si P S
TP317 18.0-20.0% 11.0-15.0% 3.0-4.0% 0.08% max 2.0% max 1.0% max 0.045% max 0.030% max
Mechanical Properties
Grade Tensile Strength Yield Strength Elongation Hardness
TP317 ≥ 205 MPa (30 ksi) ≥ 515 MPa (75 ksi) ≥ 35% in 50 mm (2 inches) ≤ 90 HRB
Applications
  • Economizers: Recover residual heat from exhaust gases, preheating the feedwater and improving overall thermal efficiency.
  • Heat Exchangers: Enhance energy recovery in power generation and industrial processes.
  • Industrial Boilers: Increase efficiency and reduce fuel consumption in various industrial applications.
