Specifications
Brand Name :
YUHONG
Model Number :
ASTM A403 WP321-S
Certification :
ABS, GL, DNV, NK, PED, AD2000, CCS, ISO 9001-2008
Place of Origin :
CHINA
MOQ :
100 KGS
Price :
YUHONG HOLDING GROUP CO., LTD
Payment Terms :
T/T,L/C
Supply Ability :
500 Ton Per Month
Delivery Time :
20-80 days
Packaging Details :
Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Specification :
ASTM A403
Material Grade :
WP321-S, 08X18H10T, 12X18H10T
Application :
Oil, Gas, Chemical, Petrochemical, Power, and other industries
Size :
4 inch
Material :
Stainless Steel
Shape :
180 Degree
Connection Type :
Butt Welded
Testing :

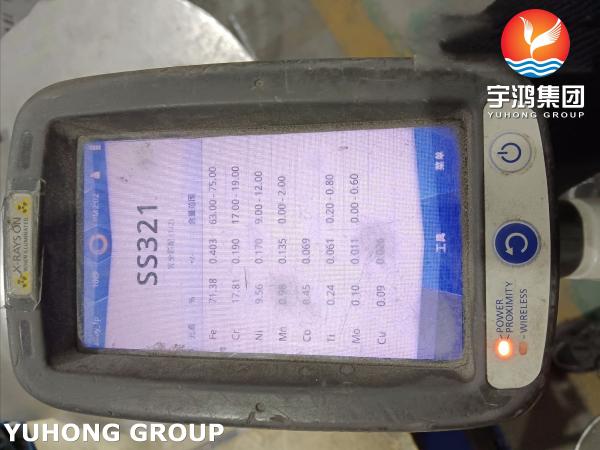

UT , PT , MT, PMI
Standard :
ANSI/ASME B16.9
Features :
Corrosion-resistant, High strength, Durable
Surface :
Polished
Description

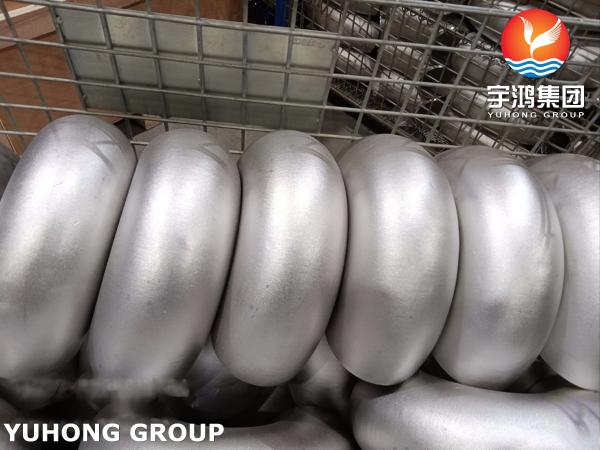

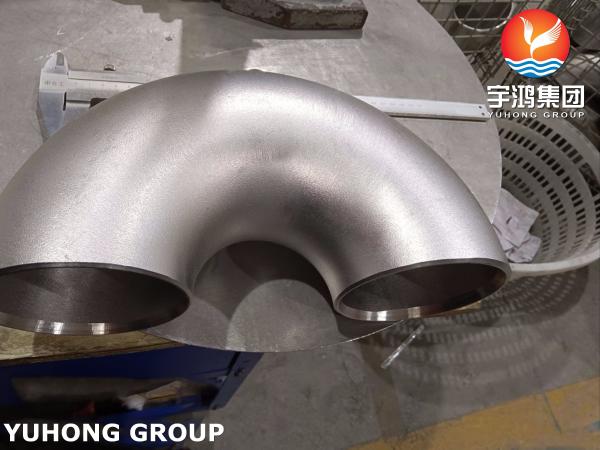

ASTM A403 WP321 Stainless Steel 180° Return Bends
High Performance Solution for Furnace and Corrosive Environments
Product Specifications
Attribute Value
Specification ASTM A403
Material Grade WP321-S, 08X18H10T, 12X18H10T
Application Oil, Gas, Chemical, Petrochemical, Power, and other industries
Size 4 inch
Material Stainless Steel
Shape 180 Degree
Connection Type Butt Welded
Testing UT, PT, MT, PMI
Standard ANSI/ASME B16.9
Features Corrosion-resistant, High strength, Durable
Surface Polished
Available Configurations
Type Radius Size Range
Short Radius R=1.0 x Nominal Dia. 1/2" - 24"
Customized As per requirement Available
Chemical Composition
Element C Mn P S Si Cr Ni
% ≤0.08 ≤2.00 ≤0.045 ≤0.03 ≤1.00 17-19 9-12
Mechanical Properties
  • Tensile Strength: ≥515 MPa
  • Yield Strength: ≥205 MPa
  • Elongation: ≥35%
  • Hardness: ≤187 HB
Manufacturing Process
  • Raw material inspection
  • Cold/Hot forming
  • Solution heat treatment
  • Surface finishing
  • NDT testing
  • Dimensional inspection
  • Quality control
Key Features
  • Excellent corrosion resistance
  • Superior high-temperature stability
  • Outstanding mechanical properties
  • Precise dimensional accuracy
  • Smooth surface finish
  • Enhanced titanium stabilization
Applications
  • Chemical processing equipment
  • Food processing systems
  • Pharmaceutical industry
  • Marine applications
  • Nuclear power plants
  • High-temperature heat exchangers
Quality Assurance
  • ISO 9001:2015 certified
  • PED 2014/68/EU approved
  • ASME certified facility
  • Full material traceability
  • Third-party inspection available
Frequently Asked Questions
Q: What is the maximum operating temperature?
A: Up to 816°C (1500°F) for continuous service
Q: Are custom specifications available?
A: Yes, we can manufacture according to customer specifications
Q: What are the standard surface treatments?
A: Pickled and passivated, additional treatments available upon request
