Specifications
Brand Name :
YUHONG
Model Number :
180 DEG. ELBOW
Certification :
ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001
Place of Origin :
China , Korea
MOQ :
1 PC
Price :
1 - 10000 USD
Payment Terms :
L/C, T/T
Supply Ability :
10000 Tons/Month
Delivery Time :
5 - 90 Days
Packaging Details :
Ply-Wooden Case
Material :
UNS S32205
Standard :
ASTM A815
Radius :
LR ( Long Radius ) , SR ( Short Radius )
Testing :
UT , PT , PMI
Size :
1/2 inch - 98 inch
Application :
Heat Exchanger , Boiler , Furnace , Fired Heater , Convection Section
Description

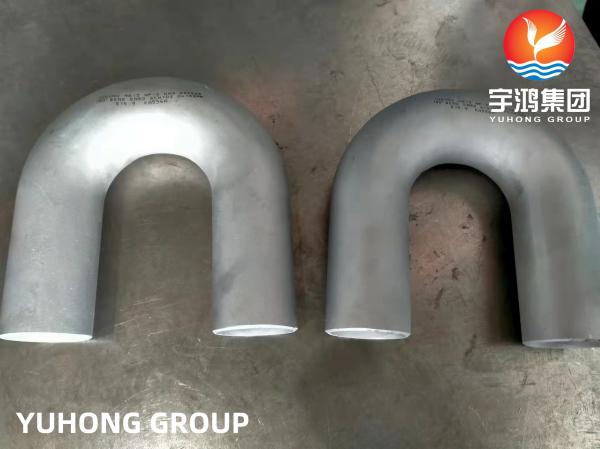

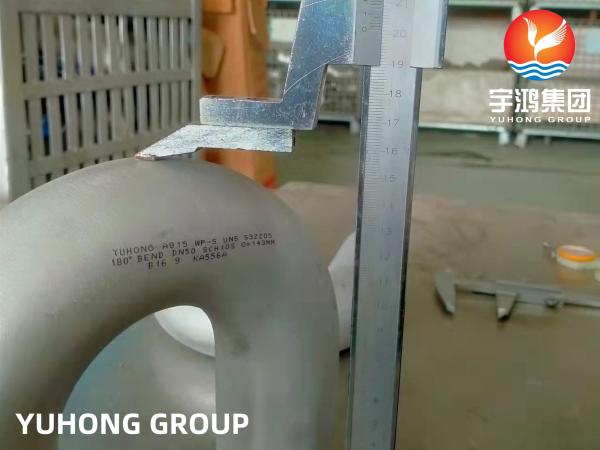

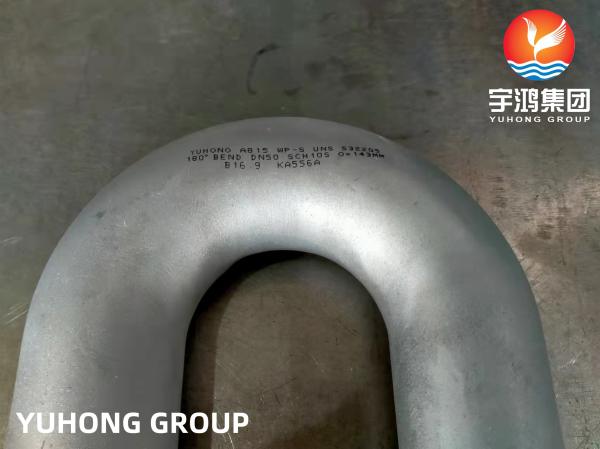

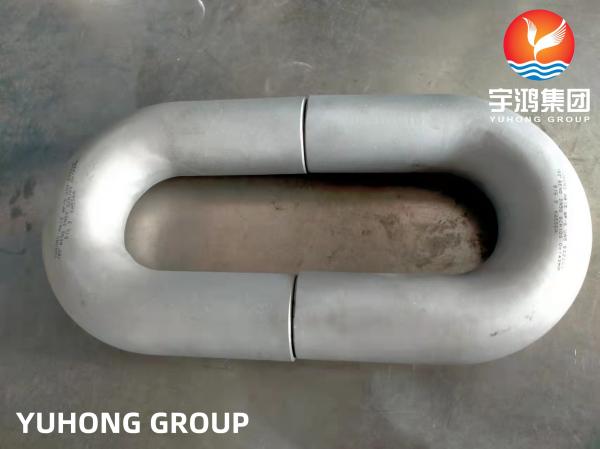

ASTM A815 UNS S32205 Duplex Steel U Bend Return for Heat Exchangers & Boilers
Product Specifications
Attribute Value
Material UNS S32205
Standard ASTM A815
Radius LR (Long Radius), SR (Short Radius)
Testing UT, PT, PMI
Size 1/2 inch - 98 inch
Application Heat Exchanger, Boiler, Furnace, Fired Heater, Convection Section
Product Description

ASTM A815 UNS S32205 Duplex Stainless Steel Pipe U Bends are available in welded or seamless construction, manufactured from corrosion-resistant, high-strength duplex steel material capable of withstanding elevated temperatures.

These U bends offer superior tensile strength and enhanced resistance to pitting and crevice corrosion compared to standard duplex steel grades. The higher molybdenum content provides exceptional durability, making them ideal for harsh operating environments while maintaining product quality.

Equivalent Grades
STANDARD UNS WERKSTOFF NR.
Duplex 2205 S31803 / S32205 1.4462
Technical Specifications
Dimensions ASME B16.28, MSS-SP-43, ASME/ANSI B16.9, BS4504, BS10, BS1560
Thickness SCH10 - SCH XXS available with NACE MR 01-75
Sizes DN15-DN1200
Connection Welding
Bending Radius R=2D, 3D, 5D, 6D, 8D, 1D, 10D or Custom
Manufacturing Process Press, Forge, Push, Cast
Types Tees, Crosses, Reducers, Elbows, Stub Ends, Pipe Bends, End Caps
Chemical Properties
C Mn Si N P Cr Fe Ni S Mo
0.03 max 2 max 1 max 0.8 to 0.2 0.03 max 21 to 23 63.54 min 4.5 to 6.5 0.02 max 2.5 to 3.5
Mechanical Properties
Density Melting Point Yield Strength Tensile Strength Elongation
7800 kg/m3 1350 °C (2460 °F) 80000 Psi, 550 MPa 116000 Psi, 800 MPa 15 %
Applications
  • Plumbing Systems
  • Oil and Gas Pipelines
  • Chemical Industry
  • Water Supply Systems
  • Fabrication Industry
  • Food Processing
  • Structural Piping
  • Petroleum Industry
  • Power Sector
  • Metallurgy Industry
  • Construction Industry
  • Shipbuilding
