50μm Red CPE Base Film with Excellent Chemical Resistance for Lamination and Coating, also suitable for industrial packaging, surface protection and composite applications.
50μm Red CPE Base Film with Excellent Chemical Resistance for Lamination and Coating, also suitable for industrial packaging, surface protection and composite applications.
50μm Red CPE Base Film with Excellent Chemical Resistance for Lamination and Coating, also suitable for industrial packaging, surface protection and composite applications.
50μm Red CPE Base Film with Excellent Chemical Resistance for Lamination and Coating, also suitable for industrial packaging, surface protection and composite applications.
50μm Red CPE Base Film with Excellent Chemical Resistance for Lamination and Coating, also suitable for industrial packaging, surface protection and composite applications.
50μm Red CPE Base Film with Excellent Chemical Resistance for Lamination and Coating, also suitable for industrial packaging, surface protection and composite applications.
Specifications
Brand Name :
HSF
Model Number :
CPE50R
MOQ :
1000
Payment Terms :
T/T
Supply Ability :
50 tons per day
Delivery Time :
10 working days
Packaging Details :
Export Standard
Material :
LDPE or Blended PE
Color :
Red
Surface Finish :
double-sided glossy, one side matte one side glossy, or double-sided matte.
Thickness :
30μm~300μm
Web Width :
Up to 2600mm
Description

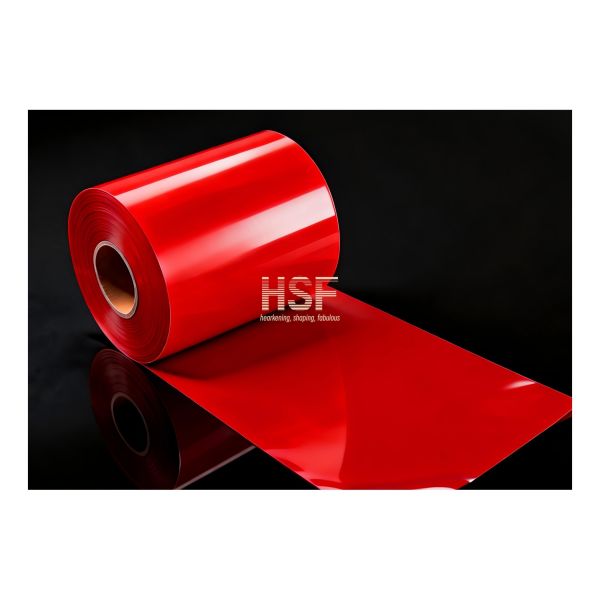

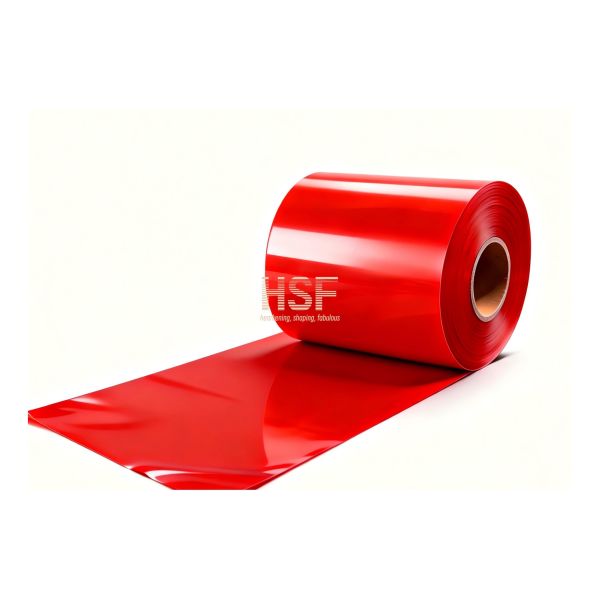

50μm Red Cast Polyethylene (CPE) Base Film
Premium 50μm red CPE base film offering excellent chemical resistance, low temperature toughness, and reliable processability for lamination, coating, and converting applications. Anti-static function available upon request.
Production Process
Manufactured using advanced precision cast extrusion technology. High-purity polyethylene resin is uniformly mixed with high-stability red masterbatch, melted at 160-180℃, extruded through a flat die, and cast onto polished cooling rollers for rapid crystallization. The process ensures consistent thickness, stable color, and excellent surface quality.
Key Features
  • 50μm gauge with strict thickness tolerance (±4%) for uniform performance
  • Bright, fade-resistant red color with excellent color fastness to light and heat
  • Balanced tensile strength and tear resistance with good flexibility
  • Excellent low-temperature toughness and smooth surface processability
  • Customizable anti-static, anti-slip, or surface treatment functions available
Product Advantages
  • Enhanced color identification for quick sorting and production line management
  • Cost-effective performance with premium mechanical properties
  • Excellent compatibility with lamination, coating, and printing processes
  • Non-toxic, odorless, and compliant with industrial safety standards
  • Reliable supply capacity for large-volume orders
Application Environment
Ideal for industrial packaging, surface protection, and composite materials. Suitable for automotive component wrapping, electronic product shielding, mechanical parts protection, and colored packaging lamination. Maintains stable performance in dry, normal temperature, and moderate low-temperature environments (≥-10℃). Widely used in manufacturing, logistics, and packaging industries.

50μm Red CPE Base Film with Excellent Chemical Resistance for Lamination and Coating, also suitable for industrial packaging, surface protection and composite applications.

50μm Red CPE Base Film with Excellent Chemical Resistance for Lamination and Coating, also suitable for industrial packaging, surface protection and composite applications.

Mechanical Properties
Test Item Unit Industry Standard Requirement Our Product Standard Actual Test Result Qualification
Total Thickness of Base Film μm 50±5 50±3 49.7 Qualified
Redness Uniformity - No obvious color difference, uniform coloring No color difference, uniform dispersion No color difference, uniform dispersion Qualified
Light Shielding Rate % ≥85.0 ≥88.0 88.7 Qualified
Tensile Strength (Longitudinal/Transverse) MPa ≥18/≥16 ≥20/≥18 20.5/18.6 Qualified
Elongation at Break (Longitudinal/Transverse) % ≥330/≥310 ≥350/≥330 357/338 Qualified
Heat Sealing Strength N/15mm ≥9.5 ≥11.5 12.1 Qualified
Surface Tension mN/m ≥36 ≥38 39.1 Qualified
Tear Resistance (Longitudinal/Transverse) N ≥14/≥12 ≥16/≥14 16.5/14.7 Qualified
Moisture Barrier Performance g/(m²*24h) ≤6.0 ≤5.5 5.3 Qualified
Oil Resistance - No obvious swelling, discoloration or deformation No swelling, no discoloration, no adhesion No swelling, no discoloration, no adhesion Qualified
Hardness (Shore D) HD 52±5 52±3 51.8 Qualified
Weather Resistance - No obvious fading, cracking or discoloration No fading, no cracking, no deformation No fading, no cracking, no deformation Qualified
Environmental Protection Performance - Complies with GB 4806.7-2016 Complies with GB 4806.7-2016 Complies with GB 4806.7-2016 Qualified
