100μm Green CPE Base Film with High Tensile Strength and Tear-resistant Properties for Industrial Packaging
100μm Green CPE Base Film with High Tensile Strength and Tear-resistant Properties for Industrial Packaging
100μm Green CPE Base Film with High Tensile Strength and Tear-resistant Properties for Industrial Packaging
100μm Green CPE Base Film with High Tensile Strength and Tear-resistant Properties for Industrial Packaging
100μm Green CPE Base Film with High Tensile Strength and Tear-resistant Properties for Industrial Packaging
100μm Green CPE Base Film with High Tensile Strength and Tear-resistant Properties for Industrial Packaging
Specifications
Brand Name :
HSF
Model Number :
CPE100G
Place of Origin :
China
MOQ :
1000kg
Payment Terms :
T/T
Supply Ability :
50 tons per day
Delivery Time :
10 working days
Packaging Details :
Export Standard
Material :
LDPE or blended PE
Color :
Green
Surface Finish :
double-sided glossy, one side matte one side glossy, or double-sided matte.
Thickness :
30μm~300μm
Web Width :
Up to 2600mm
Description

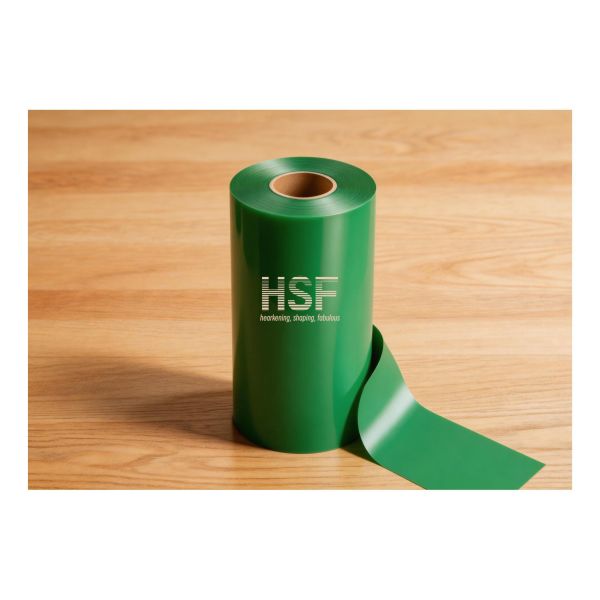

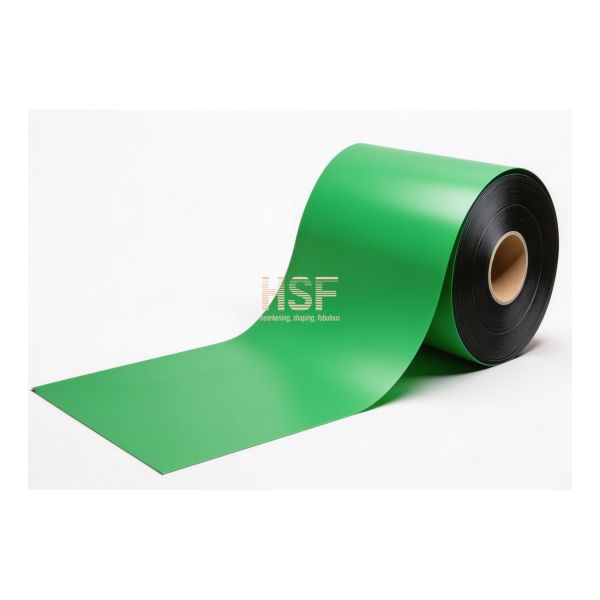

100μm Green CPE Base Film
High tensile strength, tear-resistant, puncture-resistant cast polyethylene film with smooth surface, excellent lamination compatibility, and optional anti-static properties for industrial packaging and surface protection applications.
Production Process
Precision cast extrusion process using high-grade LDPE resin homogeneously blended with light-fast green masterbatch. Melted at 170-190°C, extruded through high-precision flat die, and cast onto mirror-polished cooling rollers for controlled solidification. Strict thickness calibration, tension control, static neutralization, and precision edge trimming ensure consistent 100μm gauge with fade-resistant green color and blemish-free surface.
Key Features
  • ±4% thickness tolerance for uniform density and stable performance
  • Vibrant green color with exceptional heat and light fastness
  • Superior tensile strength, tear resistance, and puncture resistance
  • Excellent flexibility and low-temperature toughness (-10°C to 65°C)
  • Ultra-smooth surface for seamless lamination and coating compatibility
  • Optional anti-static treatment available
Product Advantages
Quick visual identification streamlines sorting processes in high-volume production lines. Perfect balance between thickness and flexibility outperforms thinner films in durability while remaining easy to process. Exceptional batch-to-batch consistency minimizes conversion waste. Cost-effective formulation delivers premium mechanical properties. Non-toxic, odorless, and compliant with global industrial standards.
100μm Green CPE Base Film with High Tensile Strength and Tear-resistant Properties for Industrial Packaging 100μm Green CPE Base Film with High Tensile Strength and Tear-resistant Properties for Industrial Packaging
Application Environment
Optimized for medium-heavy industrial scenarios including industrial packaging, heavy-duty surface protection, automotive component wrapping, mechanical part shielding, and colored composite lamination. Performs reliably in dry, normal-temperature environments and moderate low-temperature storage (≥-10°C). Maintains stability during high-speed slitting, lamination, and coating processes.
Technical Specifications
Test Item Unit Industry Standard Our Standard Actual Result Judgment
Total Thickness μm 100±10 100±6 99.4 Qualified
Green Color Uniformity - No obvious color difference Uniform dispersion, no fading Uniform masterbatch dispersion Qualified
Light Shielding Rate % ≥91.0 ≥93.0 93.5 Qualified
Tensile Strength (L/T) MPa ≥23/≥21 ≥25/≥23 25.2/23.4 Qualified
Elongation at Break (L/T) % ≥360/≥340 ≥380/≥360 384/366 Qualified
Heat Sealing Strength N/15mm ≥12.0 ≥14.0 14.5 Qualified
Surface Tension mN/m ≥36 ≥38 39.7 Qualified
Tear Resistance (L/T) N ≥17/≥15 ≥19/≥17 19.3/17.5 Qualified
Moisture Barrier Performance g/(m²·24h) ≤5.2 ≤4.7 4.5 Qualified
Oil Resistance - No swelling or discoloration No swelling, no discoloration No swelling, no discoloration Qualified
Hardness (Shore D) HD 56±5 56±3 55.8 Qualified
Weather Resistance - No fading or cracking Green color retention ≥97.8% Color retention 98.5% Qualified
Environmental Protection - GB 4806.7-2016 GB 4806.7-2016 Compliant with standards Qualified
