60μm Red CPE Base Film,With smooth surface, good processability and batch-to-batch consistency, it is suitable for lamination, coating and industrial converting.Anti-static function is available.
60μm Red CPE Base Film,With smooth surface, good processability and batch-to-batch consistency, it is suitable for lamination, coating and industrial converting.Anti-static function is available.
60μm Red CPE Base Film,With smooth surface, good processability and batch-to-batch consistency, it is suitable for lamination, coating and industrial converting.Anti-static function is available.
60μm Red CPE Base Film,With smooth surface, good processability and batch-to-batch consistency, it is suitable for lamination, coating and industrial converting.Anti-static function is available.
60μm Red CPE Base Film,With smooth surface, good processability and batch-to-batch consistency, it is suitable for lamination, coating and industrial converting.Anti-static function is available.
60μm Red CPE Base Film,With smooth surface, good processability and batch-to-batch consistency, it is suitable for lamination, coating and industrial converting.Anti-static function is available.
Specifications
Brand Name :
HSF
Model Number :
CPE60R
MOQ :
1000kg
Payment Terms :
T/T
Supply Ability :
50 tons per day
Delivery Time :
10 working days
Packaging Details :
Export Standard
Material :
LDPE or Blended PE
Color :
Red
Surface Finish :
double-sided glossy, one side matte one side glossy, or double-sided matte.
Thickness :
30μm~300μm
Web Width :
Up to 2600mm
Description

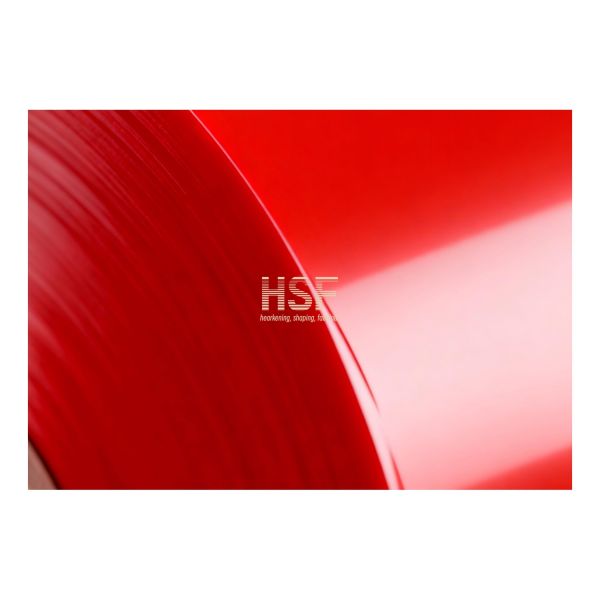

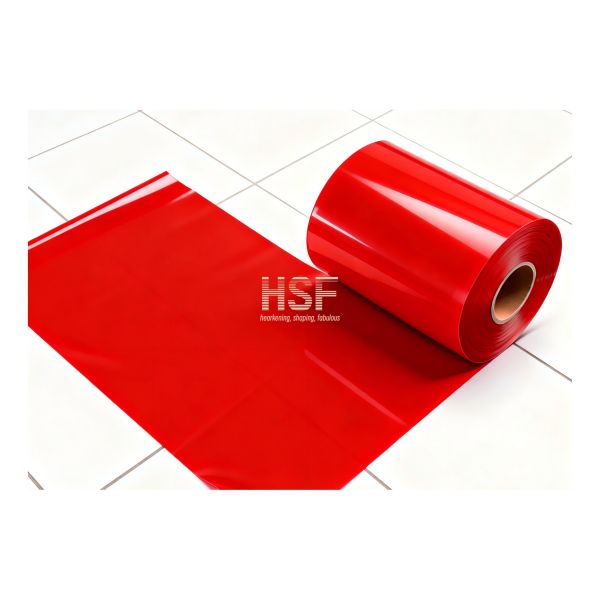

60μm Red CPE Base Film
This premium red cast polyethylene base film features a smooth surface, excellent processability, and consistent batch-to-batch performance. Ideal for lamination, coating, and industrial converting applications. Anti-static functionality available upon request.
Production Process
Manufactured using state-of-the-art precision cast extrusion technology, this film begins with high-grade LDPE resin blended with fade-resistant red masterbatch for uniform color dispersion. The compound undergoes controlled melting (165-185℃), precision extrusion through a flat die, and rapid solidification on mirror-polished cooling rollers. Final processing includes precision edge trimming, tension calibration, and static neutralization to ensure defect-free rolls with consistent gauge and surface quality.
Key Features
  • Strict thickness tolerance of ±4% for uniform performance
  • Vibrant, fade-resistant red color with exceptional color fastness
  • Balanced tensile strength and tear resistance
  • Excellent flexibility and low-temperature toughness (-10℃ to 60℃)
  • Ultra-smooth surface for superior lamination and coating compatibility
  • Customizable anti-static or anti-slip modifications available
Product Advantages
  • Vivid, consistent red color for quick product sorting and visual identification
  • Exceptional batch-to-batch consistency minimizes conversion waste
  • Cost-effective formulation with premium mechanical properties
  • Versatile processability for seamless industrial integration
  • Non-toxic, odorless, and compliant with global industrial standards
  • Scalable production capacity for reliable bulk supply
Application Environment
Optimized for industrial packaging, surface protection, and composite manufacturing applications. Excellent performance in automotive component wrapping, electronic part shielding, and colored protective packaging for mechanical parts. Maintains stability in dry, normal-temperature environments and moderate low-temperature storage (≥-10℃), supporting high-speed slitting, lamination, and coating processes.

60μm Red CPE Base Film,With smooth surface, good processability and batch-to-batch consistency, it is suitable for lamination, coating and industrial converting.Anti-static function is available.

60μm Red CPE Base Film,With smooth surface, good processability and batch-to-batch consistency, it is suitable for lamination, coating and industrial converting.Anti-static function is available.

Quality Performance Specifications
Test Item Unit Industry Standard Our Standard Actual Result Judgment
Total Thickness μm 60±6 60±4 59.6 Qualified
Redness Uniformity - No color difference, uniform coloring Uniform dispersion, no spots Uniform dispersion, no spots Qualified
Light Shielding Rate % ≥87.0 ≥90.0 90.6 Qualified
Tensile Strength (L/T) MPa ≥20/≥18 ≥22/≥20 22.4/20.5 Qualified
Elongation at Break (L/T) % ≥340/≥320 ≥360/≥340 365/347 Qualified
Heat Sealing Strength N/15mm ≥10.5 ≥12.5 13.2 Qualified
Surface Tension mN/m ≥36 ≥38 39.3 Qualified
Tear Resistance (L/T) N ≥15/≥13 ≥17/≥15 17.4/15.6 Qualified
Moisture Barrier g/(m²·24h) ≤5.8 ≤5.3 5.1 Qualified
Oil Resistance - No swelling, discoloration No swelling, discoloration No swelling, discoloration Qualified
Hardness (Shore D) HD 54±5 54±3 53.7 Qualified
Weather Resistance - No fading, cracking Redness retention ≥96.0% Redness retention 96.7% Qualified
Environmental Performance - GB 4806.7-2016 Food contact compliant Food contact compliant Qualified
All test results meet or exceed industry standards, demonstrating superior performance across mechanical, optical, and environmental parameters.
