180μm Brown CPE Base Film with Fade-Resistant Masterbatch and High Tensile Strength for Heavy-Duty Applications
180μm Brown CPE Base Film with Fade-Resistant Masterbatch and High Tensile Strength for Heavy-Duty Applications
180μm Brown CPE Base Film with Fade-Resistant Masterbatch and High Tensile Strength for Heavy-Duty Applications
180μm Brown CPE Base Film with Fade-Resistant Masterbatch and High Tensile Strength for Heavy-Duty Applications
180μm Brown CPE Base Film with Fade-Resistant Masterbatch and High Tensile Strength for Heavy-Duty Applications
180μm Brown CPE Base Film with Fade-Resistant Masterbatch and High Tensile Strength for Heavy-Duty Applications
Specifications
Brand Name :
HSF
Material :
LDPE or Blended PE
Color :
Brown
Web Width :
Up to 2600mm
Delivery Time :
10 working days
Place of Origin :
China
Payment Terms :
T/T
Surface Finish :
double-sided glossy, one side matte one side glossy, or double-sided matte.
Thickness :
30μm~300μm
Supply Ability :
50 tons per day
Packaging Details :
Export Standard
Model Number :
CPE180BRN
MOQ :
1000kg
Description

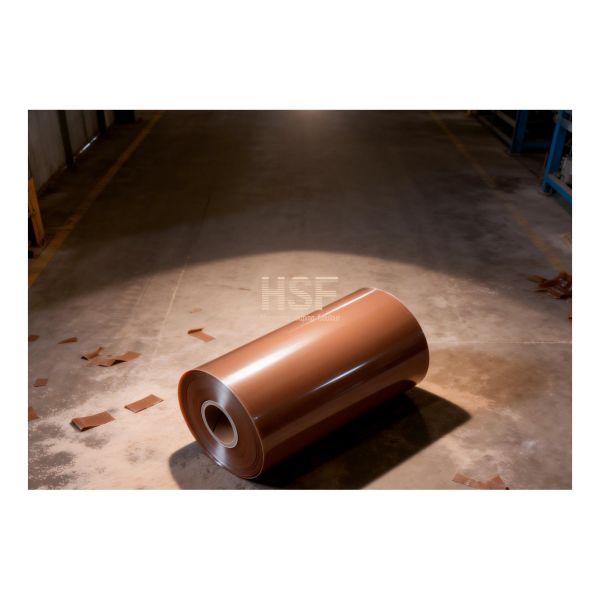

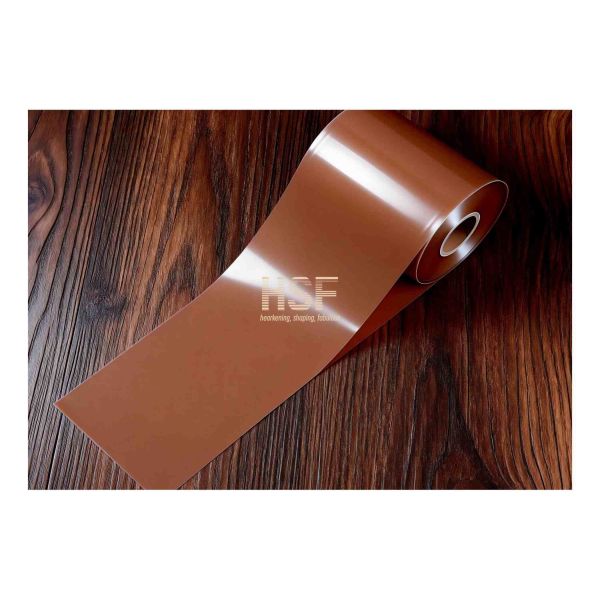

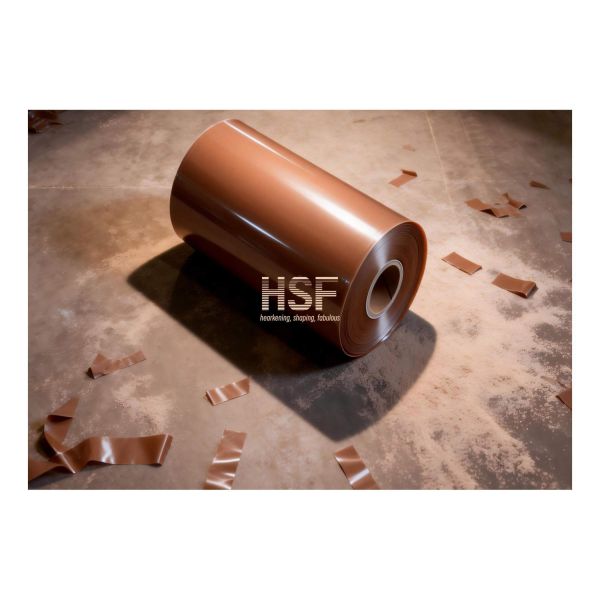

180μm Brown CPE Base Film
Product Overview
Ultra-heavy-duty 180μm brown cast polyethylene base film manufactured with high-purity resin and fade-resistant masterbatch. Features uniform gauge distribution, exceptional tensile strength, tear resistance, and smooth surface for optimal lamination compatibility. Optional anti-static treatment available.
Production Process
Manufactured via ultra-precision cast extrusion using high-purity LDPE resin blended with light-fast brown masterbatch. Melted at 175-195℃, extruded, solidified on mirror rollers, then trimmed and wound into tight rolls with stable 180μm gauge and smooth surface finish.
Key Features
  • ±4% thickness tolerance with uniform density
  • Vivid, color-stable brown with excellent light and heat fastness
  • Exceptional tensile, tear, and puncture resistance
  • Good flexibility and low-temperature toughness (-10℃ to 65℃)
  • Smooth surface optimized for lamination processes
  • Optional anti-static treatment available
Product Advantages
  • Superior durability and load-bearing capacity compared to thinner films
  • Uniform brown color enables quick identification and reduces inefficiencies
  • Excellent batch consistency minimizes production waste
  • Non-toxic and compliant with industry standards
  • Cost-effective solution for bulk supply requirements
180μm Brown CPE Base Film with Fade-Resistant Masterbatch and High Tensile Strength for Heavy-Duty Applications 180μm Brown CPE Base Film with Fade-Resistant Masterbatch and High Tensile Strength for Heavy-Duty Applications
Application Environment
Ideal for ultra-heavy-duty applications including heavy industrial packaging, large machinery protection, automotive shielding, and high-demand composite lamination. Maintains stability in dry, normal, and moderate low-temperature environments (≥-10℃) during processing.
Quality Performance Specifications
Test Item Unit Industry Standard Requirement Our Product Standard Actual Test Result Qualification
Total Thickness of Base Film μm 180±18 180±9 179.6 Qualified
Brown Color Uniformity - No obvious color difference, uniform brown No color difference, uniform dispersion No color difference, uniform masterbatch dispersion Qualified
Light Shielding Rate % ≥94.0 ≥96.0 96.2 Qualified
Tensile Strength (Longitudinal/Transverse) MPa ≥25/≥23 ≥27/≥25 27.1/25.2 Qualified
Elongation at Break (Longitudinal/Transverse) % ≥375/≥355 ≥395/≥375 396/376 Qualified
Heat Sealing Strength N/15mm ≥15.0 ≥17.0 17.2 Qualified
Surface Tension mN/m ≥36 ≥38 40.0 Qualified
Tear Resistance (Longitudinal/Transverse) N ≥20/≥18 ≥22/≥20 22.1/20.2 Qualified
Moisture Barrier Performance g/(m²·24h) ≤5.0 ≤4.5 4.3 Qualified
Oil Resistance - No obvious swelling, discoloration or deformation No swelling, no discoloration, no adhesion No swelling, no discoloration, no adhesion Qualified
Hardness (Shore D) HD 59±5 59±3 58.9 Qualified
Weather Resistance (UV Aging for 72h) - No obvious fading, cracking or discoloration No fading, no cracking, no deformation No fading, no cracking, no deformation Qualified
Environmental Protection Performance - Complies with GB 4806.7-2016 Complies with GB 4806.7-2016 Complies with GB 4806.7-2016 Qualified
