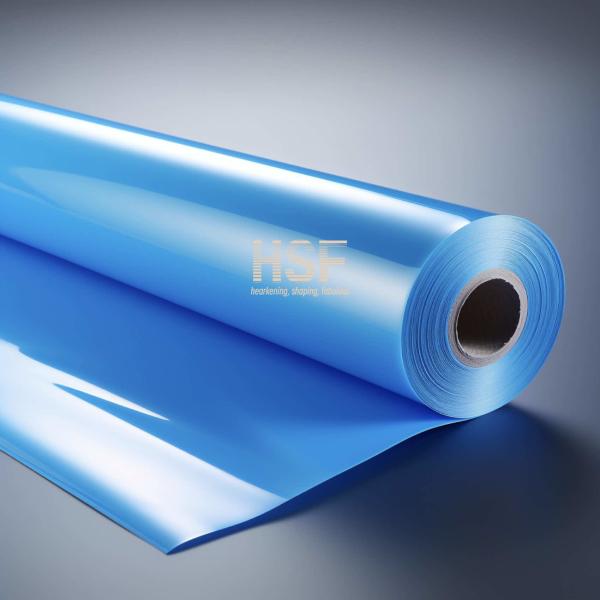

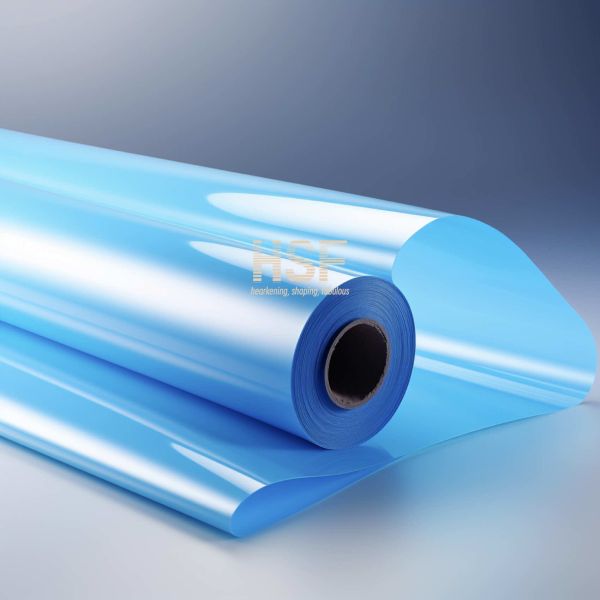

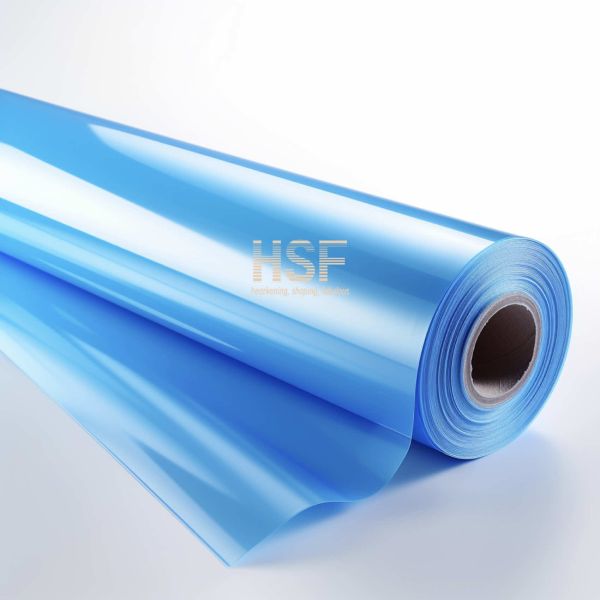

12μm Translucent Blue PET Fluorosilicone Coated Release Film with Chemical Resistance
12μm Translucent Blue PET Fluorosilicone Coated Release Film with Chemical Resistance
12μm Translucent Blue PET Fluorosilicone Coated Release Film with Chemical Resistance
12μm Translucent Blue PET Fluorosilicone Coated Release Film with Chemical Resistance
12μm Translucent Blue PET Fluorosilicone Coated Release Film with Chemical Resistance
12μm Translucent Blue PET Fluorosilicone Coated Release Film with Chemical Resistance
Specifications
Brand Name :
HSF
Model Number :
12BPF-05
Place of Origin :
China
MOQ :
10000 s.q.m
Payment Terms :
T/T,L/C
Supply Ability :
100000 kg per week
Delivery Time :
within 45 days depends on the reserve of raw materials
Packaging Details :
EPE film + PE wrap + Processed wooden pallet
Material :
Polyethylene terephthalate
Color :
Blue
Transparency :
Translucent
Thickness :
12 μm
Thickness deviation :
Plus minus 5 μm
Sleeve ID :
6"
Winding direction :
Silicone coated side wound in
Winding length :
6000 meters or so
Description
12μm Translucent Blue PET Fluorosilicone Coated Release Film
12 μm blue PET fluorosilicone coated release film offering excellent release properties with resistance to oils, solvents, and chemicals.
Product Applications
  • Electronics and Displays: Protective layers for electronic displays, touchscreens, and optical films with minimal viewing interference
  • Flexible Printed Circuits: Protective layer or liner during FPC manufacturing with clean release properties
  • Microelectronics and Semiconductor Packaging: Protective layer for delicate components with precise positioning
  • Medical Devices: Protective layer for medical components, instruments, and implants with visual differentiation
  • Optical Filters and Lenses: Protective layer for optical components with minimal interference
  • Specialty Labels and Decals: Base material for ultra-thin, blue-colored labels with clean release adhesion
  • Research and Development: Substrate or protective layer for experimental setups and prototypes
Technical Specifications
Test Item Unit Range
Fluorosilicone Release Side g/25mm 5-8
Backing Liner (Clear PET) mm 0.012 ± 0.002
Width mm 1040 ± 5
Length m 2000 ±200
Color - Transparent
Sub-Adhesion Rate % ≧85
Release Force Testing
Tape MY2G
Speed 300mm/min
Angle 180°
Instrument 5000g range tensile machine
Environment 30 min. at room temperature, after attaching
Subsequent Adhesion Rate Testing
Tape NITTO 31B
Aging Environment 70℃
Aging Time 20h
Time in a normal temperature 4h
Instrument 5000g range tensile machine
Storage Temperature 15-35℃ (in original packing status)
Storage Humidity 30-70% (in original packing status)
12μm Translucent Blue PET Fluorosilicone Coated Release Film with Chemical Resistance 12μm Translucent Blue PET Fluorosilicone Coated Release Film with Chemical Resistance
