36μm Thickness PET Fluorosilicone Coated Release Film with Chemical and High-Temperature Resistance
36μm Thickness PET Fluorosilicone Coated Release Film with Chemical and High-Temperature Resistance
36μm Thickness PET Fluorosilicone Coated Release Film with Chemical and High-Temperature Resistance
36μm Thickness PET Fluorosilicone Coated Release Film with Chemical and High-Temperature Resistance
36μm Thickness PET Fluorosilicone Coated Release Film with Chemical and High-Temperature Resistance
36μm Thickness PET Fluorosilicone Coated Release Film with Chemical and High-Temperature Resistance
Specifications
Brand Name :
HSF
Model Number :
36TPF-05
Place of Origin :
China
MOQ :
10000 s.q.m
Price :
$0.60 / s.q.m for quantities less than 50,000 square meters, on FOB Shanghai basis
Payment Terms :
T/T,L/C
Supply Ability :
100000 kg per week
Delivery Time :
within 45 days depends on the reserve of raw materials
Packaging Details :
EPE film + PE wrap + Processed wooden pallet
Material :
Polyethylene terephthalate
Color :
Natural
Transparency :
Clear
Thickness :
36μm
Thickness deviation :
Plus minus 5 μm
Sleeve ID :
6"
Winding direction :
Silicone coated side wound in
Winding length :
6000 meters or so
Description
36μm Fluorosilicone Release Film
36μm Clear PET fluorosilicone coated release film with excellent release properties and superior resistance to oils, solvents, and chemicals.
This specialized release film serves multiple industries including packaging, labeling, medical, automotive, and electronics applications where reliable release performance and chemical resistance are essential.
Key Advantages Over Standard Silicone Coated Films
Release Properties
Superior release performance with low coefficient of friction, providing exceptional release with various adhesives even in high-temperature and high-humidity environments.
Chemical Resistance
Excellent resistance to oils, solvents, and chemicals, making it ideal for harsh chemical environments.
Temperature Resistance
Wider temperature range performance, particularly beneficial for automotive and electronics applications.
Adhesion Properties
Excellent adhesion to various substrates including plastics, metals, and glass, with strong bonding to adhesives.
Primary Applications
  • High-temperature adhesive bonding and carrier applications
  • Automotive surface protection during painting and coating
  • Pressure-sensitive adhesive tape protection
  • Rubber glue and green glue protection during curing
  • Sensitive electronic component protection
  • Medical device contamination prevention
Product Specifications
Test Item Unit Range
Fluorosilicone Release Side g/25mm 5-8
Backing Liner (Clear PET) mm 0.036 ± 0.002
Width mm 1040 ± 5
Length m 2000 ±200
Color - Transparent
Sub-Adhesion Rate % ≧85
Testing Parameters
Release Force Testing
  • Tape: MY2G
  • Speed: 300mm/min
  • Angle: 180°
  • Instrument: 5000g range tensile machine
  • Environment: 30 min. at room temperature, after attaching
Subsequent Adhesion Rate Testing
  • Tape: NITTO 31B
  • Aging Environment: 70℃
  • Aging Time: 20h
  • Time in normal temperature: 4h
  • Instrument: 5000g range tensile machine
  • Storage Temperature: 15-35℃ (in original packing status)
  • Storage Humidity: 30-70% (in original packing status)

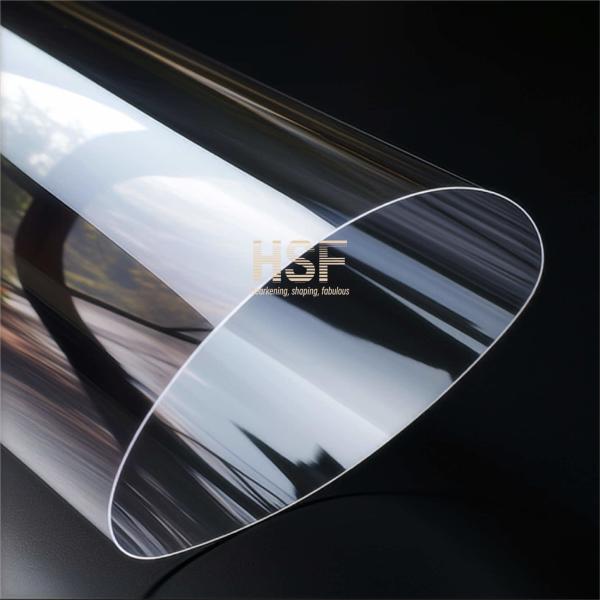

Product Images
36μm Thickness PET Fluorosilicone Coated Release Film with Chemical and High-Temperature Resistance 36μm Thickness PET Fluorosilicone Coated Release Film with Chemical and High-Temperature Resistance
Documentation
Download Digital Brochure (2023)
