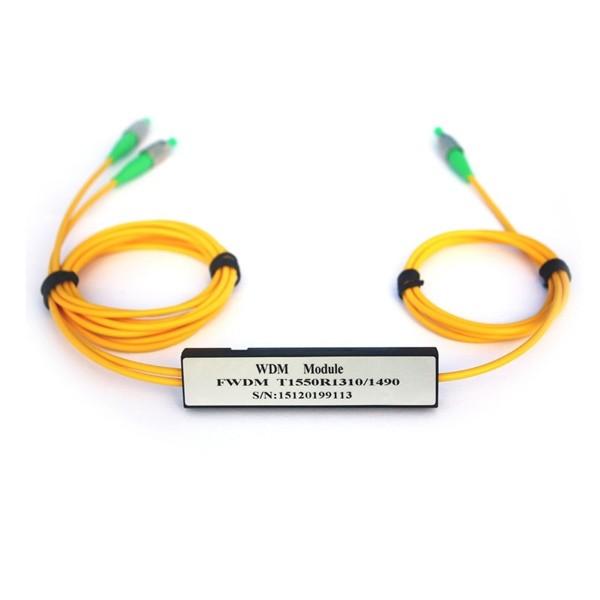

CATV Equipment WDM With Connectors FC Box Fwdm T1550nm R1310nm/1490nm
CATV Equipment WDM With Connectors FC Box Fwdm T1550nm R1310nm/1490nm
CATV Equipment WDM With Connectors FC Box Fwdm T1550nm R1310nm/1490nm
CATV Equipment WDM With Connectors FC Box Fwdm T1550nm R1310nm/1490nm
CATV Equipment WDM With Connectors FC Box Fwdm T1550nm R1310nm/1490nm
CATV Equipment WDM With Connectors FC Box Fwdm T1550nm R1310nm/1490nm
Specifications
Brand Name :
Yingda
Model Number :
FWDM 1X2 Fliter Module
Certification :
ISO
Place of Origin :
china
MOQ :
100pcs
Price :
1.1USD-4.58USD
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
20000pcs per month
Delivery Time :
7days
Packaging Details :
1pc/box, 10pcs/master box
reflection :
1310/1490nm
transmition :
1550nm
connector type :
SC/LC/ST/FC
fiber type :
SMF-28e
package :
blister box, 1pc/ box
Diameter :
2.0mm, 3.0mm
Network :
Wired LAN, 4g, 3G
Product Name :
FWDM splitter 1x2
Description

Description

FTTX Filter WDM module extensively used in EDFA, Raman amplifiers, WDM networks and fiber optics instrumentation is based on Thin Film Filter (TFF) technology. The device combines or separates light at different wavelengths in a wide wavelength range. It can expand the capacity of a single fiber to achieve bidirectional communication, so that widely used in optical network upgrade and expansion, or introduce new comprehensive business etc.
YINGDA Photonic provides filter-based wavelength division multiplexing (WDM) filter devices that are customized to the particular wavelength bands for your special applications. As you might know, G/E/PON system itself works on 1310/1490, so CATV signal here is delivered over same fiber using 1550nm, and FWDM is a place where all this get's "mixed".



Features

Low insertion loss

High isolation

High stability and reliability



Application

Fiber laser

Fiber amplifier

Testing equipment


The device combines or separates light at different wavelengths (1310nm/1490nm/1550nm) in a wide wavelength range.
It can expand the capacity of a single fiber to achieve bidirectional communication, so that widely used in optical network upgrade and expansion, or introduce new comprehensive optical transfer solutions etc.



Specification


Type

Rx1310/1490nm, Tx 1550nm FWDM

Transmission operating wavelength (nm)

1550±20nm

Reflection operating wavelength (nm)

1310±40nm; 1490±10nm

Isolation (dB)

Reflection port

15

Transmission port

30

Insertion loss (dB)

Reflection port

≤0.6

Transmission port

Transmission port

≤0.8

Insertion loss flatness (dB)

≤0.2

Directivity (dB)

>50

Return loss (dB)

>50

PDL (dB)

0.15

PMD (PS)

0.15

Maximum power (mW)

300

Working temperature (℃)

-40 ~+85

Storage temperature (℃)

-40 ~+85

Fiber type

Corning single mode SMF-28e, DS fiber or Flexcore

Pigtails length(m)

1.2 or customize

Port

Reflection port, Transmission port, COM port

Package

Customize


NOTE:

This indicator only corresponds to the product without connector. The indicator is subject to change without further notice.

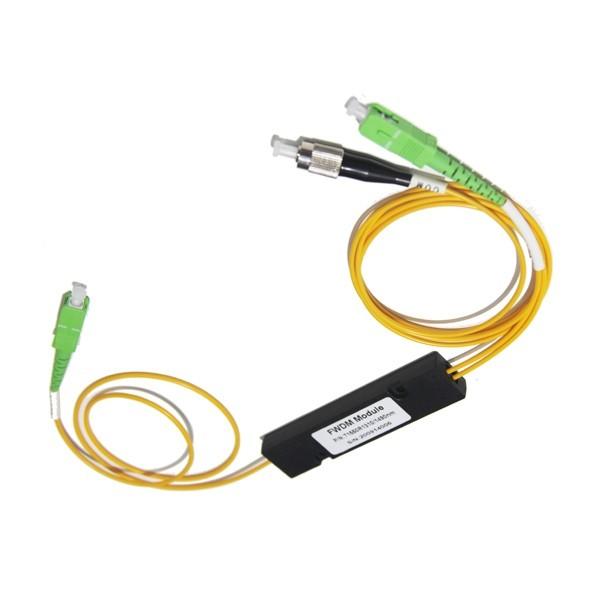

More products pictures:


CATV Equipment WDM With Connectors FC Box Fwdm T1550nm R1310nm/1490nmCATV Equipment WDM With Connectors FC Box Fwdm T1550nm R1310nm/1490nm

CATV Equipment WDM With Connectors FC Box Fwdm T1550nm R1310nm/1490nmCATV Equipment WDM With Connectors FC Box Fwdm T1550nm R1310nm/1490nm

Packing information:

CATV Equipment WDM With Connectors FC Box Fwdm T1550nm R1310nm/1490nm
