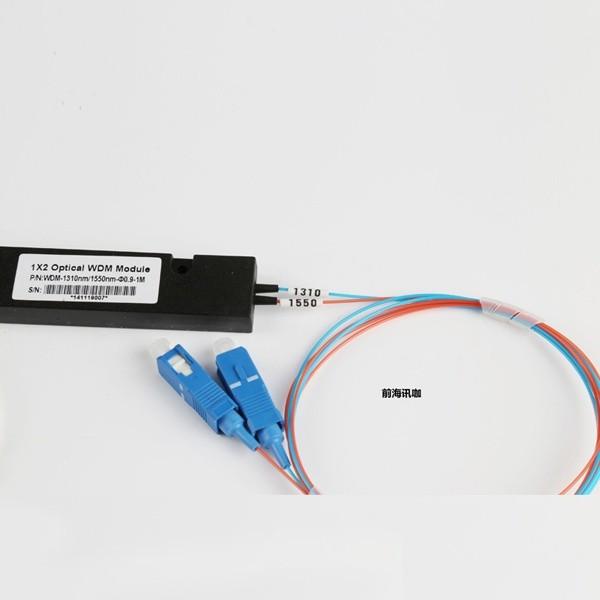

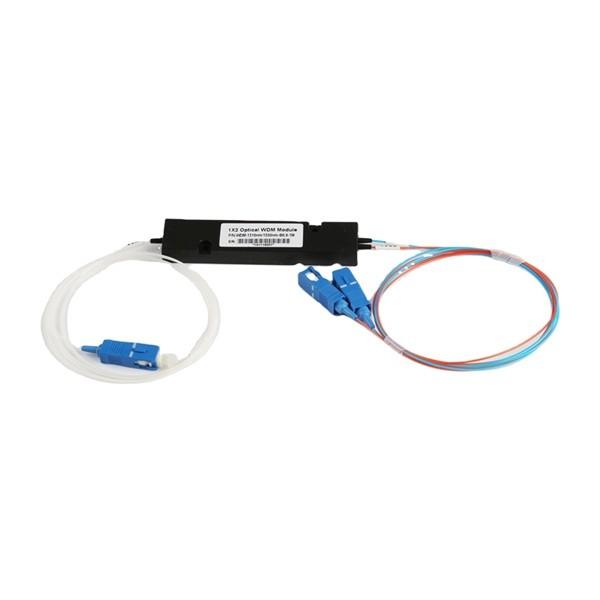

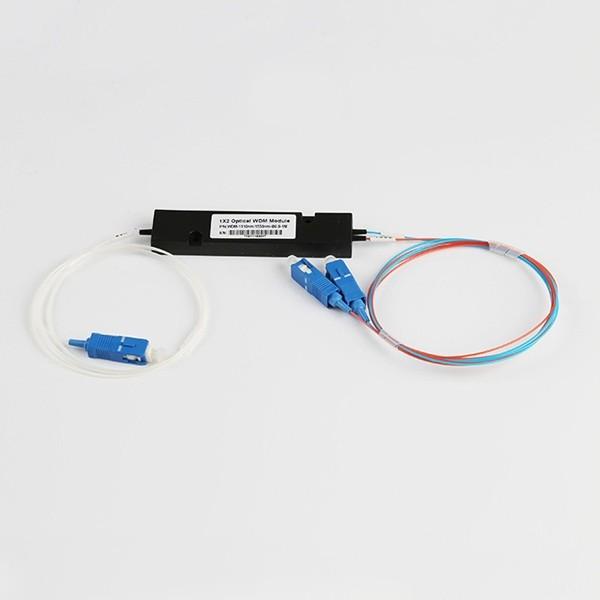

ABS Module WDM FWDM Coupler 1*2 With Connector SC UPC 0.9MM Cable
ABS Module WDM FWDM Coupler 1*2 With Connector SC UPC 0.9MM Cable
ABS Module WDM FWDM Coupler 1*2 With Connector SC UPC 0.9MM Cable
ABS Module WDM FWDM Coupler 1*2 With Connector SC UPC 0.9MM Cable
ABS Module WDM FWDM Coupler 1*2 With Connector SC UPC 0.9MM Cable
ABS Module WDM FWDM Coupler 1*2 With Connector SC UPC 0.9MM Cable
Specifications
Brand Name :
Yingda
Model Number :
FWDM 1X2-SC UPC 0.9mm ABS
Certification :
ISO
Place of Origin :
china
MOQ :
100pcs
Price :
1.1USD-4.58USD
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
20000pcs per month
Delivery Time :
7days
Packaging Details :
1pc/box, 10pcs/master box
reflection :
1310/1490nm
transmition :
1550nm
connector type :
SC/UPC SC/APC
fiber type :
SMF-28e
package :
blister box, 1pc/ box
Description

FWDM device s based on environmentally stable Thin Film Filters technology. The flitter wdm device combines or separates light at different wavelengths in a wide wavelength range.


Features

Low insertion loss

High isolation

High stability and reliability


Application

Fiber laser

Fiber amplifier

Testing equipment


The device combines or separates light at different wavelengths (1310nm/1490nm/1550nm) in a wide wavelength range.
It can expand the capacity of a single fiber to achieve bidirectional communication, so that widely used in optical network upgrade and expansion, or introduce new comprehensive optical transfer solutions etc.



Specification


Parameter FWDM 4/35 FWDM 5/35 FWDM 35/5
Pass Band Wavelength Range (nm) 1480~1500 1540~1560 1260~1360 & 1480~1500
Reflection Band1 Wavelength Range (nm) 1260 ~ 1360 1260 ~ 1360 1540~1560
Reflection Band1 Wavelength Range (nm) 1540~1560 1480~1500
Insertion Loss (dB) Reflect Channel ≤0.6
Pass Channel ≤0.8
Pass Band Rippler(dB) <0.3
Isolation (dB) Reflect Channel > 15
Pass Channel >30
Insertion Loss Temperature Sensitivity (dB/℃) <0.005
Polarization Dependent Loss (dB) <0.1
Polarization Mode Dispersion (ps) <0.1
Directivity (dB) >50
Return Loss (dB) >50
Maximum Power Handling (mW) 500
Operating Temperature (℃) -20 ~+70
Storage Temperature (℃) -40 ~+85
Package Dimension (mm) 1. Φ5.5 x L34(for 900um Loose tube)


2. Φ5.5 x L30(for bare fiber )

3. L90xW20xH9.5(for 2.0/3.0mm Cable)


NOTE:

For device with connectors, IL is 0.3dB higher, RL is 5dB lower, ER is 2dB lower. The default connector key is aligned to slow axis.



Package information:




ABS Module WDM FWDM Coupler 1*2 With Connector SC UPC 0.9MM Cable

ABS Module WDM FWDM Coupler 1*2 With Connector SC UPC 0.9MM Cable
