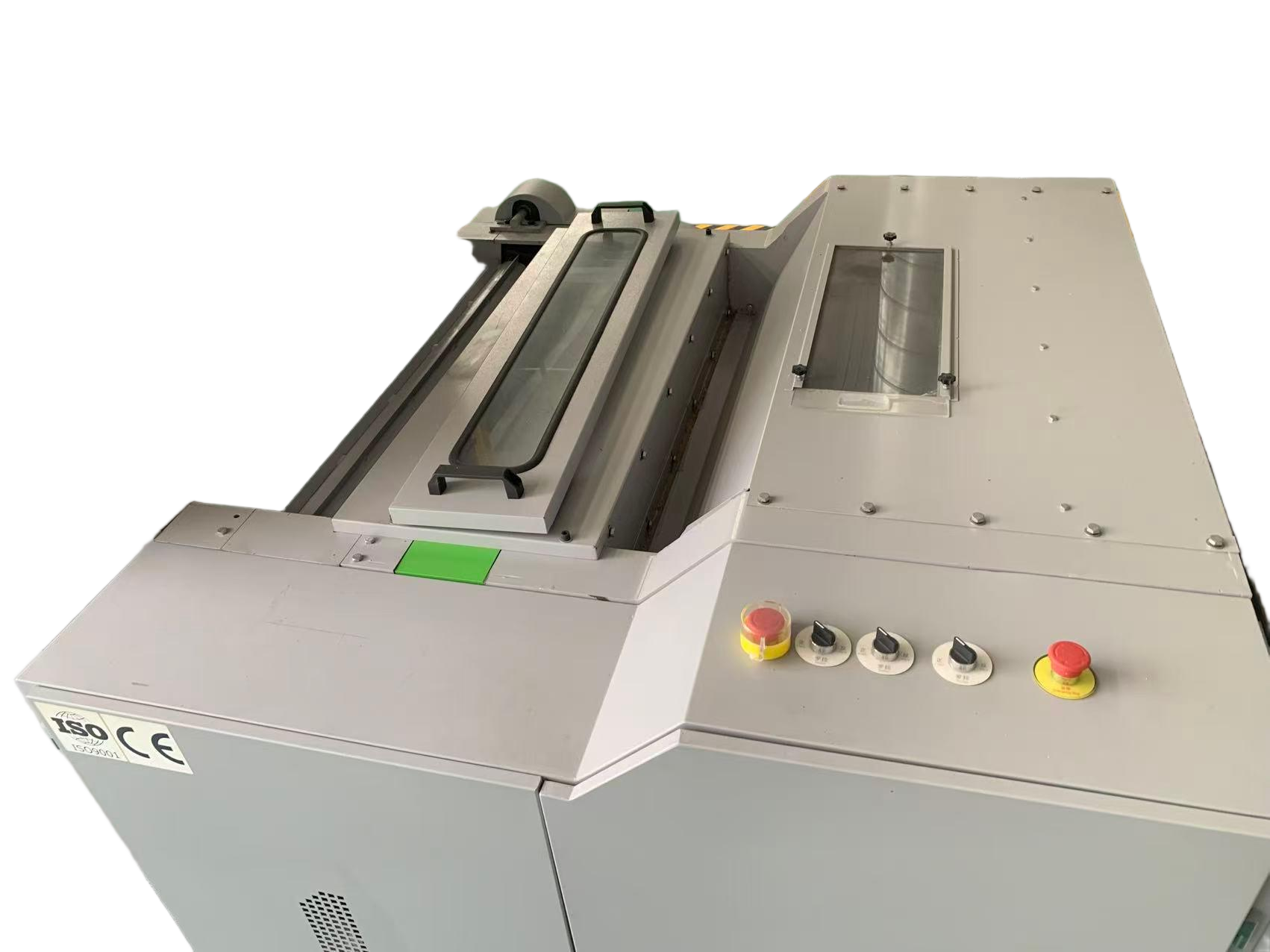

ALN-FS400 Fiber Carding and Cleaning Machine
ALN-FS400 Fiber Carding and Cleaning Machine
ALN-FS400 Fiber Carding and Cleaning Machine
ALN-FS400 Fiber Carding and Cleaning Machine
ALN-FS400 Fiber Carding and Cleaning Machine
ALN-FS400 Fiber Carding and Cleaning Machine
Specifications
Model Number :
FS-400
Working Power Supply :
380V / 50Hz
Production Capacity :
160-360kg/h
Brand Name :
ALN
Equipment Dimension :
1490×1750×1350mm
Fire Protection :
Smoke, temperature, flame detection
Payment Terms :
L/C,D/A,D/P,T/T
Installed Power :
11kW
Delivery Time :
30-35work days
Operating Power :
6.6kW
Description

Product Name: ALN-FS400 Fiber Carding & Cleaning Machine

Equipment Purpose: It decomposes fiber materials and removes impurities, effectively preparing and transferring fibers for the next carding process.

Equipment Dimension: 1490*1750*1350mm

Working Power Supply: 380V / 50Hz

Power: Installed rated power 11kW; actual operating power 6.6kW

Production Capacity: 160–360kg/h

Configuration: Equipped with variable frequency motor, automatic fire extinguishing system and automatic braking function

Technical Features:

  • High-strength rollers with quenching treatment for durable operation.
  • Needle-type opening roller ensures gentle fiber processing, low broken fiber and short fiber rate.
  • Integral high-strength steel plate side plates ensure high stability during long-time operation.
  • Intelligent fire protection and emergency braking system: equipped with smoke, temperature and flame detection. The machine automatically stops the running beater and sprays high-pressure ultra-fine fire extinguishing powder inside the equipment once a fire hazard is detected.
  • Adopts double rollers and special card clothing for cotton and linen fiber decomposition, equipped with impurity separation blades for efficient cleaning.
