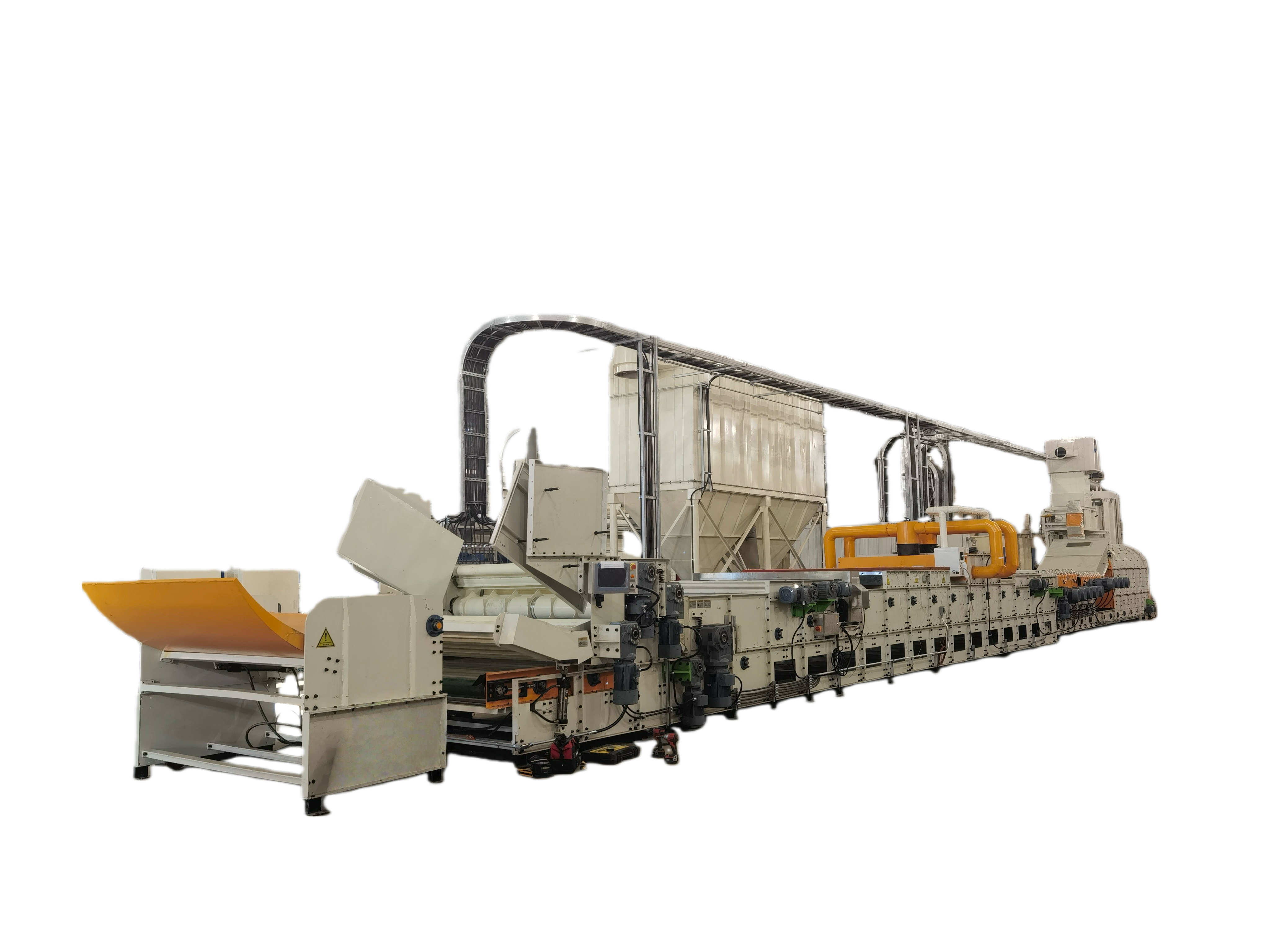

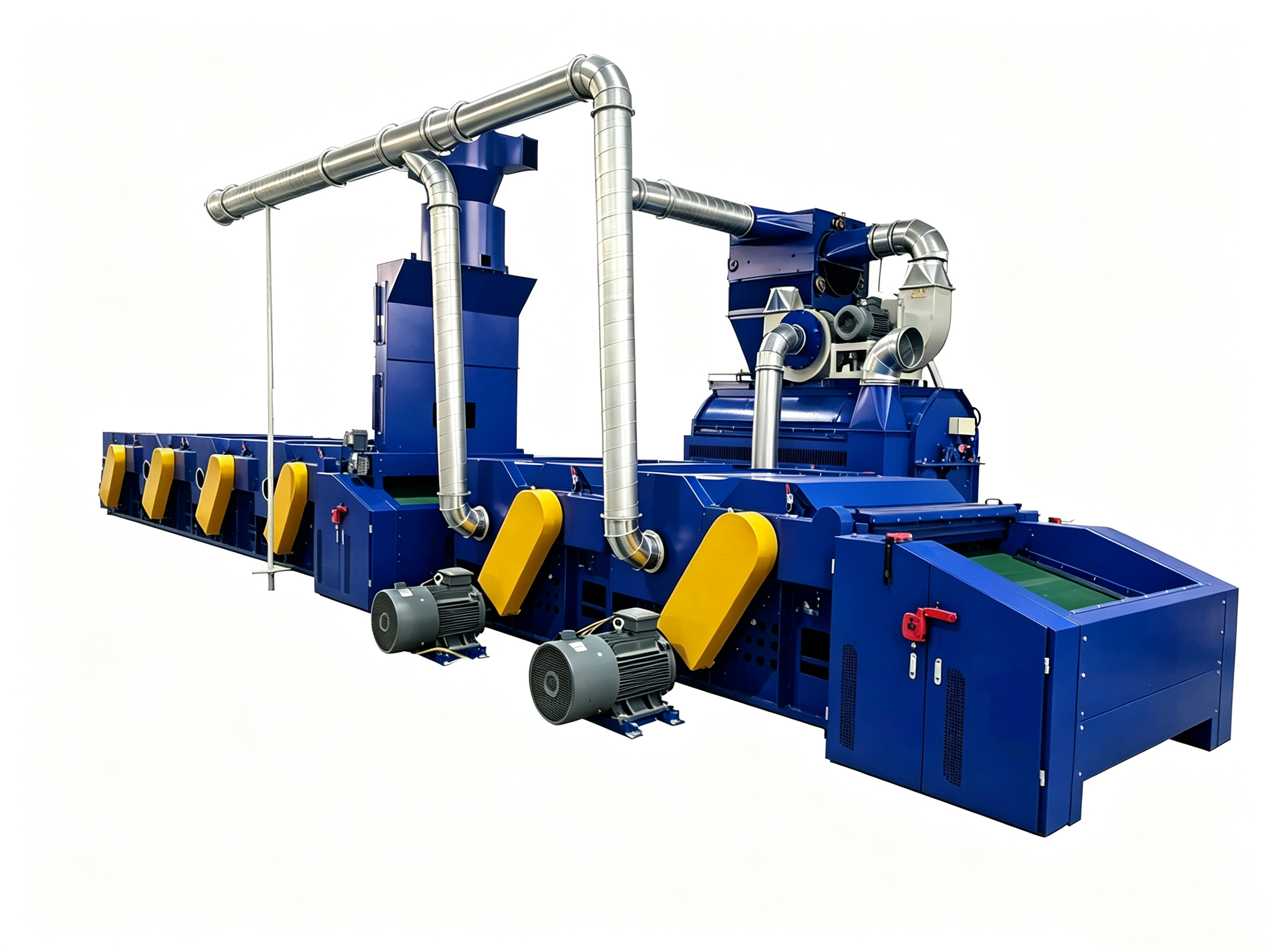

ALN-FS6150-4 Regenerated Fiber Carding Machine (Opener)
ALN-FS6150-4 Regenerated Fiber Carding Machine (Opener)
ALN-FS6150-4 Regenerated Fiber Carding Machine (Opener)
ALN-FS6150-4 Regenerated Fiber Carding Machine (Opener)
Specifications
Delivery Time :
30-40work days
Payment Terms :
T/T,D/P,D/A,L/C
Description

Product Name: ALN-FS6150-4 Regenerated Fiber Carding Machine
Pin roller: Ø600mm, working width 1500mm.

Other card clothing rollers: Ø600mm, working width 1500mm.

Equipment Purpose: It opens garment scraps. With different needle plates and card clothing, fibers are processed to meet requirements for nonwoven needle-punching. A strong magnetic metal detector is fitted at the feeding inlet.

Equipment Dimension (Single Unit): Length ≤7500mm, Width ≤2400mm

Working Power Supply: 380V / 50Hz

Power: Rated power ≤104KW (44kW, 22kW, 22kW, 15kW);

Actual operating power ≤62.4KW.

Rollers and conveyor belt with frequency conversion control.

Production Capacity: 800–1000kg/h (per machine)

Configuration: Automatic fire extinguishing system and automatic braking function.

Technical Parameters:
Effective working width: 1500mm
Taker-in roller diameter: 600mm
One pin roller and three needle rollers
