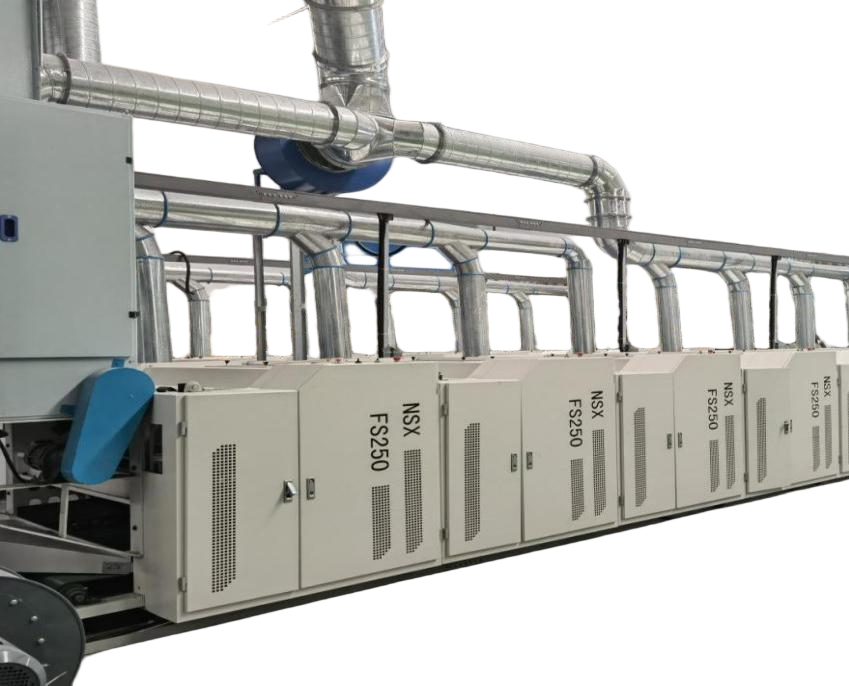

ALN‑FS250 Fine Carding Machine
ALN‑FS250 Fine Carding Machine
Specifications
Model Number :
FS250
Brand Name :
ALN
Payment Terms :
L/C,D/A,D/P,T/T
Delivery Time :
10-15work days
Description

Product Name: ALN‑FS250 Fine Carding Machine

Equipment Purpose: Cotton and bast fibers after high‑pressure atomization in previous process enter the FS250 station for fiber carding and impurity cleaning.

Overall Dimension: 1160 × 1710 × 1350 mm Remarks: Dimension of single unit

Power Supply: 380V

Capacity: 160‑360 kg/h

Configuration Requirements: Variable‑frequency motor, equipped with automatic fire suppression system

Parameters: Effective working width: 1000 mm Taker‑in roller diameter: 250 mm

Technical Features & Key Points:

  1. Adopt high‑strength rollers with quenching treatment.
  2. Pin‑type opening roller, avoids fiber damage and keeps low short‑fiber content.
  3. Integral high‑strength steel plate frame for high stability.
  4. Equipped with automatic brake and automatic fire suppression system. Detects hazards via smoke, temperature and flame sensors. In case of fire emergency, the running beater will brake automatically, and high‑pressure ultra‑fine dry powder will be sprayed into equipment chamber for fire extinguishing.
  5. Explosion‑proof motor
