1x32 Fiber Optic Splitter ABS package
1x32 Fiber Optic Splitter ABS package
1x32 Fiber Optic Splitter ABS package
1x32 Fiber Optic Splitter ABS package
Specifications
Brand Name :
CY COM
Model Number :
PLC Splitter
Certification :
ISO9001:2015, SGS, ROSH
Place of Origin :
Shenzhen China
MOQ :
20pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20K/ Month
Delivery Time :
8-9 working days
Packaging Details :
plastic box or Individual gift carton box
Type :
1*2 1*4 1*8 1*16 1*32
Package Type :
ABS Module
Fiber Module :
9/125 um SMF-28e or customer appoint
Fiber Connector :
SC/LC/FC/ST
Insertion Loss :
16.5dB
Input/Output Fi :
0.9mm, 2.0mm, 3.0mm
Description

Factory can product 1*2 1*4 1*8 1*16 1*32 ABS box type PLC Splitter with connector and without connector

Description:

CY COM offers a variety of ABS box and cassette type splitter modules and products. PLC Splitter Modules are available in the form of either plastic module cassette (an ABS box) with ruggedized fiber jackets of 2mm and up to 3mm, or LGX metal box for plug and play splitter applications.

Customized designs are also available for customer needs, call or email us about anything you need that you don't see here. The PLC splitter family features the whole series of 1 x N and 2 x N splitter boxes and modules that are tailored for specific applications.

All splitters provide excellent optical performance and reliability that meet GR-1221-CORE and GR-1209-CORE specifications.Customized designs are also available for customer needs, call or email us about anything you need that you don't see here.

Options:

1x2, 1x4, 1x8, 1x16, 1x32, 1x64 splits

2x2, 2x4, 2x8, 2x16, 2x32, 2x64 splits

Unconnectorized

Fiber jacketing outside boxes 2mm and up to 3mm

ABS box type or inside metal box/module cassette type

SC/UPC, SC/APC, LC/UPC, LC/APC, FC/UPC, FC/APC, ST/UPC connector options

Custom connector configurations and combinations

1x32 ABS Box Moudle PLC Splitter Applications:

Fiber to The Point (FTTX)

Fiber to The Home (FTTH)

Passive Optical Networks (PON)

Gigabit Passive Optical Networks (GPON)

Local Area Networks (LAN)

Cable Television (CATV)

Test Equipment

1x32 ABS Box Moudle PLC Splitter Features:

Low insertion loss

Low Polarization Dependent Loss

Excellent Environmental Stability

Excellent Mechanical Stability

Telcordia GR-1221 and GR-1209

1x32 ABS Moudle PLC Splitter excludes connector loss

TYPE 1*32
Fiber Type 9/125 um SMF-28e or customer appoint
Operating Wavelength(nm) 1260~1650
Insertion Loss(dB) Typical 16.2
Max 17
Loss Uniformity(dB) Max 2
Polariation Dependent Loss(dB) Max 0.3
Directivity(dB) ≥55
Return Loss (dB) UPC:50 APC:55
Operating Temperature (°C) -40~+85 Storage Temperature (°C)

1x32 ABS Moudle PLC Splitter includes connector loss

TYPE 1*32
Fiber Type 9/125 um SMF-28e or customer appoint
Operating Wavelength(nm) 1260~1650
Insertion Loss(dB) Typical 16.5
Max 17.5
Loss Uniformity(dB) Max 2
Polariation Dependent Loss(dB) Max 0.3
Directivity(dB) ≥55
Return Loss (dB) UPC:50 APC:55
Operating Temperature (°C) -40~+85 Storage Temperature (°C)

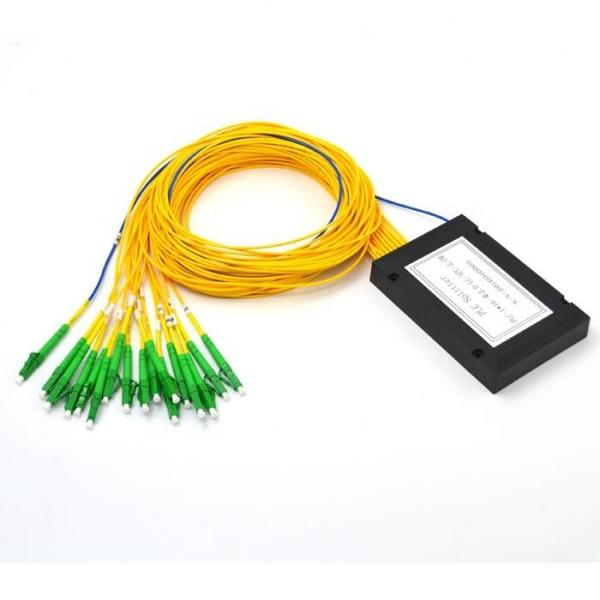

ABS PLC Splitter with LC/APC Connectors:

1x32 Fiber Optic Splitter ABS package

Our ABS Box type Fiber Optical PLC Splitter Packing way :

1x32 Fiber Optic Splitter ABS package1x32 Fiber Optic Splitter ABS package1x32 Fiber Optic Splitter ABS package
