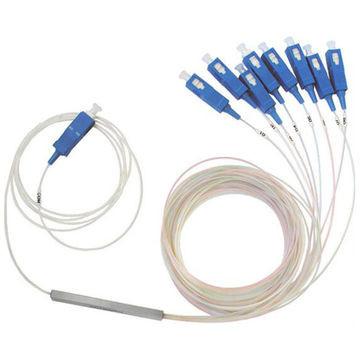

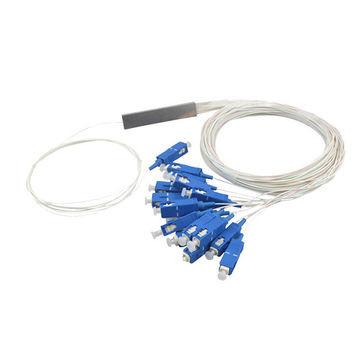

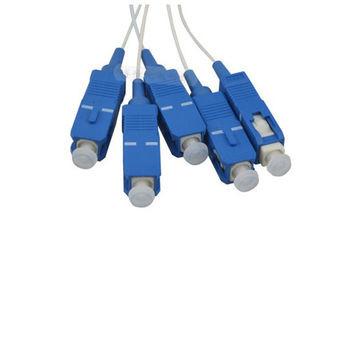

UPC Fiber Optic Splitter Steel tube package
UPC Fiber Optic Splitter Steel tube package
UPC Fiber Optic Splitter Steel tube package
UPC Fiber Optic Splitter Steel tube package
UPC Fiber Optic Splitter Steel tube package
UPC Fiber Optic Splitter Steel tube package
Specifications
Brand Name :
CY COM
Model Number :
PLC Splitter
Certification :
ISO9001:2015, SGS, ROSH
Place of Origin :
Shenzhen China
MOQ :
20pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20K/ Month
Delivery Time :
8-9 working days
Packaging Details :
plastic box or Individual gift carton box
Product name :
Fiber Optic PLC Splitter
Package Type :
Steel Tube,Mini Type
Type :
FTTx Solutions
Fiber Connector :
SC/APC SC/UPC
Pigtail Length :
1M
Materials :
PVC ,LSZH,OFNR
Description

1*4 1*8 1*16 FTTH Mini Fiber Optical splitter SC APC/UPC Single mode

Description:

PLC Splitter means planar light-wave circuit splitter, which is based on planar light wave technology, widely used in FTTX,EPOM,BPON,GPON .We launched 1xN,2XN PLC splitter with consistent performance, low optical Insertion loss, low polarization dependent Loss, high reliability and stability , superior environmental and mechanical characteristics, and fast installation. They also enable more effective monitoring and management of fiber optical networks. All wavelengths (1260-1620nm) are not sensitive. And our products meet Telcordia 1209,1221 standard ,ROHS.
We have unique competitive advantages in our PLC product platform by leveraging our strong expertise in fiber array block fabrication, our partnership with foundry service providers, and our reliable packaging technologies. Our splitters are tested based on the strictest standards of the industry, and we
guarantee quality, turnaround and competitive pricing.
The PLC splitter we offer are:1x2,1x4,1x8,1x16,1x32,1x64,2x4,2x8,2x16,2x32,2x64

Characteristics:

Good uniformity and low insertion loss
Low Polarization Dependent Loss
Excellent Environmental Stability
Excellent Mechanical
Stability Telecordia GR-1221 and GR-1209
Components through TLC-Certified, Conform to YD1117-2001

Application:
Fiber to the point (FTTX)
Fiber to the home (FTTH)
Passive optical networks(PON)
Local area networks (LAN)
Cable television (CATV)
Test equipment

Parameters


Type		 1x2 1×4 1×8 1×16 1×32 1×64
Operating wavelength(nm) 1260-1650
Insertion loss (dB) Typical 3.6 7.2 10.5 13.5 17 19.5
Maximum 4 7.5 11 14 17.2 21
Uniformity (dB) Typical 0.4 0.5 0.6 1 1 2
Maximum 0.6 0.6 0.8 1.2 1.5 2.5
Polarization Dependent Loss (dB) Typical 0.1 0.1 0.15 0.2 0.2 0.2
Maximum 0.15 0.15 0.25 0.3 0.3 0.3
Wavelength dependent loss (dB) Typical 0.1 0.1 0.15 0.3 0.3 0.3
Maximum 0.2 0.3 0.3 0.5 0.5 0.5
Return loss (dB) Minimum 55/50
Directivity (dB) Minimum 55
Operating temperature (℃) -20 to 85
Storage temperature (℃) -40 to 85
Optical fiber type SMF-28 Or customer required
Optical fiber length (m) 1.2 or customize

UPC Fiber Optic Splitter Steel tube package
UPC Fiber Optic Splitter Steel tube package
UPC Fiber Optic Splitter Steel tube packageUPC Fiber Optic Splitter Steel tube package
