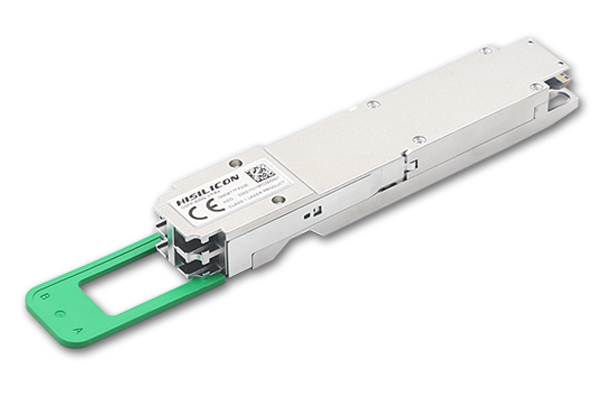

transceiver module OSFP 800G 2 x FR4 for applications in data centers and cloud networks
transceiver module OSFP 800G 2 x FR4 for applications in data centers and cloud networks
Specifications
Brand Name :
CY COM
Model Number :
OSFP 800G 2 x FR4
Certification :
ISO9001:2015, ISO14001:2015, ROSH
Place of Origin :
Shenzhen,China
MOQ :
10PCS
Payment Terms :
T/T, Western Union
Supply Ability :
50k/Month
Delivery Time :
5-8 days
Packaging Details :
Plastic box and Carton box
Form Factor: :
OSFP
Transceiver: :
2 x FR4
Interface: :
LC
Media: :
SMF
Reach/km: :
2km
Power Consumption/W: :
17
Temperature/℃: :
0 to 70
Description
transceiver module OSFP 800G 2 x FR4 for applications in data centers and cloud networks
Description
OM3877FX200 is a transceiver module designed for use in 800 Gigabit links on up
to 2 km. It is well-suited for applications in data centers and cloud networks. It is
compliant with 100G Lambda MSA standard and CMIS 5.2. Digital diagnostic
functions are available via the I2C interface. This module can convert 8-channel
106.25 Gbps electrical data to 8-channel 106.25 Gbps optical signals, and multiplex
them into two channels for 850 Gbps optical transmission. Similarly, it optically
de-multiplexes an 850 Gbps input into 8-channel signals, and converts them to
8-channel output electrical data on the receiver side. It has been designed to meet
the harshest external operating conditions including temperature, humidity and
EMI interference. It also can be used as 2 x 400GE breakout to 400G-FR4 modules.

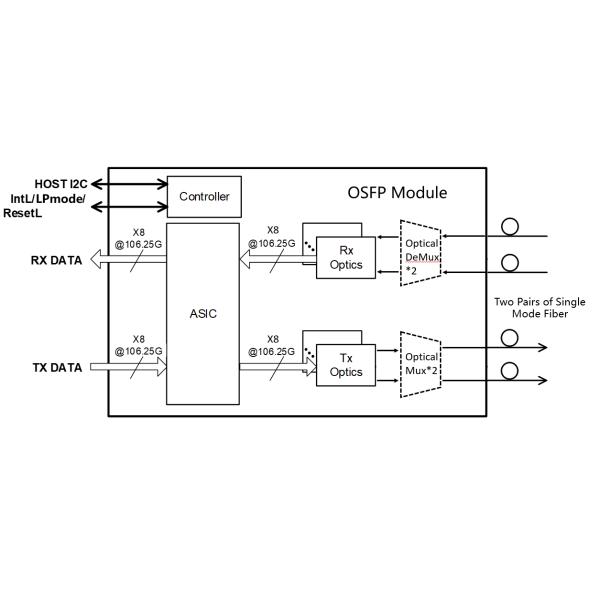

Figure 2-1 Transceiver block diagram
transceiver module OSFP 800G 2 x FR4 for applications in data centers and cloud networks
Mechanical Specifications

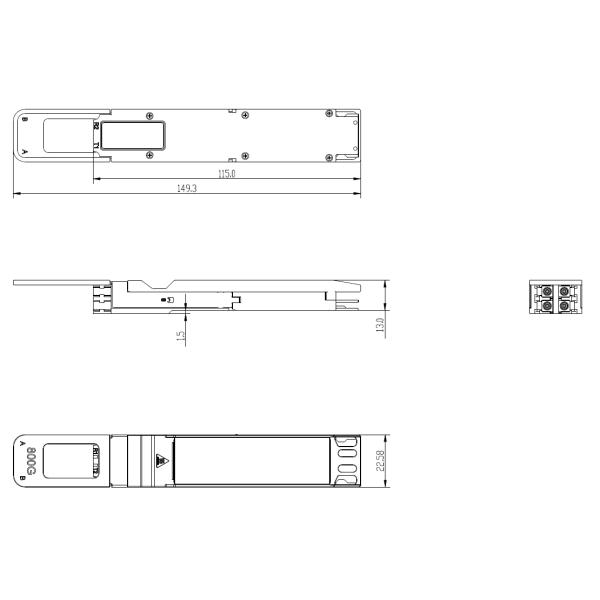

Figure 3-1 OM3877FX200 mechanical dimensions (Type 2 OSFP module)
transceiver module OSFP 800G 2 x FR4 for applications in data centers and cloud networks
Features
⚫ 850 Gbps aggregate bit rate
⚫ Non-hermetic package design
⚫ 2 x CWDM4 lanes MUX/DeMUX design
⚫ Dual duplex LC connector
⚫ Maximum power consumption 17 W
⚫ Single 3.3 V power supply
⚫ Up to 2 km transmission on single mode
fibers with FEC
⚫ OSFP MSA rev5.0 compliant
⚫ 100G Lambda MSA compliant
⚫ 802.3cu compliant
⚫ OIF CMIS 5.2 Management Interface
compliant
⚫ Compliant to OIF-CEI-112G-VSR-PAM4
⚫ RoHS 2 compliant

Applications
⚫ 800G Ethernet
⚫ Data center network
