transceiver module OSFP 800GE SR8 100 m OM4 & 60 m OM3
transceiver module OSFP 800GE SR8 100 m OM4 & 60 m OM3
Specifications
Brand Name :
CY COM
Model Number :
OSFP 800GE SR8
Certification :
ISO9001:2015, ISO14001:2015, ROSH
Place of Origin :
Shenzhen,China
MOQ :
10PCS
Payment Terms :
T/T, Western Union
Supply Ability :
50k/Month
Delivery Time :
5-8 days
Packaging Details :
Plastic box and Carton box
Form Factor: :
OSFP
Transceiver: :
SR8
Interface: :
MPO
Media: :
MMF
Reach/km: :
0.1km
Power Consumption/W: :
15.5
Temperature/℃: :
0 to 70
Description
transceiver module OSFP 800GE SR8 100 m OM4 & 60 m OM3
Function Descriptions
OM3887SX100 is a parallel 800G Octal Small Form-Factor Pluggable (OSFP) SR8
optical module designed for optical communication applications. The optical
module uses a 4-level pulse amplitude modulation (PAM4) format. The optical
module provides point-to-point 800 Gigabit Ethernet links over eight pairs of
multimode fiber, with a reach of up to 100 m for OM4 (MMF) and 60 m for OM3
(MMF).
It is compliant with OSFP MSA standard and IEEE 802.3df 800GBASE-SR8 standard
and IEEE 802.3ck 800GAUI-8 standard. Digital diagnostics functions are available
via the I2C interface, as specified by the OSFP MSA.
Figure 2-1 Transceiver block diagram
transceiver module OSFP 800GE SR8 100 m OM4 & 60 m OM3
Mechanical Specifications

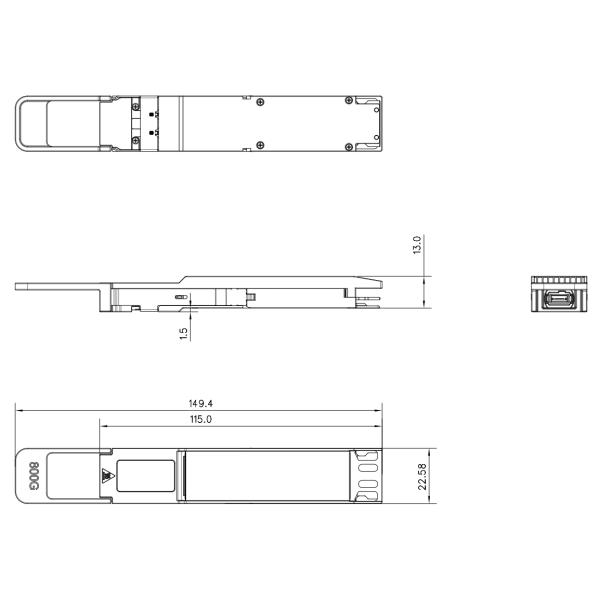

Figure 3-1 OM3887SX100 mechanical dimensions
transceiver module OSFP 800GE SR8 100 m OM4 & 60 m OM3
Features
⚫ OSFP MSA rev5.0 compliant
⚫ OSFP CMIS 5.2 Management interface compliant
⚫ IEEE 802.3df 800GBASE-SR8 standard compliant
⚫ IEEE 802.3ck 800GAUI-8 standard compliant
⚫ OIF-CEI-112G-VSR-PAM4 standard compliant
⚫ Digital diagnostic functions
⚫ 8 channels full-duplex transceiver module
⚫ 850 Gbps aggregate bit rate
⚫ Maximum link length of 60 m OM3, 100m OM4 with FEC
⚫ Single MPO-16/APC receptacle
⚫ Maximum power dissipation ≤ 15.5 W
⚫ Operating case temperature range 0°C to 70°C
⚫ Single 3.3 V power supply
⚫ RoHS 2 compliant
Applications
⚫ 800G Ethernet
⚫ Data center network
