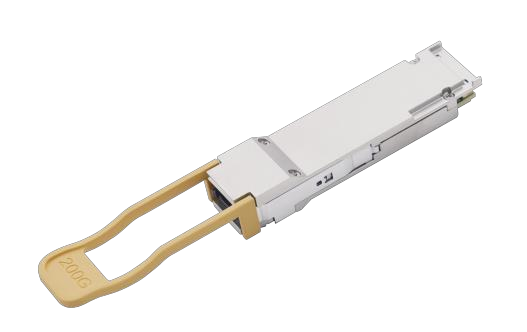

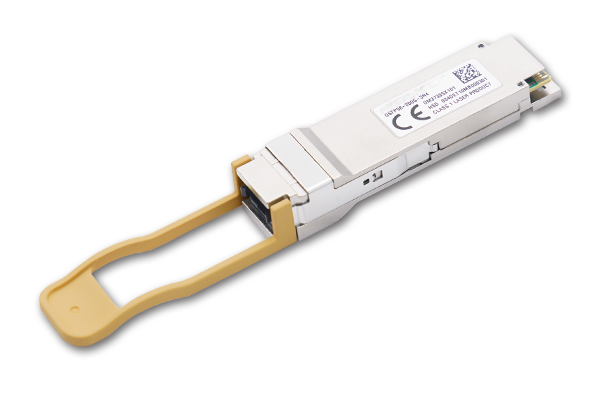

transceiver module QSFP56 200GE SR4 100M OM4 & 70M OM3
transceiver module QSFP56 200GE SR4 100M OM4 & 70M OM3
transceiver module QSFP56 200GE SR4 100M OM4 & 70M OM3
transceiver module QSFP56 200GE SR4 100M OM4 & 70M OM3
Specifications
Brand Name :
CY COM
Model Number :
QSFP56 200GE SR4
Certification :
ISO9001:2015, ISO14001:2015, ROSH
Place of Origin :
Shenzhen,China
MOQ :
10PCS
Payment Terms :
T/T, Western Union
Supply Ability :
50k/Month
Delivery Time :
5-8 days
Packaging Details :
Plastic box and Carton box
Form Factor: :
QSFP56
Transceiver: :
SR4
Interface: :
MPO
Media: :
MMF
Reach/km: :
0.1km
Power Consumption/W: :
5
Temperature/℃: :
0 to 70
Description
transceiver module QSFP56 200GE SR4 100M OM4 & 70M OM3
Description
OM3738SX101 is a parallel full-duplex 200GE Quad Small Form Factor Pluggable
(QSFP56) optical module designed for short-range multi-lane data communication.
The optical module uses a 4-level pulse amplitude modulation (PAM4) format. It
offers four data lanes based on 850 nm VCSEL/PD array technology, and is capable
of an aggregate data rate of 200GE over 100 m OM4 MMF or 70 m OM3 MMF.
It is compliant with the IEEE 802.3cd 200GBASE SR4, IEEE 802.3bs 200GAUI-4
standards. Digital diagnostics functions are available via the I2C interface, as
specified by the CMIS4.0 management interfaces.
Figure 2-1 Transceiver block diagram
transceiver module QSFP56 200GE SR4 100M OM4 & 70M OM3
Mechanical Specifications

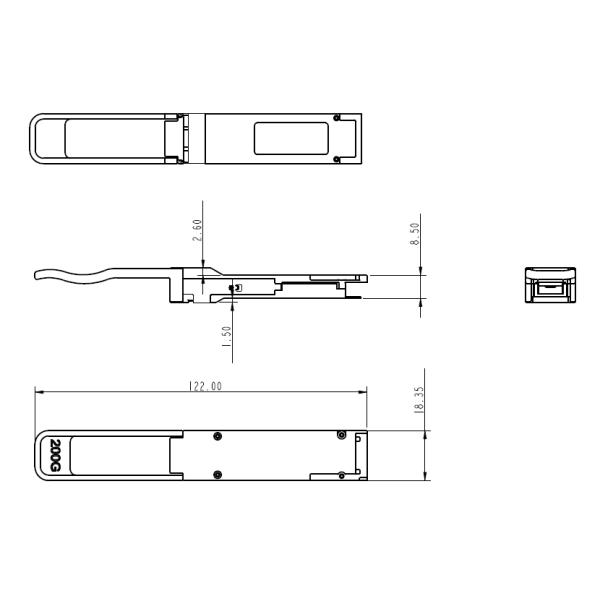

Figure 3-1 OM3738SX101 mechanical dimensions
transceiver module QSFP56 200GE SR4 100M OM4 & 70M OM3
Features
⚫ Hot-pluggable QSFP56
⚫ IEEE 802.3cd 200GBASE-SR4
standard compliant
⚫ IEEE 802.3bs 200GAUI-4 standard
compliant
⚫ CMIS4.0 Management interface
compliant
⚫ Digital diagnostic functions
⚫ 4-channel full-duplex transceiver
module
⚫ 212.5 Gbps aggregate bit rate
⚫ Maximum link length of 70 m OM3,
100 m OM4 with FEC
⚫ Single MPO-12 APC/UPC receptacle
⚫ Maximum power dissipation < 5 W
⚫ Operating case temperature range
0°C to 70°C
⚫ Single 3.3 V power supply
⚫ RoHS 2 compliant

Applications
⚫ 200G Ethernet
⚫ Data Center Network
transceiver module QSFP56 200GE SR4 100M OM4 & 70M OM3transceiver module QSFP56 200GE SR4 100M OM4 & 70M OM3
