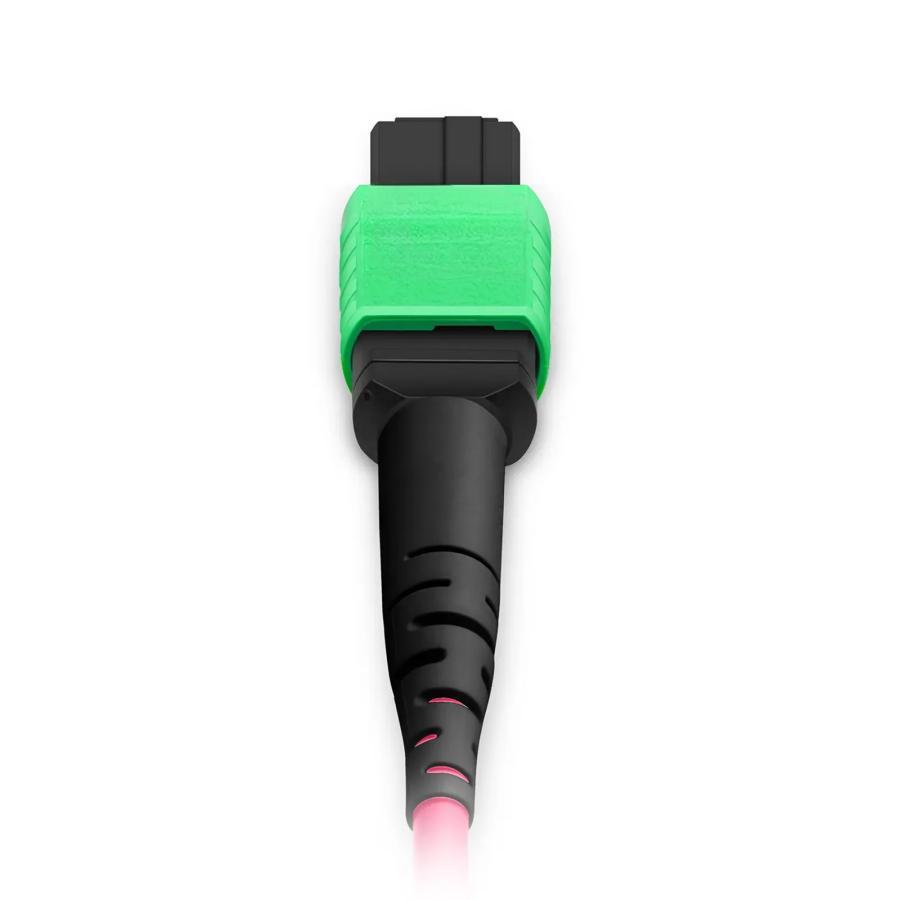

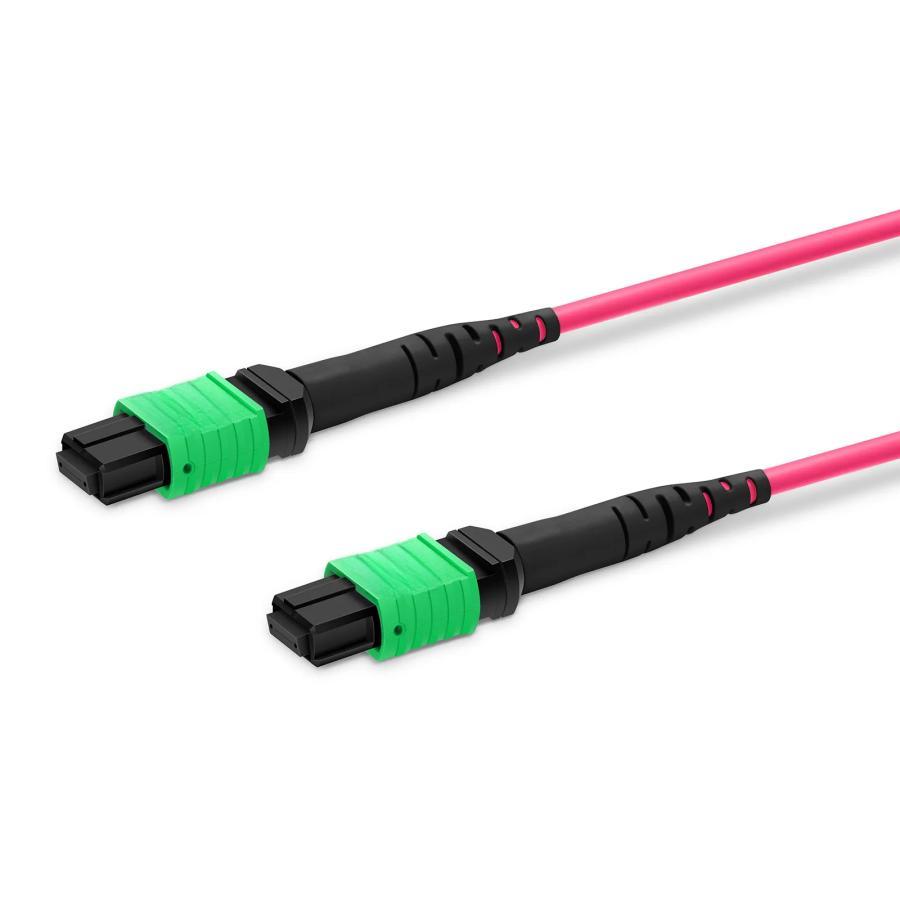

MPO Jumper Cable with Bend Insensitive Fiber 7.5mm Min. Bend Radius and APC Endface for 400G Transceivers
MPO Jumper Cable with Bend Insensitive Fiber 7.5mm Min. Bend Radius and APC Endface for 400G Transceivers
MPO Jumper Cable with Bend Insensitive Fiber 7.5mm Min. Bend Radius and APC Endface for 400G Transceivers
MPO Jumper Cable with Bend Insensitive Fiber 7.5mm Min. Bend Radius and APC Endface for 400G Transceivers
Specifications
Brand Name :
CY COM
Model Number :
MPO/MTP
Place of Origin :
Shenzhen China
MOQ :
1PCS
Price :
6-20 USD/PCS
Payment Terms :
T/T
Supply Ability :
1 million connector / month
Delivery Time :
5-8days
Packaging Details :
PE Bags
Certification :
ISO9001:2015 , RoHS
Product Name :
MPO 16F Jumper Cable
Cable Material :
OFNR OFNP
Connector Gender :
Female Male
Side A/B Fiber Polish： :
UPC APC Male
Polarity :
Type A Type B Type C
Cable Length :
1M 3M 5M 10M 15M 30M
Description

MPO-16 APC OM4 16 Fiber Cable Bend Insensitive Fiber with 7.5mm Min. Bend Radius


Product Overview

The MPO jumper is factory-terminated and tested to deliver verified optical performance and reliability, with an MPO-16 APC end featuring an 8-degree polished angle to deflect internal optical back reflections from entering the transceiver and distorting signal quality.

It is ideal for 16-fiber parallel multimode optical transceiver applications, such as 400G QSFP-DD/OSFP SR8 optics transmission in data center high-speed fiber links.


Key Features

MPO Connector with Optimal 0.35dB Low IL
Bend Insensitive Fiber with 7.5mm Min. Bend Radius
8° APC Endface Minimizes Optical Reflections to Improve Signal Quality
OFNP Fire Safety-Rated for Use in Plenum Air Spaces
Designed for Linking 400G QSFP-DD and OSFP Transceivers
Compliant to IEC 61754-7, ANSI/TIA-604-5 and ANSI/TIA-568.3-D


Specifications
Connector A
MPO Female (Non-Pinned) with Offset Key
Connector B
MPO Female (Non-Pinned) with Offset Key
Polish Type
APC to APC
Glass Fiber
Bend Insensitive Fiber
Fiber Mode
OM4 50/125μm
Wavelength
850/1300nm
Fiber Count
16 Fibers
Polarity
Crossover
Cable Outside Diameter (OD)
3.0mm
Cable Jacket
Plenum (OFNP)
Min. Bend Radius (Optical Fiber)
7.5mm
Min. Bend Radius (Fiber Cable)
20/10D (Dynamic/Static)
Connector Durability
500 times
Tensile Strength
80/240N (Long/Short Term)
Insertion Loss
≤0.35dB (0.15dB Typ.)
Return Loss
≥20dB
Attenuation at 850nm
≤2.3dB/km
Attenuation at 1300nm
≤0.6dB/km
Ope

MPO Jumper Cable with Bend Insensitive Fiber 7.5mm Min. Bend Radius and APC Endface for 400G Transceivers

MPO Jumper Cable with Bend Insensitive Fiber 7.5mm Min. Bend Radius and APC Endface for 400G Transceivers

rating Temperature
-10 to 60°C (14 to 140℉)
Storage Temperature
-10 to 70°C (14 to 158℉)
