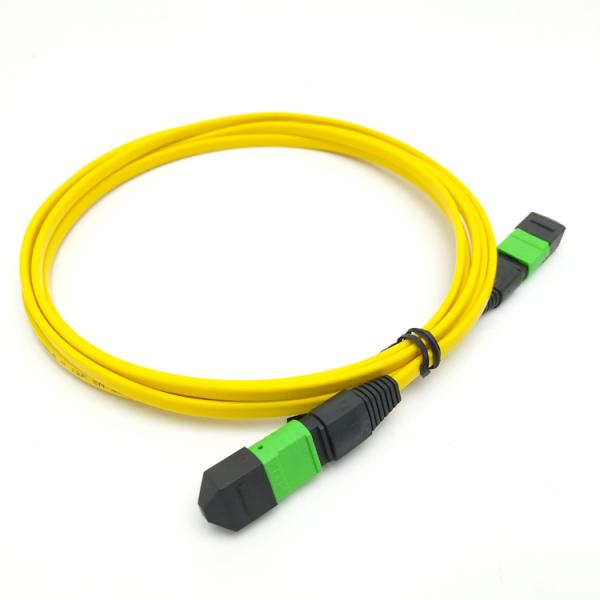

SENKO 12 core MPO APC Singlemode OS2 mtp trunk cable Polarity A
SENKO 12 core MPO APC Singlemode OS2 mtp trunk cable Polarity A
SENKO 12 core MPO APC Singlemode OS2 mtp trunk cable Polarity A
SENKO 12 core MPO APC Singlemode OS2 mtp trunk cable Polarity A
Specifications
Brand Name :
Senko / US CONEC / Furukawa Connector
Model Number :
MPO APC 12F
Certification :
ISO9001:2015
Place of Origin :
Shenzhen
MOQ :
5 piece
Price :
US $26.5 - 32 / Piece
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50K
Delivery Time :
3-5 working days
Packaging Details :
1 PCS /PE bag
Connector :
MPO 12F
Cable diameter: :
3.0mm or 3.6mm
Cable color :
Yellow
Polarity :
A
Description
Product Description

Singlemode MPO/MTP fiber patch cords are mainly used in high-density data centers, fiber to the building (FTTB) ,optical splitter / 40G/100G SFP / SFP + optical transceiver device to flexible connection between different modules. equipment and systems . so that the optical signal can transmit the desired channel, to achieve and complete a predetermined or desired purpose and requirements.

Advantages
  • Imported production and test equipments:EXFO IL&RL Tester/ Domaille Grinding Machine/ SENKO 3D Interferometer
  • Pretty high return loss:≥45dB
  • 5-year Experience R&D Team
  • Customized Production and Service
  • 40G/100G Data Center Solution
Application
  • Data center infrastructure
  • Storage area network
  • Emerging 40 & 100Gps Protocols
  • Parallel optics
  • Enterprise network cabling systerm
Technical Parameter
Item Technical Parameters
Connector MPO (F or M) MPO(F or M)
Operation Temperature -40°C ~ +80°C
Storage Temperature -40°C ~ +85°C
Insertion Loss

SM: ≤ 0.75dB (standard value),≤0.35dB (typical value);

MM:≤ 0.50dB (standard value),≤0.35dB (typical value);

Return Loss SM:≥60dB; MM:≥35dB
The MPO end type Male: with guide pin; Female: without guide pin
Fiber count 8,12&24 MT fiber
The other end of the connector type MPO-female , MPO-male , FC , SC , ST , MU , LC , E2000
Fiber mode Single-mode(G652,G655,G657), multi-mode (50, 62.5, OM2, OM3, OM4)
Fiber cable type 250um ribbon fiber,ribbon cable,Bundle fiber optic cable

Polarity

SENKO 12 core MPO APC Singlemode OS2 mtp trunk cable Polarity A


SENKO 12 core MPO APC Singlemode OS2 mtp trunk cable Polarity A
