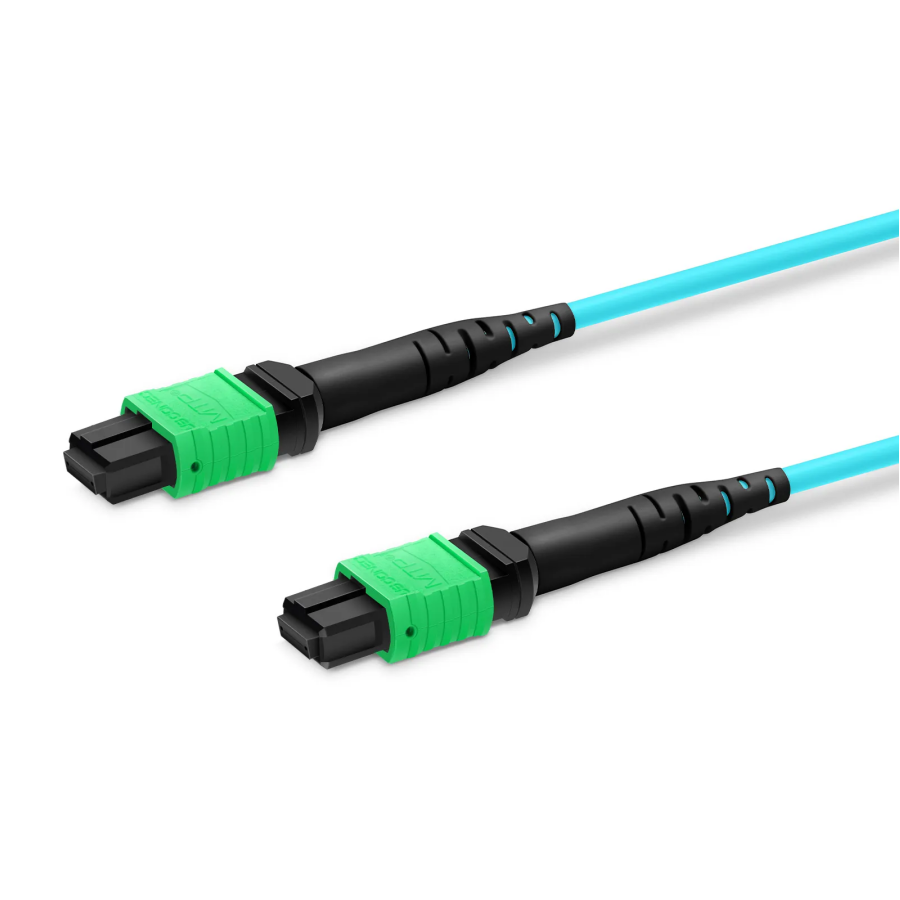

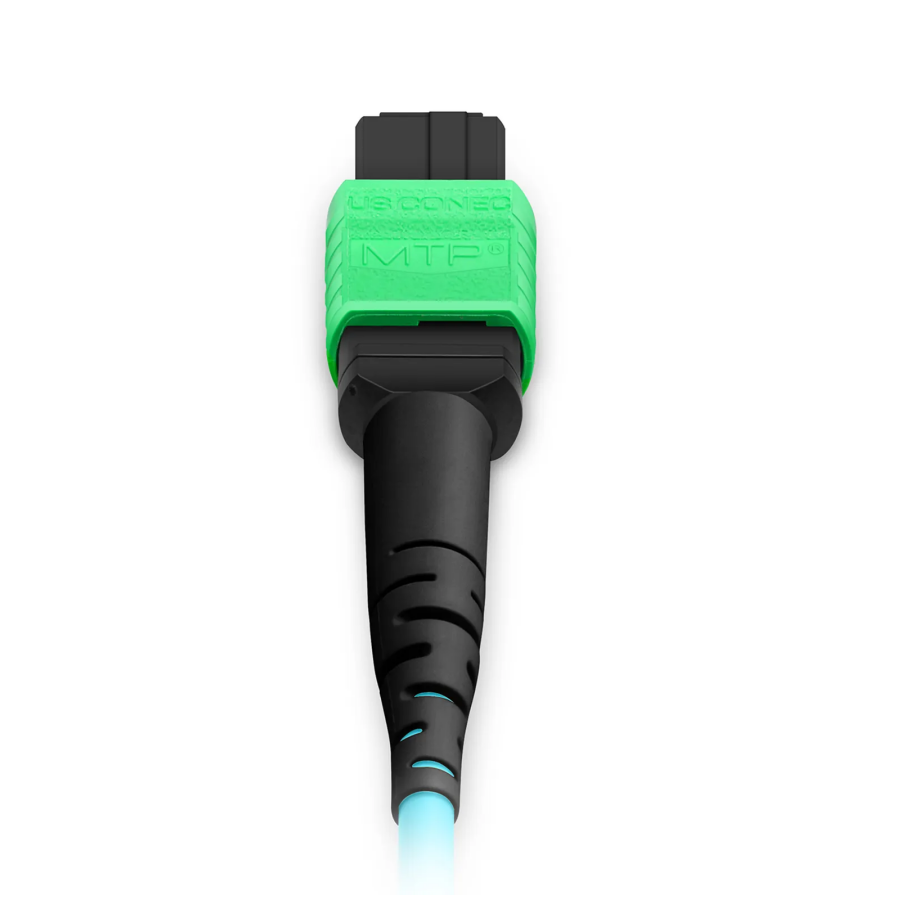

MPO-16 Fiber Cable with 0.35dB Low IL and 8° APC Endface for 400G QSFP-DD and OSFP Transceivers
MPO-16 Fiber Cable with 0.35dB Low IL and 8° APC Endface for 400G QSFP-DD and OSFP Transceivers
MPO-16 Fiber Cable with 0.35dB Low IL and 8° APC Endface for 400G QSFP-DD and OSFP Transceivers
MPO-16 Fiber Cable with 0.35dB Low IL and 8° APC Endface for 400G QSFP-DD and OSFP Transceivers
MPO-16 Fiber Cable with 0.35dB Low IL and 8° APC Endface for 400G QSFP-DD and OSFP Transceivers
MPO-16 Fiber Cable with 0.35dB Low IL and 8° APC Endface for 400G QSFP-DD and OSFP Transceivers
MPO-16 Fiber Cable with 0.35dB Low IL and 8° APC Endface for 400G QSFP-DD and OSFP Transceivers
MPO-16 Fiber Cable with 0.35dB Low IL and 8° APC Endface for 400G QSFP-DD and OSFP Transceivers
Specifications
Place of Origin :
China
Brand Name :
CY
Certification :
ISO9001:2008, SGS
MOQ :
20
Packaging Details :
1pcs/carton
Delivery Time :
3-7 days
Payment Terms :
T/T,Western union
Supply Ability :
600pcs per day
Connector Gender :
Female Male
Side A/B Fiber Polish： :
UPC APC Male
Cable Polarity： :
Type A Type B Type C
Cable Materials :
OFNR OFNP
Cable Length: :
1M 3M 5M 10M 15M 30M
Cable Cores: :
8F 12F 16F 24F
Description

MPO-16 APC OM3 16 Fiber Cable designed for Linking 400G QSFP-DD and OSFP Transceivers


The MPO-16 jumper is factory-terminated and tested to deliver verified optical performance and reliability, with an MPO-16 APC end featuring an 8-degree polished angle to deflect internal optical back reflections from entering the transceiver and distorting signal quality.
It is ideal for 16-fiber parallel multimode optical transceiver applications, such as 400G QSFP-DD/OSFP SR8 optics transmission in data center high-speed fiber links.


Product Overview

MPO Connector with Optimal 0.35dB Low IL
Bend Insensitive Fiber with 7.5mm Min. Bend Radius
8° APC Endface Minimizes Optical Reflections to Improve Signal Quality
OFNP Fire Safety-Rated for Use in Plenum Air Spaces
Designed for Linking 400G QSFP-DD and OSFP Transceivers
Compliant to IEC 61754-7, ANSI/TIA-604-5 and ANSI/TIA-568.3-D


Specifications
Connector A
MPO-16 Female (Non-Pinned) with Offset Key
Connector B
MPO-16 Female (Non-Pinned) with Offset Key
Polish Type
APC to APC
Glass Fiber
Bend Insensitive Fiber
Fiber Mode
OM3 50/125μm
Wavelength
850/1300nm
Fiber Count
16 Fibers
Polarity
Crossover
Cable Outside Diameter (OD)
3.0mm
Cable Jacket
Plenum (OFNP)
Min. Bend Radius (Optical Fiber)
7.5mm
Min. Bend Radius (Fiber Cable)
20/10D (Dynamic/Static)
Connector Durability
500 times
Tensile Strength
80/240N (Long/Short Term)
Insertion Loss
≤0.35dB (0.15dB Typ.)
Return Loss
≥45dB
Attenuation at 850nm
≤2.3dB/km
Attenuation at 1300nm
≤0.6dB/km
Operating Temperature
-10 to 60°C (14 to 140℉)
Storage Temperature
-10 to 70°C (14 to 158℉)

MPO-16 Fiber Cable with 0.35dB Low IL and 8° APC Endface for 400G QSFP-DD and OSFP Transceivers

MPO-16 Fiber Cable with 0.35dB Low IL and 8° APC Endface for 400G QSFP-DD and OSFP Transceivers
