Stranded Loose Tube Outdoor Fiber Optic Cable LAN with APL Sheath GYTA

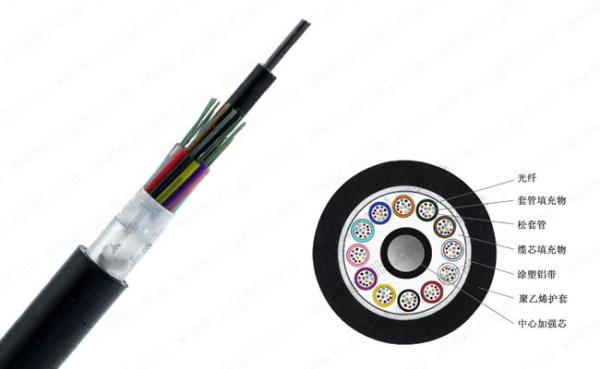

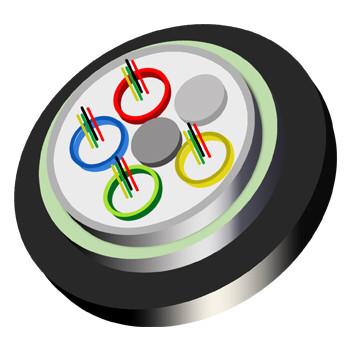

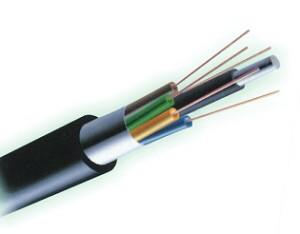

Description:

Loose tubes(or some fillers) stranded around the metallic central strength member
The cable core is filled with cable filling compound
An Aluminum Polyethylene Laminate(APL) is applied around the cable core and further sheathed with High Density Polyethylene(PE)
Tubes(and fillers) are stranded around the central strength member into a compact and circular cable core
Each loose tube contains double-coated single or multi-mode fibers

Characteristics

1. Accurate fiber excess length ensures good performance under mechanical stress and good temperature performance
2. Material of loose tube with good temperature property and high Young’s modulus
3. Tubes, cable core and all interstices are filled with special tube filling compound to ensure long term stability in transmission for two long wavelength windows,moisture-proof and absence of longitudinal water ingress
4. The central strength member makes use of high Young’s modulus phosphatized steel wire
5. The corrugated aluminum tape is laminated at both sides with Polyethylene and bonded tightly to PE jacket. It ensures radial moisture-proof of cable and reinforces the latter’s crush resistance
6. The jacket possesses good ultra violet resistance property.

Applications:

Long distance and Local area network(LAN) communication
Outdoor communication

Laying method: conduit, Aerial
Temperature range: -40~70℃
Fiber count:2~288
Outer diameter:10.5~18.8±0.5mm
Weight:103~302kgs

Our advantage

1. Professional cable manufacturer.
2. We provide good quality Fiber Optic cable with manufacture competitive price
3. Best delivery time
4. OEM service provide,Your own logo and own design are welcomed.
5. Long distance factory review by video talk
6. Can be customized production of fiber optic cable
7. 30 years cable service life , even 60 years cable service life.
