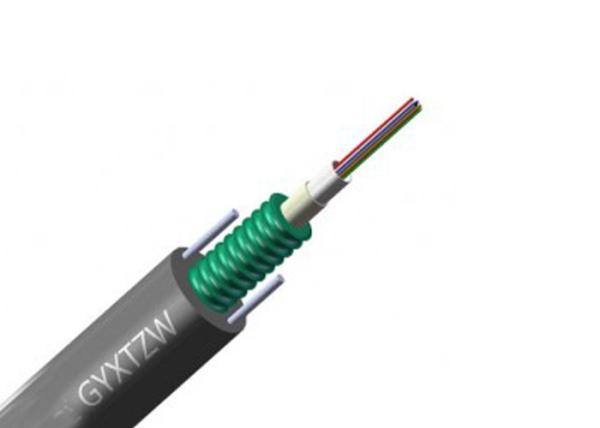

LSZH Outdoor Fiber Optic Cable Armored Uni-tube Loose Tube GYXTZW Aerial Central
LSZH Outdoor Fiber Optic Cable Armored Uni-tube Loose Tube GYXTZW Aerial Central
Specifications
Brand Name :
Furong
Model Number :
GYXTZW
Certification :
SGS, ISO
Place of Origin :
DONGGUANG CHINA
MOQ :
1KM
Price :
NEGOTIABLE
Supply Ability :
2000KM/DAY
Packaging Details :
WOODEN DRUM
Out Jacket :
PE
Application :
Duct or Aerial
Fiber Count :
2-12c
Package :
Wooden Drum
Print :
Standard and customized
Structure :
Central Loose Tube
Description

Description:

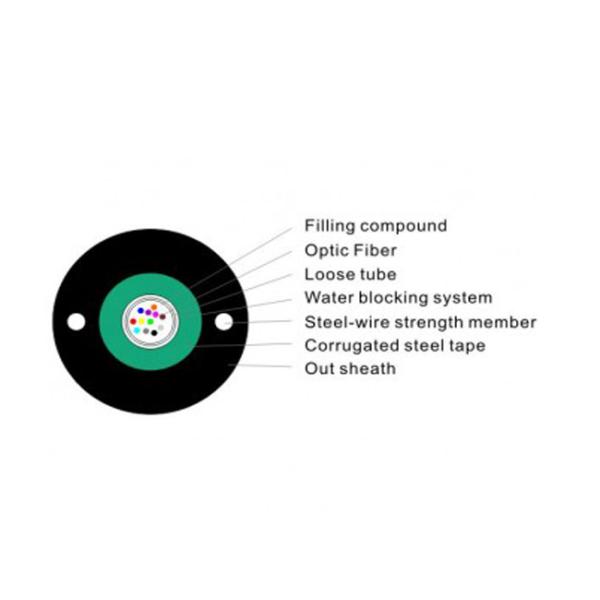

The single-mode or multi-mode fiber is set into a loose tube made by high modulus plastic,and the tube is filled with water-proof compound. Loose tube is wrapped by double-sided corrugated steel tape on the outside. Water-blocking tape in the middle of the strap steel and the loose tube ensures a compact and vertical waterproof fiber optic cable. Two parallel steel wires are placed on both sides to provide the cable with high tensile strength

Features:.

--Steel wire strength, filler protect tube fiber, aluminum tape armord.

--Good ultra violet radiation resistant property.
--Good moisture-resistance.

--Fiber count: 2-12 cores.

Fiber Optic Cable GYXTZW Applications:
--Laying modes: Aerial & Conduit
--Rural communication, local trunk line, CATV & computer networks system
Items Description
Number of fiber 2-12cores
Filling rope No
Moisture Barrier Water blocking system
Central strength member No
Inner sheath No
Loose tube material PBT
diameter Ф2.2(outer/inner)
Tube-filling material Tube filling compound
Steel wire size 0.8mm
Number 2
Outer sheath material LSZH
diameter 1.70±0.2mm

Cable Mechanical Characteristic

Items Cable diameter Weight
2cores to 12cores 8.5±0.5mm 65±10kg/km
Installation Temperature range -15--+60
Operation and transport temperature -40-+70
Min Bending Radius(mm) Long term 10D
short term 20D
Min allowable Tensile Strength(N) Long term 500
short term 1200

Fiber Characteristic

Fiber style Unit SM G652D MM 50/125 MM 62.5/125
condition nm 1310/1550 850/1300 850/1300
attenuation dB/km ≤0.36/0.23 ≤3.0/1.0 ≤3.0/1.0
Dispersion 1310nm Ps/(nm*km) ≥-3.4 ≤3.4 ..... .....
1550nm Ps/(nm*km) ≤18 ..... .....
1625nm Ps/(nm*km) ≤22
Bandwidth 850nm MHZ. KM ..... ≧400 ≧160
1300nm MHZ. KM ..... ≧800 ≧500
Zero dispersion wavelength nm ≧1302,≤1322 ..... .....
Zero dispersion slope Ps(nm2*km) ≤0.091 ..... .....
PMD Maximum Individual Fiber Ps√km ≤0.2 ..... .....
PMD Design Link Value Ps√km ≤0.08 ..... .....
Fibre cutoff wavelength λc nm ≧1180,≤1330 ..... .....
Cable cutoff wavelength λcc nm ≤1260 ..... .....
MFD 1310nm um 9.2±0.4 ..... .....
1550nm um 10.4±0.8 ..... .....
Numerical Aperture(NA) ...... 0.200±0.015 0.275±0.015
Step(mean of bidirectional measurement) dB ≤0.05 ≤0.10 ≤0.10
Irregularities over fiber length and point discontinuity dB ≤0.05 ≤0.10 ≤0.10
Difference backscatter coefficient dB/km ≤0.03 ≤0.08 ≤0.10
Attenuation uniformity dB/km ≤0.01 ....... .......
Core diameter um ...... 50±1.0 62.5±2.5
Cladding diameter um 125.0±0.1 125.0±0.1 125.0±0.1
Cladding non-circularity % ≤1.0 ≤1.0 ≤1.0
Coating diameter um 242±7 242±7 242±7
Coating/chaffinch concentrically error um ≤12.0 ≤12.0 ≤12.0
Coating non circularity % ≤6.0 ≤6.0 ≤6.0
Core/cladding concentricity error um ≤0.6 ≤1.5 ≤1.5
Curl(radius) um ≤4 ..... .....
