Metallic Strength Unitube Arial or Duct Outdoor Fiber Optic Cable GYXTY 2-24 Core
Metallic Strength Unitube Arial or Duct Outdoor Fiber Optic Cable GYXTY 2-24 Core
Metallic Strength Unitube Arial or Duct Outdoor Fiber Optic Cable GYXTY 2-24 Core
Metallic Strength Unitube Arial or Duct Outdoor Fiber Optic Cable GYXTY 2-24 Core
Specifications
Brand Name :
Furong
Model Number :
GYXTY
Certification :
SGS, ISO
Place of Origin :
DONGGUANG CHINA
MOQ :
2KM
Price :
NEGOTIABLE
Supply Ability :
2000KM/DAY
Packaging Details :
WOODEN DRUM
Outer Jacket :
PE
Application :
INDOOR/OUTOOR
Cable type :
Composite
Package :
Wooden Drum 1-4km/drum
OEM :
Accepted
Fiber Type :
singlemode or multimode
Description

Description:

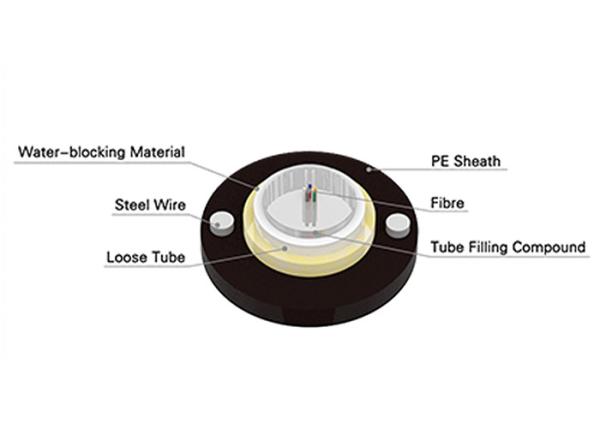

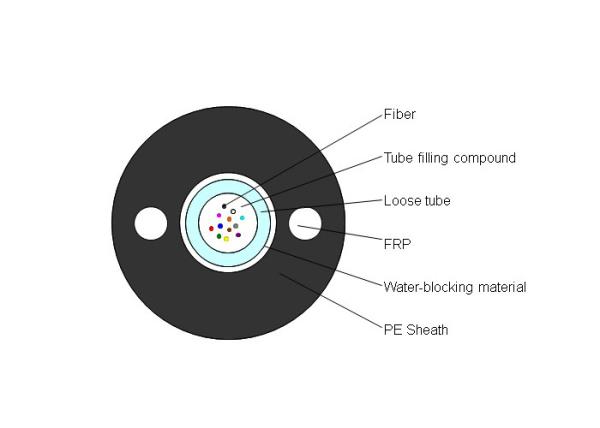

GYXTY fiber optic cable is unitube structure for arial, duct purpose with two parallel strength member structure available from 2C to 24C.

Features

1. Low dispersion and attenuation

2. Good mechanical and temperature performance

3. High strength loose tube that is hydrolysis resistance

4. Special tube filling compound ensure a critical protection of fiber

5. With small cable diameter, light cable weight

6. Crush resistance and flexibility

7. The following measures are taken to ensure the cable watertight: Loose tube filling compound, 100% cable core filling

Cable Parameters
G.652 G.655 50/125μm 62.5/125μm
Attenuation @850nm ≤3.0 dB/km ≤3.0 dB/km
(+20°C) @1300nm ≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36 dB/km ≤0.40 dB/km
@1550nm ≤0.22 dB/km ≤0.23dB/km
Bandwidth (Class A) @850nm ≥500 MHz·km ≥200 MHz·km
@1300nm ≥1000 MHz·km ≥600 MHz·km

Items Specifications
Fiber Count 2-24
Colored Coating Fiber Dimension 250µm±15µm
Color

Blue,Orange,Green,Brown,Gray,White,Red,Black,Yellow,Purple,

Pink,Aqua
Loose Tube Dimension 2.5mm±0.05mm
Material PBT
Color Natural
Strength Member Diameter 1.0mm
Material Steel Wire
Outer Jacket Dimension 8.0mm±0.3mm
Material HDPE
Color Black
