GYFXY Central Tube All Dielectric Cable With Two FRP Strength Member
GYFXY Central Tube All Dielectric Cable With Two FRP Strength Member
GYFXY Central Tube All Dielectric Cable With Two FRP Strength Member
GYFXY Central Tube All Dielectric Cable With Two FRP Strength Member
Specifications
Brand Name :
Furong
Model Number :
GYFXY
Certification :
SGS, ISO
Place of Origin :
DONGGUANG CHINA
MOQ :
2KM
Price :
NEGOTIABLE
Supply Ability :
2000KM/DAY
Packaging Details :
WOODEN DRUM
Loose Tube Material :
PBT
Application :
Aerial
Fiber Core :
2-24
Structure :
one tube
OUTER SHEATH :
PE
Strength Member :
FRP
Description

Description:

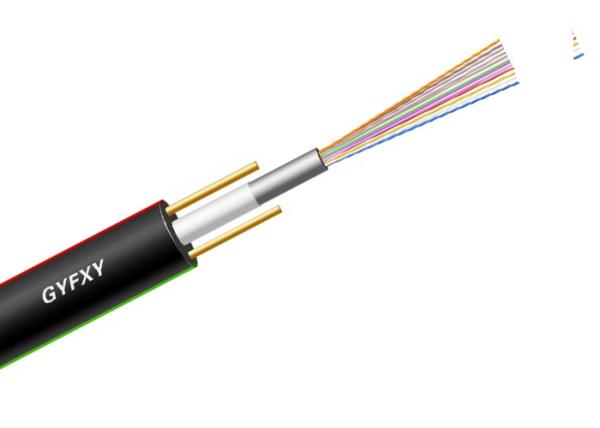

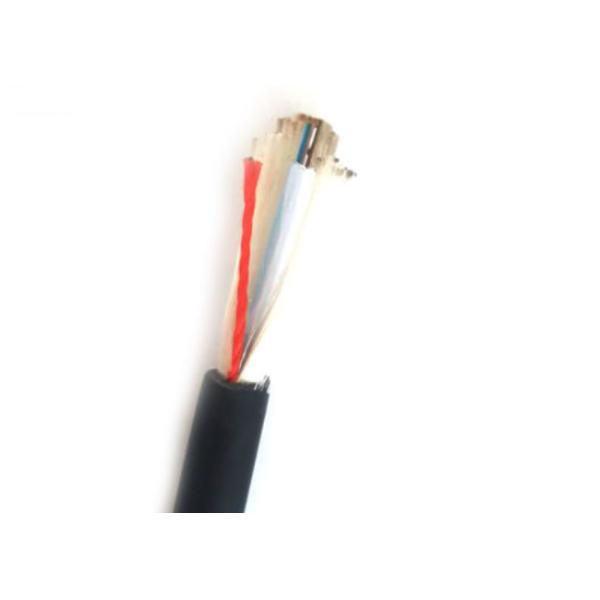

GYFXY Fiber Optic Cable has the fibers,250 um, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. Over the tube, the water-blocking material is applied to keep the cable watertight. Moreover, two parallel Fiber Reinforced Plastics are placed at the two sides; the cable is completed with a polyethylene (PE) sheath

Features

Good mechanical and temperature performance

High strength loose tube that is hydrolysis resistant

Special tube filling compound ensure a critical protection of fiber

Two parallel FRPs ensure tensile strength

PE Sheath protects cable from ultraviolet radiation

Long delivery length

Small diameter, light weight, and friendly installation

Tight buffer fiber ease of stripping.

The jacket anti-corrosion, anti-water, anti- ultraviolet retardant, flame retardant and harmless to environment etc;

Excellent flame retardant jacket and anti-torsion

Soft, flexible, easy to splice, and with big capacity data transmission;

All dielectric structure protect it from electromagnetic influence

Scientific design with serious processing art.

Specification

G652 G655 50/125μm 62.5/125μm

Attenuation

(+20℃)

 @850nm ≤3.0 dB/km ≤3.0 dB/km
@1300nm ≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36 dB/km ≤0.40 dB/km
@1550nm ≤0.22 dB/km ≤0.23dB/km
Bandwidth (Class A) @850nm ≥500 MHz·km ≥200 MHz·km
@1300nm ≥1000 MHz·km ≥600 MHz·km
Numerical Aperture 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelengthλcc ≤1260nm ≤1480nm
