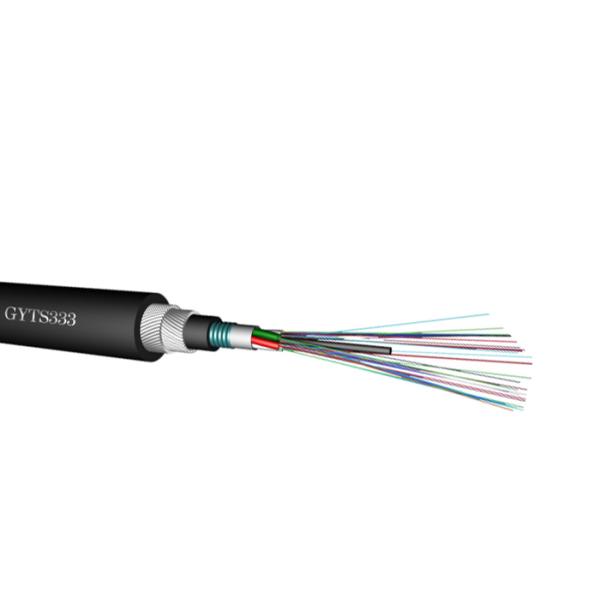

STEEL PE sheath Double steel wire armoured fiber optic cable GYTS333 Metallic strength member
STEEL PE sheath Double steel wire armoured fiber optic cable GYTS333 Metallic strength member
STEEL PE sheath Double steel wire armoured fiber optic cable GYTS333 Metallic strength member
STEEL PE sheath Double steel wire armoured fiber optic cable GYTS333 Metallic strength member
Specifications
Brand Name :
Furong
Model Number :
GYTS333
Certification :
SGS, ISO
Place of Origin :
DONGGUANG CHINA
MOQ :
2KM
Price :
NEGOTIABLE
Supply Ability :
2000KM/DAY
Packaging Details :
WOODEN DRUM
Loose Tube Material :
PBT
Application :
Submarine
Fiber Core :
2-144
FIBER TYPE :
SM OR MM
Structure :
Central Loose Tube
Strength Member :
Steel Armored
Description

Feature:

1. Excellent mechanical and enviormental performance

2. Good water resistance performance

3. Easy to install

4. Gel-filled loose tube protect the fiber well

5. Armored with anti-moisture aluminum tape

Characteristics:

Fiber:up to 288,Gel-filled

Fiber type:SM or multimode

Cable types:S-Z strandard loose tube

Armor:Aramid yarn

Optical characteristic

Type of fiber B1.1 B4
Wavelength(nm) 1310 1550 1550
Attenuation coefficient(max)(dB/km) 0.36 0.22 0.22
PMD M 20 20
Q 0.01% 0.01%
PMDQ (max) 0.5ps/km1/2 0.5ps/km1/2
Zero-dispersion Wavelength(nm) 1300~1324 ——
Zero-dispersion Slope (max) ps/(nm2·km) 0.093 ——
Absolute value of Chromatic Dispersion ps/(nm·km) 1288~1339nm 3.5 ——
1271~1360nm 5.3 ——
1550nm 18.0 ——
1530~1565nm —— 0.1~10.0
Dmax-Dmin 1530~1565nm —— 5.0
cut-off wavelength lcc(nm) ≤1260 ≤1480
Note: If specification at 1600nm is required, Please make it out in the ordering contract.

Characteristics of Cable

Fibre

Count

Steel Wire

mm

PE Sheathed

Steel Wire mm

Loose Tube

Size

mm

 Tubes Fillers

Cable

Diameter

mm

Cable

Weight

kg

Strength

Long/Short Term

N

Crush Resistance

Long/Short Term

N/100mm
4~6 1.6 / 1.4/2.1 1 4 20.0 937 10000/20000 3000/5000
8~12 1.6 / 1.4/2.1 2 3 20.0 938 10000/20000 3000/5000
14~18 1.6 / 1.4/2.1 3 2 20.0 938 10000/20000 3000/5000
20~24 1.6 / 1.4/2.1 4 1 20.0 939 10000/20000 3000/5000
26~30 1.6 / 1.4/2.1 5 0 20.0 939 10000/20000 3000/5000
32~36 1.9 / 1.8/2.6 3 2 21.3 1064 10000/20000 3000/5000
38~48 1.9 / 1.8/2.6 4 1 21.3 1065 10000/20000 3000/5000
50~60 1.9 / 1.8/2.6 5 0 21.3 1066 10000/20000 3000/5000
62~72 1.9 2.7 1.8/2.6 6 0 22.1 1133 10000/20000 3000/5000
74~84 2.2 3.6 1.8/2.6 7 0 23.0 1225 10000/20000 3000/5000
86~96 2.2 4.4 1.8/2.6 8 0 23.8 1307 10000/20000 3000/5000
98~108 2.2 5.3 1.8/2.6 9 0 24.7 1380 10000/20000 3000/5000
110~120 2.2 6.1 1.8/2.6 10 0 25.5 1467 10000/20000 3000/5000
122~132 2.2 6.9 1.8/2.6 11 0 26.3 1553 10000/20000 3000/5000
134~144 2.2 7.8 1.8/2.6 12 0 27.2 1631 10000/20000 3000/5000
