70 Meters OM3 LSZH AOC Fiber Optical Cable 48Gbps 8K HDMI 2.1
70 Meters OM3 LSZH AOC Fiber Optical Cable 48Gbps 8K HDMI 2.1
70 Meters OM3 LSZH AOC Fiber Optical Cable 48Gbps 8K HDMI 2.1
70 Meters OM3 LSZH AOC Fiber Optical Cable 48Gbps 8K HDMI 2.1
Specifications
Brand Name :
Hangalaxy
Model Number :
HGYN003
Certification :
CE, UL, ROHS, SGS, FCC
Place of Origin :
China
MOQ :
MOQ Saying is 100pcs
Price :
Negotiation By email or Phone Call
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
Producing Capacity 5055PCS Monthly
Delivery Time :
7 Business Days
Packaging Details :
1PCS Each Individual Quality PE Bag
Cable OD :
4.5mm
Connector :
HDMI 2.1
Bandwidth :
48Gbps
Length :
100 meters
Jacket Material :
LSZH
Color :
Yellow
Support :
Support Dynamic HDR
Description

100 meters AOC 48Gbps 8K HDMI 2.1 Fiber Optical Cable LSZH Outer Sheath

Brief Overview

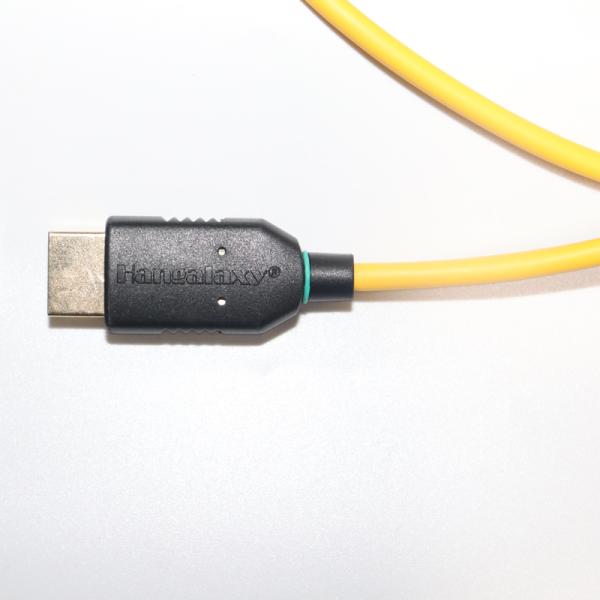

The 8K HDMI2.1 AOC HD/2.1-S series from Hangalaxy brand is an active optical cable with high bandwidth and low power consumption. Using optical fiber instead of copper cable as the high-speed signal transmission medium, it can transmit 8K@60HZ ultra-high-definition images to 70 meters without loss. Compared with traditional copper cable, our HD/2.1-S series active optical fiber cables have the advantages of longer, thinner, softer, better signal quality, no radiation and no electromagnetic interference. Compared with other HDMI fiber optic transmission solutions, HD/2.1-S series fiber optic cables have the advantages of convenient use, good compatibility, and no need for external power supply.

70 Meters OM3 LSZH AOC Fiber Optical Cable 48Gbps 8K HDMI 2.1

Physical / Environment

Cable OD 4.4mm
Tensile (Long-term / Short-term) 150N (IEC-60794-1-21)
Bending (Long-term / Short-term) 110N/100mm (IEC-60794-1-21)
Maximum Bending Radius 50mm (IEC-60794-1-21)
Operating / Storage Temp. 0℃ ~ 50℃ /-20℃ ~ 70℃

Application

Home theater.
LED control room.
Multimedia conference room.
Fusion System Simulation.
Exhibitor display.
Commercial retailer.
VR system.
Experience center.
HD Surveillance System.

Technical Parameter

Cable Length Max 70 meters
Connector Type HDMI Standard Type A (Male) - HDMI Standard Type A (Male)
Cable Type Hybrid Optical Cable with OM3 Fiber and Copper Wire
HDMI Version 2.1
Supports Resolutions Supports resolutions up to: 8K@60Hz 4:4:4
HDCP 1.4/2.2/2.3
Power Consumption 225mW (current less than 45mA)
Power Supply No external power supply required, 5V (international standard) is taken from the HDMI interface of the main device
Jacket LSZH, TPU for customized
HDTV 7680*4320@60Hz
Bandwidth 48 Gbps
Regulatory Compliance CE, FCC, RoHs compliant

70 Meters OM3 LSZH AOC Fiber Optical Cable 48Gbps 8K HDMI 2.1

70 Meters OM3 LSZH AOC Fiber Optical Cable 48Gbps 8K HDMI 2.1
