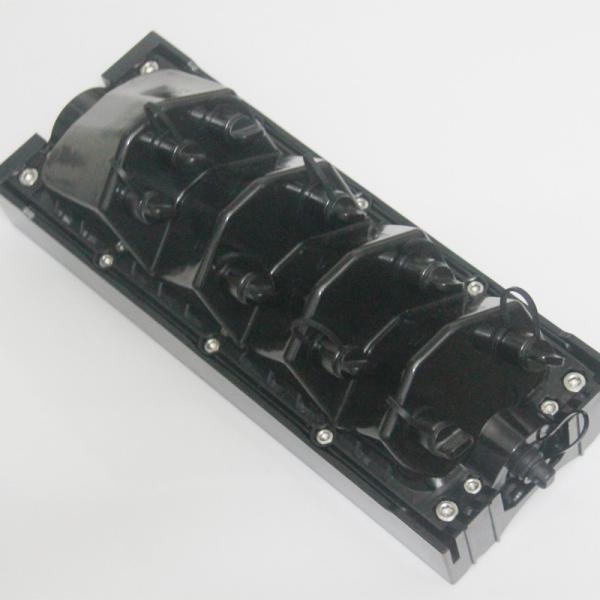

IP68 12 Ports Terminal Termination Box HUAWEI Fast Connect Multi Ports Service
IP68 12 Ports Terminal Termination Box HUAWEI Fast Connect Multi Ports Service
IP68 12 Ports Terminal Termination Box HUAWEI Fast Connect Multi Ports Service
IP68 12 Ports Terminal Termination Box HUAWEI Fast Connect Multi Ports Service
Specifications
Brand Name :
Hangalaxy
Model Number :
737
Certification :
CE, SGS, RoHs, UL
Place of Origin :
China
MOQ :
MOQ Saying is 10pcs
Price :
Negotiation By email or Phone Call
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5055PCS Monthly
Delivery Time :
7 Business Days
Packaging Details :
1PCS Each Individual Quality PE Bag
Material :
PC
Fiber Ports :
12
Waterproof :
IP68
Terminals :
12
Fiber Mode :
Singlemode
Adapter Mode :
Huawei FastConnect
Description

IP68 12 Ports HUAWEI FastConnect Multi-ports Service Terminal Termination Box

Product Description

The NEATEL FiberHub supports distributed split architecture which is designed to push the PON splitters further into the network and closer to the customer’s premise with multiple levels of splitting. In order to support this network architecture we has developed a small form factor, factory sealed, closure that will house up to a 1 x 16 splitter. We also have a family of FTTH network access terminal and hardened fiber optic connectors to support the plug-and-play demands of the market. We offer network distribution points in various configurations and footprints. The NEATEL FiberHub is ideally suited for applications where customization and future expansion is required. Various port options and connector styles allow for flexibility and customization depending on the number of outputs needed. Robust plastic design is factory sealed to guarantee IP68 ingress protection and applicable GR-3120-Core requirements.

IP68 12 Ports Terminal Termination Box HUAWEI Fast Connect Multi Ports Service

IP68 12 Ports Terminal Termination Box HUAWEI Fast Connect Multi Ports Service

Application

1) FTTH;
2) FTTA;
3) Trunk Cable Connecting.

Features

1) High compatibility: can be assembled SuperTap(OptiTap compatible), Fast SC connector, ODC, PTLC, PTMPO or power adapter;
2) Strong enough: working under 1000N pulling force long term;
3) From 2 to 12 ports for single or multifiber harsh connectors;
4) Available with PLC or splice sleeve for fiber divide;
5) IP68 waterproof rating;
6) Wall-mounting, aerial installation or holding pole installation;
7) Decreased angle surface and height make sure no connector interfering when operating;
8) Cost effective: save 40% operating time.

Technical Parameter

Dimension (L x W x H) 365x135x90mm(without cover) 374x143x120mm(with Base)
Ingress protection IP68
Cable strength member Amoured or Non-armored
Cable type Hybrid or non-hybrid
Input 5.0mm to 14mm OD cable or adapter
Input flat cable OD 4.6mmx8.9mm
Cable crush resistance 200N/cm long term
Tensile strength 1000N
UV resistance ISO 4892-3
Fire protection rating UL94-V0
Number of PLC 1 or 2pcs

IP68 12 Ports Terminal Termination Box HUAWEI Fast Connect Multi Ports Service
