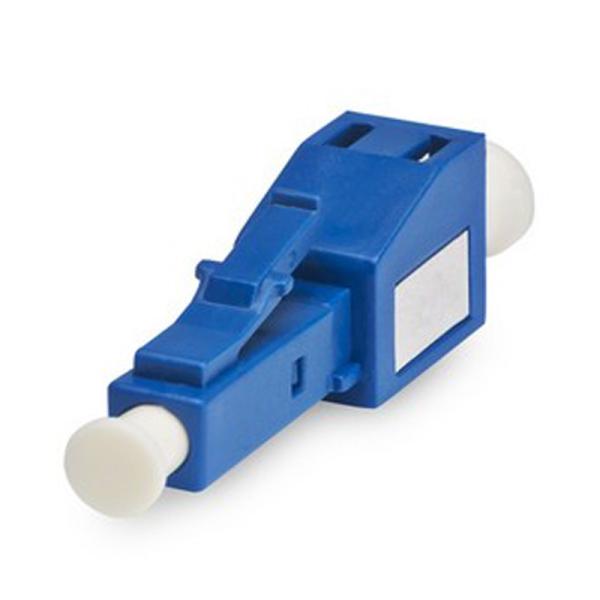

LC UPC Single Mode Fixed Fiber Optic Attenuator 1550nm 15dB Polarization Insensitive
LC UPC Single Mode Fixed Fiber Optic Attenuator 1550nm 15dB Polarization Insensitive
Specifications
Brand Name :
Hanglaxy
Model Number :
HGYN-002
Certification :
CE, UL, SGS, ROHS, ISO9001
Place of Origin :
China
MOQ :
MOQ Saying is 10pcs
Price :
Negotiation By email or Phone Call
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
15000PCS Monthly
Delivery Time :
7 Business Days
Packaging Details :
1PCS Each Individual Quality PE Bag
Attenuator Tolerance :
<5 dB: +0.4
Fiber Mode :
Singlemode
Connector Type :
LC UPC
Wavelength :
1310nm
Return Loss :
45dB
Description

1550nm 15dB LC UPC Fixed Singlemode Fiber Optic Hybrid Attenuators

Ideal Applications


1.Telecommunications systems;
2. CATV & LAN systems;
3. Test and data equipment;
4. Passive Optical Networks;
5. Test Areas/Labs.

Keyed Characteristic


1. Very cost-effective;
2. Excellent stability and repeatability;
3. Environmentally stable;
4. Polarization insensitive.

Technical Parameter

Attenuation values 0~10 dB / 15dB / 20dB / 25dB /Specified
Polish Type PC UPC APC
Return Loss 50dB 55dB 65dB
Connector Type FC, SC, ST, LC, MU, E2000, MPO FC, SC, E2000, LC, MPO
Attenuation Accuracy <±0.45dB for 0-10dB , <±1dB for 11-30dB
Wave Length 850nm, 1310nm 1550nm, 1310nm & 1550nm
Bandwidth ±40nm
Operating Temperature -40℃ ~ +80℃
Storage Temperature -55℃ ~ +85℃
Ferrule Material Ceramic

Ordering Information - Optical Attenuator

Fiber Type Connector Type Polish Type Attenuation Operating Wavelength

5-50/125 6-62.5/125 9-9/125

O-OM3

F-FC

S-SC

T-ST

L-LC

M-MU

P-PC

U-UPC

A-APC

00-0dB

01-1dB

02-2dB

03-3dB

05-5db

07-7dB

10-10dB

15-15dB

20-20dB

25-25dB

1-850nm

2-1310nm

3-1550nm 4-1310/1550nm

5-1310/1490nm

Other Hangalaxy Products

Passive Optical Components, Fixed/Variable Attenuators, Fiber Patch Cords and Pigtails, Couplers and Splitters.

Hangalaxy Exhibition Activities

LC UPC Single Mode Fixed Fiber Optic Attenuator 1550nm 15dB Polarization Insensitive

Optical attenuators are typically classified as fixed or variable attenuators. Fixed attenuators have a fixed optical power reduction number, such as 1dB, 5dB, 10dB, etc. Variable attenuators’ attenuation level can be adjusted, such as from 0.5 dB to 20dB, or even 50dB. Some variable attenuators have very fine resolution, such as 0.1dB, or even 0.01dB.

Shipment Available

LC UPC Single Mode Fixed Fiber Optic Attenuator 1550nm 15dB Polarization Insensitive
