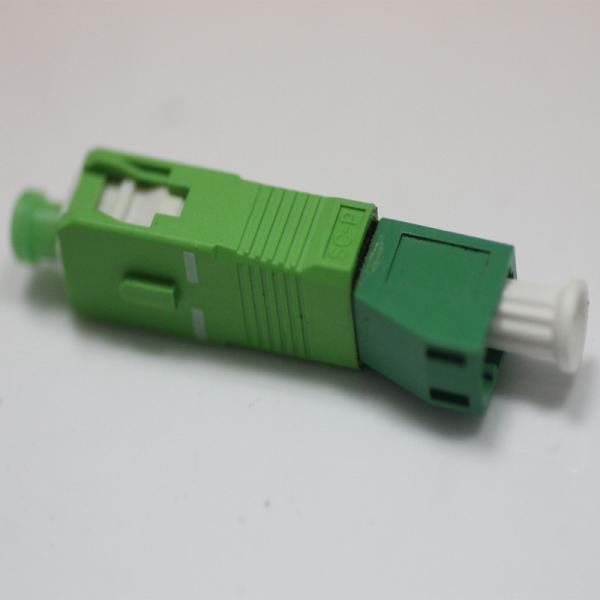

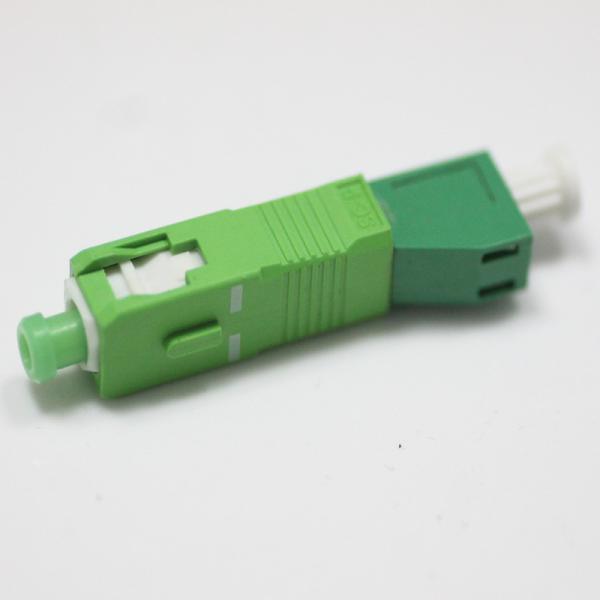

10dB Fiber Optic Attenuators Single Mode LC APC Male to SC APC Female
10dB Fiber Optic Attenuators Single Mode LC APC Male to SC APC Female
10dB Fiber Optic Attenuators Single Mode LC APC Male to SC APC Female
10dB Fiber Optic Attenuators Single Mode LC APC Male to SC APC Female
10dB Fiber Optic Attenuators Single Mode LC APC Male to SC APC Female
10dB Fiber Optic Attenuators Single Mode LC APC Male to SC APC Female
10dB Fiber Optic Attenuators Single Mode LC APC Male to SC APC Female
10dB Fiber Optic Attenuators Single Mode LC APC Male to SC APC Female
Specifications
Brand Name :
Hangalaxy
Model Number :
HGYN-0102
Certification :
CE, UL, SGS, ROHS
Place of Origin :
China
MOQ :
MOQ Saying is 10pcs
Price :
Negotiation By email or Phone Call
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
15000PCS Monthly
Delivery Time :
7 Business Days
Packaging Details :
1PCS Each Individual Quality PE Bag
Polish Type :
APC
Color :
Green
Connector Type :
LC
Ferrule Type :
Zirconia Ceramic
Connector Gender :
Fixed Male to Female
Transfer Mode :
Singlemode
Attenuation :
10dB
Max Optical Input Power :
200mW
Description

10dB LC APC Male to SC APC Female Fiber Optic Attenuators

Products Description


Fiber Optic Attenuator is a component installed in a fiber optic transmission system that reduces the power in the optical signal. It is often used to limit the optical power received by the photo detector to within the limits of the optical receiver.

Feature

(1) Low back reflection and Low PDL;
(2) High precision attenuation value;
(3) Precision control of attenuation range;
(4) Wide attenuation range;
(5) Precision ceramic ferrule;
(6) FC, SC, ST, LC … optional;
(7) Plastic or metal housing material.

Application

1. Fiber optical telecommunication system;
2. Fiber optical CATV;
3. Fiber optical sensor;
4. Testing equipment.

Technical Parameter

Connector Type LC
Polish Type APC
Color Green
Attenuation 10dB
Ferrule Type Zirconia Ceramic
Attenuation Accuracy ±0.5dB
Return Loss ≥45dB
Max Optical Input Power 200mW
Humidity 95%RH
Polarization Dependent Loss ≤0.2dB

Item Specifications
Wavelength 850 nm (Multi-Mode 50/125um)
Attenuation Tolerance (dB) 2dB,5dB,10dB <±1.0dB ( typical ) standard
15dB<±10% ( typical ) standard
2dB,5dB,10dB <±0.5dB ( typical ) premium
15dB<±5% ( typical ) premium
Return Loss /
Operating Temperature -40℃~+85℃
Storage Temperature -40℃~+85℃

10dB Fiber Optic Attenuators Single Mode LC APC Male to SC APC Female

Keyed Characteristis


(1) Precise attenuation values;
(2) Low PDL & insertion loss;
(3) Precisional reflection polishing.

1. Flexiable case for easy portability


Accurate size armed with elegant dust cap, better ensure the handy installation and protection from out-service.

2. Durable plastic shell for permanent protection


Shaped with precision refined Polymer, our attenuators perfectly protect the core insert from external damage.

3. Elaborately designed packing for no-damage delivery


Professional designed 10-pack bag, fitting size will maximum buffered the collision in transit and ensure no-damage delivery.

Hangalaxy Factory Overview

10dB Fiber Optic Attenuators Single Mode LC APC Male to SC APC Female

10dB Fiber Optic Attenuators Single Mode LC APC Male to SC APC Female

Packing Detail as bellow

FBG Array is a series of Bragg grating written on a single optical fiber. It can meet the requirements for long monitoring and multi-points monitoring. It can improve the stability and reliability, as well as simplify the system. Hangalaxy can customize the FBG array for different customers.
