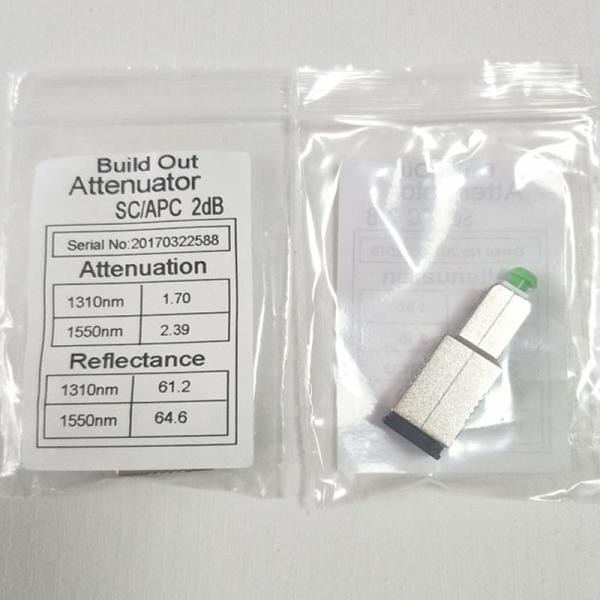

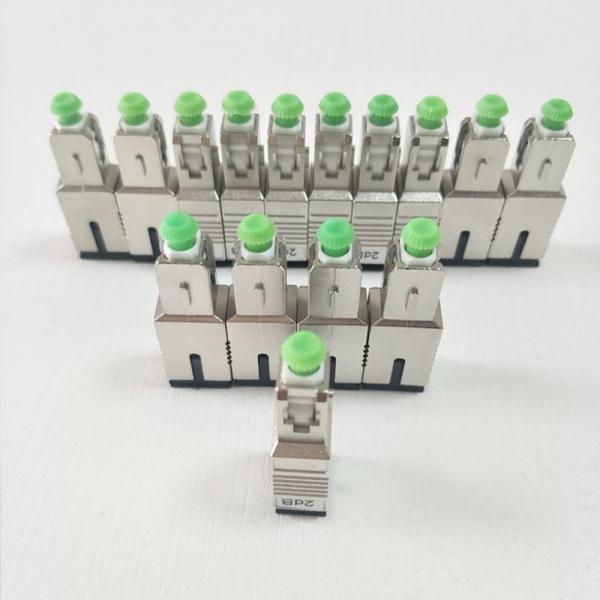

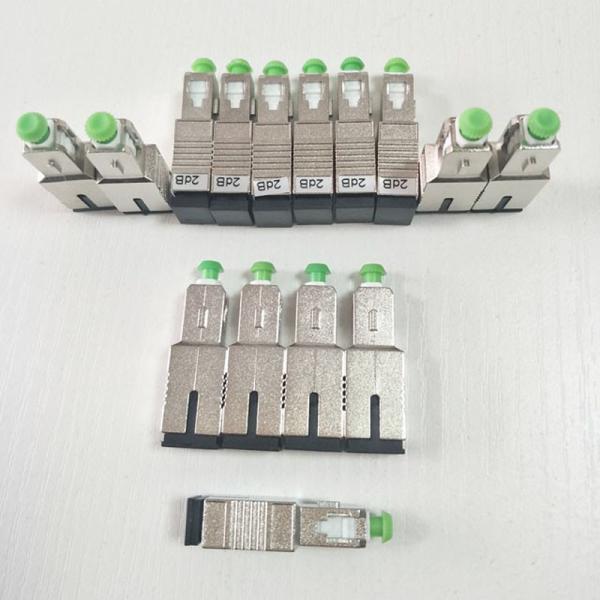

Male and Female Fixed SC APC Single Mode Optical Fiber Optic Attenuator

Fiber Optic Attenuator is a passive device used to reduce the amplitude of a light signal without significantly changing the wave form itself.

This is often a requirement in Dense Wave Division Multiplexing(DWDM) and Erbium Doped Fiber Amplifier(EDFA) applications where the receiver cannot accept the signal generated froma high-power light source. Hangalaxy attenuator are capable of withstanding over 1W of high power light exposure for extended periods of time, making them well-suited to EDFA and other high-power applications.Low Polarization Dependent Loss (PDL) and a stable and independent wavelength distribution makes them ideal for DWDM.

Complied with or exceeds Standard

1. Telcorida GR-326-CORE(ferrule end face quality compliant);

2. Telecordia GR-910-CORE;

3. EC 60874-7, F01(JIS C5970) TIA/EIA-604-4A;

4. TIA/EIA-568B-B.3 Fiber Optic Cabling Components Standard;

5. EEE802.3z Standards for Fiber Optic Cabling;

6. RoHS Approved for European Market Requirements.

Application

1. Telecommunication networks;

2. Passive Optical Networks;
3. Date networks;

4. CATV & LAN.

Technical Parameter

Hangalaxy attenuator feature a proprietary type of metal-ion doped fiber which reduces the light signal as it passesthrough. This method of attenuation allows for higher performance than fiber splices or fiber offsets or fiber clearance, which function by misdirecting rather than absorbing the light signal. Hanagalxy attenuator are capable of performing in the 1310nm and 1550nm.

Hangalaxy Workshop

Hangalaxy Exhibition Activities

Quality Guarantee

Hangalaxy has those fiber optical attenuators in stock and ready to ship. This cable is tested for 100% functionality and guaranteed compatible for outstanding network performance. Now you have a reliable, compatible and affordable means to expand your network while maintaining its integrity. We can provide this cable in any lengths. If the length you need is not listed on our website, please feel free to contact us.
