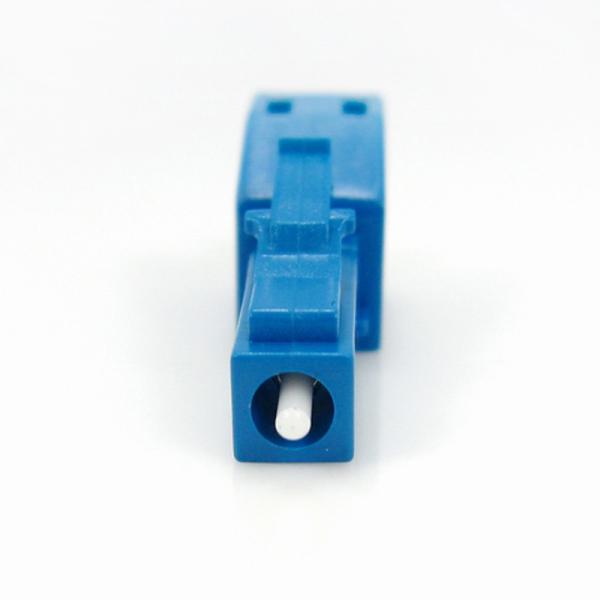

5dB LC UPC Fixed Fiber Optic Attenuator Single Mode Blue Color Housing
5dB LC UPC Fixed Fiber Optic Attenuator Single Mode Blue Color Housing
Specifications
Brand Name :
Hangalaxy
Model Number :
HGYN-098
Certification :
CE, UL, SGS, ROHS
Place of Origin :
China
MOQ :
MOQ Saying is 10pcs
Price :
Negotiation By email or Phone Call
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
15000PCS Monthly
Delivery Time :
7 Business Days
Packaging Details :
1PCS Each Individual Quality PE Bag
Connector Type :
LC
Ferrule Type :
Zirconia Ceramic
Connector Gender :
Fixed Male to Female
Transfer Mode :
Singlemode
Attenuation :
5dB
Max Optical Input Power :
200mW
Description

5dB LC UPC Fixed Singlemode Fiber Optic Attenuator Blue Housing

Application

Optical attenuator is a passive device used to reduce the power level of an optical signal. It is generally used in single-mode long-haul applications to prevent optical overload at the receiver. Optical attenuator is widely used in CWDM&DWDM, CATV systems, data center networks, test equipment and other high power applications.

Technical Parameter

Connector Type LC
Polish Type UPC
Color Blue
Attenuation 5dB
Ferrule Type Zirconia Ceramic
Attenuation Accuracy ±0.5dB
Return Loss ≥45dB
Max Optical Input Power 200mW
Humidity 95%RH
Polarization Dependent Loss ≤0.2dB

Item Specifications
Wavelength 850 nm (Multi-Mode 50/125um)
Attenuation Tolerance (dB) 2dB,5dB,10dB <±1.0dB ( typical ) standard
15dB<±10% ( typical ) standard
2dB,5dB,10dB <±0.5dB ( typical ) premium
15dB<±5% ( typical ) premium
Return Loss /
Operating Temperature -40℃~+85℃
Storage Temperature -40℃~+85℃

Features


(1) Precise attenuation values;
(2) Low PDL & insertion loss;
(3) Precisional reflection polishing.

1. Flexiable case for easy portability


Accurate size armed with elegant dust cap, better ensure the handy installation and protection from out-service.

2. Durable plastic shell for permanent protection


Shaped with precision refined Polymer, our attenuators perfectly protect the core insert from external damage.

3. Elaborately designed packing for no-damage delivery


Professional designed 10-pack bag, fitting size will maximum buffered the collision in transit and ensure no-damage delivery.
