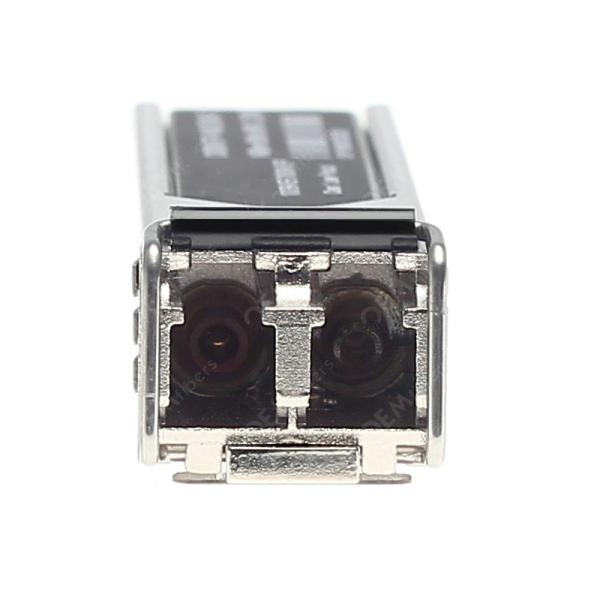

1470nm 40km 10Gbps LC CWDM Singlemode Fiber Optical SFP Transceiver


for multimode fiber, with black or beige extraction lever
SX - 850 nm, for a maximum of 550 m at 1.25 Gbit/s (gigabit Ethernet) or 150m at 4.25 Gbit/s
for singlemode fiber, with blue extraction lever
LX - 1310 nm, for distances up to 10 km
EX - 1310 nm, for distances up to 40 km
ZX - 1550 nm, for distances up to 80 km, with green extraction lever (see GLC-ZX-SM1)
EZX - 1550 nm, for distances up to 160 km
BX - 1490 nm/1310 nm, Single Fiber Bi-Directional Gigabit SFP Transceivers, paired as BS-U and BS-D for Uplink and Downlink respectively, also for distances up to 10 km. Variations of bidirectional SFPs are also manufactured which use 1550 nm in one direction. 1550 nm 40 km (XD), 80 km (ZX), 120 km (EX or EZX) SFSW – Single Fiber Single Wavelength transceivers, for bi-directional traffic on a single fiber. Coupled
with CWDM, these double the traffic density of fiber links. CWDM and DWDM transceivers at various wavelengths achieving various maximum distances.
for copper twisted pair cabling
1000BASE-T - these modules incorporate significant interface circuitry and can only be used for gigabit
Ethernet, as that is the interface they implement.

Application
• Switch to Switch Interface.
• Gigabit Ethernet.
• Switched Backplane Applications.
• Router/Server Interface.
• Other Optical Links.
Keyed Characteristic
• Up to 1.25Gb/s data links.
• DFB laser transmitter and PIN photo-detector.
• Up to 80km on 9/125µm SMF.
• Hot-pluggable SFP footprint.
• Duplex LC/UPC type pluggable optical interface.
• Low power dissipation.
• Metal enclosure, for lower EMI.
• RoHS compliant and lead-free.
• Single +3.3V power supply.
• Support Digital Diagnostic Monitoring interface.
• Compliant with SFF-8472.
• Case operating temperature: 0°C to +70°.
Product Selection

Pin Descriptions

Notes:

1.Circuit ground is internally isolated from chassis ground.
2.Laser output disabled on TDIS >2.0V or open, enabled on TDIS <0.8V.
3.Should be pulled up with 4.7k - 10kohms on host board to a voltage between 2.0V and 3.6V.MOD_DEF (0) pulls line low to indicate module is plugged in.
4.This is an optional input used to control the receiver bandwidth for compatibility with multiple data rates (most likely Fiber Channel 1x and 2x Rates).If implemented, the input will be internally pulled down with > 30kΩ resistor.


We Offer Compatibles Service:



Quality Guarantee

Hangalaxy has those Fiber Optic Transceivers in stock and ready to ship. This cable is tested for 100% functionality and guaranteed compatible for outstanding network performance. Now you have a reliable, compatible and affordable means to expand your network while maintaining its integrity. We can provide this cable in any lengths. If the length you need is not listed on our website, please feel free to contact us.

Products Description

These adapters come with flange for added stability by screw-mounting the adapter to your adapter plate. Reduced flange models are also available. Adapters ship with standard plug-style dust caps.
