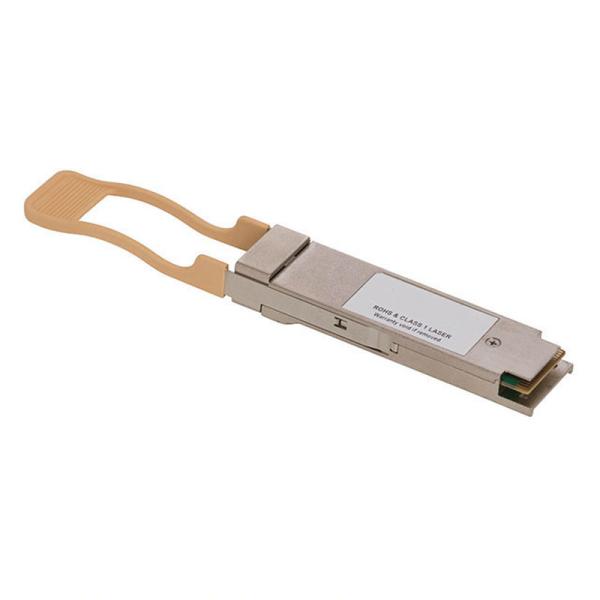

100Gig Ethernet Fiber Transceiver Module 10Km QSFP28 LR4 850nm Wavelength
100Gig Ethernet Fiber Transceiver Module 10Km QSFP28 LR4 850nm Wavelength
100Gig Ethernet Fiber Transceiver Module 10Km QSFP28 LR4 850nm Wavelength
100Gig Ethernet Fiber Transceiver Module 10Km QSFP28 LR4 850nm Wavelength
Specifications
Brand Name :
Hangalaxy
Model Number :
HGYN-5877
Certification :
CE, UL, SGS, ROHS, ISO9001
Place of Origin :
China
MOQ :
MOQ Saying is 10pcs
Price :
Negotiation By email or Phone Call
Payment Terms :
L/C, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
15000PCS Monthly
Delivery Time :
7 Business Days
Packaging Details :
1PCS Each Individual Quality PE Bag
Form Factor :
QSFP28
Max Data Rate :
103.1 Gbps
Wavelength :
850nm
Media :
MMF
Receiver Type :
PIN
Transmitter Type :
VCSEL 850nm
DDM/DOM :
Supported
Extinction Ratio :
3dB
Description

100 Gigabit Ethernet 10Km QSFP28 LR4 Fiber Optical Transceivers


Features
(1) Supports 100GBASE-LR4 for line rate of 103.125 Gbps and OTU4 for line rate of 111.81 Gbps;
(2) Integrated LAN WDM TOSA / ROSA for up to 10 km reach over SMF-28;
(3) Duplex single mode LC optical receptacle;
(4) Operating temperature range from 0°C to 70°C;
(5) Low power dissipation < 3.5 W or < 4 W or < 4.5 W;
(6) Single 3.3 V power supply;
(7) External reference clock is not required;
(8) Compliant with CEI-28G-VSR/CAUI-4 electrical interface;
(9) Digital Diagnostic Monitoring Support;
(10) Tx and Rx re-timers;
(11) Hot pluggable 38-pin electrical interface;
(12) 2-wire I2C management interface;
(13) Blue handle.

Applications
(1) Local area networks (LAN);
(2) Wide area networks (WAN);
(3) Ethernet switches and router applications.

Technical Parameter

PinNameDescriptionPlug SequenceNotes
1GNDGround1
2Tx2nTransmitter Inverted Data Input3
3Tx2pTransmitter Non-Inverted Data Input3
4GNDGround1
5Tx4nTransmitter Inverted Data Input3
6Tx4pTransmitter Non-Inverted Data Input3
7GNDGround1
8ModSelLModule Select3
9ResetLModule Reset3
10Vcc Rx+3.3 V Power supply receiver2
11SCL2-wire serial interface clock3
12SDA2-wire serial interface data3
13GNDGround1
14Rx3pReceiver Non-Inverted Data Output3
15Rx3nReceiver Inverted Data Output3
16GNDGround1
17Rx1pReceiver Non-Inverted Data Output3
18Rx1nReceiver Inverted Data Output3
19GNDGround1
20GNDGround1
21Rx2nReceiver Inverted Data Output3
22Rx2pReceiver Non-Inverted Data Output3
23GNDGround1
24Rx4nReceiver Inverted Data Output3
25Rx4pReceiver Non-Inverted Data Output3
26GNDGround1
27ModPrsLModule Present3
28IntLInterrupt3
29Vcc Tx+3.3 V Power supply transmitter2
30Vcc1+3.3 V Power Supply2
31LPModeLow Power Mode3
32GNDGround1
33Tx3pTransmitter Non-Inverted Data Input3
34Tx3nTransmitter Inverted Data Input3
35GNDGround1
36Tx1pTransmitter Non-Inverted Data Input3
37Tx1nTransmitter Inverted Data Input3
38GNDGround1


Absolute Maximum Ratings

ParameterSymbolUnitMinMax
Storage Temperature RangeTsoC-4085
Relative HumidityRH%095
Maximum Supply VoltageVcc3V-0.54.0


Compliance
1. IEEE 802.3-2015 Clause 88 standard;
2. IEEE 802.3-2015 Clause 83E standard;
3. ITU-T G.959.1-2016-04 standard;
4. OIF-CEI-03.1 CEI-28G-VSR standard;
5. SFF-8661 Rev 2.3 QSFP28 Module Mechanical;
6. SFF-8679 Rev 1.7 QSFP28 Base Electrical;
7. SFF-8636 Rev 2.7 Common Management Interface;
8. Class 1 laser safety;
9. Tested in accordance with Telcordia GR-468;
10. RoHS 6/6.



Hangalaxy provides SFP transceivers for both MultiMode as SingleMode fiber, compatible with most of today’s switch vendors. Hangalaxy’s Dual Fiber SFP’s support data ranges between 100 Mbit/s and 4.25 Gbps and distances up to 160 km. Go to the Hangalaxy SFP product range.
