Fiber Optic Grating FBG Reflector Filter FTTH 1650nm Monodirectional
Fiber Optic Grating FBG Reflector Filter FTTH 1650nm Monodirectional
Fiber Optic Grating FBG Reflector Filter FTTH 1650nm Monodirectional
Fiber Optic Grating FBG Reflector Filter FTTH 1650nm Monodirectional
Fiber Optic Grating FBG Reflector Filter FTTH 1650nm Monodirectional
Fiber Optic Grating FBG Reflector Filter FTTH 1650nm Monodirectional
Fiber Optic Grating FBG Reflector Filter FTTH 1650nm Monodirectional
Fiber Optic Grating FBG Reflector Filter FTTH 1650nm Monodirectional
Specifications
Brand Name :
Hangalaxy
Model Number :
HGYN-004
Certification :
CE, UL, SGS, ROHS, ISO9001
Place of Origin :
China
MOQ :
MOQ Saying is 10pcs
Price :
Negotiation By email or Phone Call
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
15000PCS Monthly
Delivery Time :
7 Business Days
Packaging Details :
1PCS Each Individual Quality PE Bag
Connector Type :
SC APC
Wavelength :
1650nm
Polish Type :
APC
Bandwidth :
2±0.2nm
Reflectivity :
10%
Tensile Strength :
100Kpsi
Description

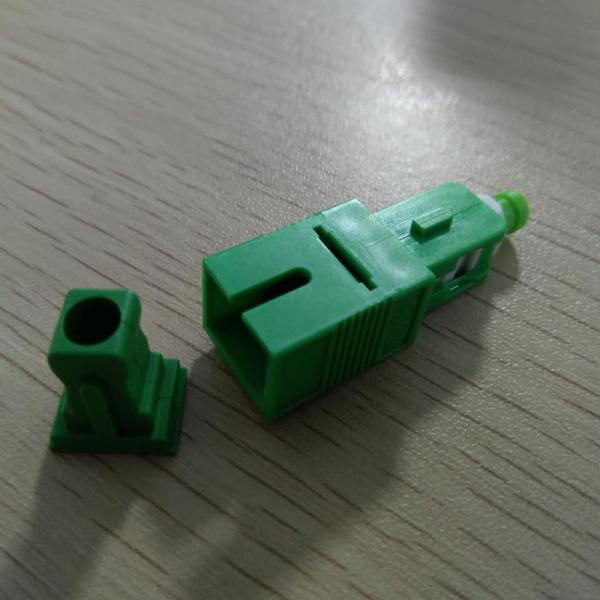

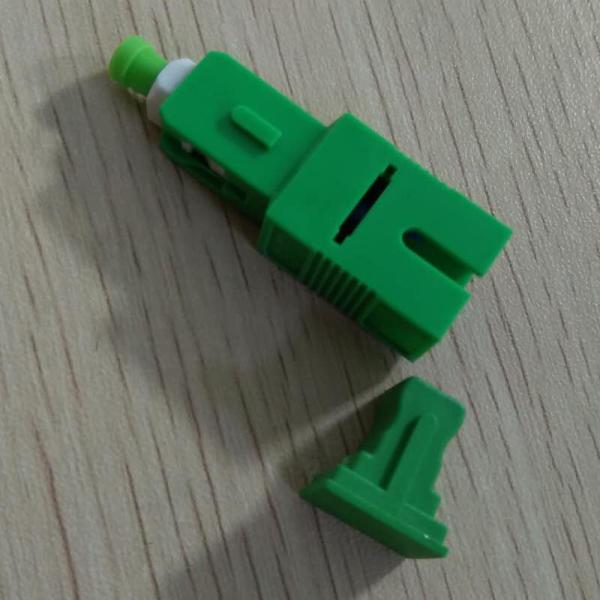

FTTH 1650nm Monodirectional SC APC Fiber Optic Grating Reflector FBG Filter

Reflector at 1650 nm reflects all wavelengths from 1645 to 1655nm. With its low insertion loss in the transmission wavelength range and high reflectivity in the reflection wavelength range it is the ideal optical termination for FTTX network link monitoring, FTTX reflectors are suitable for both point to point (PTP) and point to multipoint (PTMP) networks. Easy to install in the user's home, so as to determine the location of the optical path fault through different reflections of the test signal.

Feature

(1) Wavelength selectable, high reflectivity;
(2) FBG in ceramic ferrule, not affected by dirt;
(3) Interacting with conventional adapters, very convenient to use;
(4) UL94-V0 fire rating and RoHs environmental requirements meet.

Application

(1) FTTX;
(2) OTDR;
(3) WDM-PON;
(4) Testing on communication system links

Keyed Characteristics


(1) High Stability and Reliability;
(2) High Accuracy for Wavelength Control;
(3) High SMSR;
(4) Easy Connection for Adapter Structure;
(5) Compliant with Telcordia GR-1221-CORE;
(6) Compliant with RoHS.

Specification

Item Parameter Specification Unit Remarks
1 Center Wavelength 980/1480 nm ±0.3
2 Reflectivity 0.5~10 %
3 Band 0.1~2 nm ±0.05
4 SMRS >25 dB
5 Recoating Acrylate -
6 Tensile Strength >100 Kpsi
7 Fiber Type Hi980, Hi1060, PM980 - Customizable
8 Pigtails Length 1 m Customizable

Parameter Specification Unit Remarks
Grating Type High Reflectivity Grating Low Reflectivity Grating - nm
Center Wavelength 1064±0.5 1064±0.5 %
Matching Tolerance 0.2 nm
Bandwidth 2±0.2 1±0.2 nm Customizable
SMSR >15 dB
Withstand Power 30W, 100W -
Tensile Strength 80 Kpsi
Pigtail Length 0.5 m Customizable
Fiber Type Nufren-LMA-GDF-10/130-M - Customizable

Fiber Optic Grating FBG Reflector Filter FTTH 1650nm Monodirectional

Ideal Applications


(1) Telecommunications systems;
(2) CATV & LAN systems;
(3) Test and data equipment;
(4) Passive Optical Networks;
(5) Test Areas/Labs

Hangalaxy Workshop

Fiber Optic Grating FBG Reflector Filter FTTH 1650nm Monodirectional
