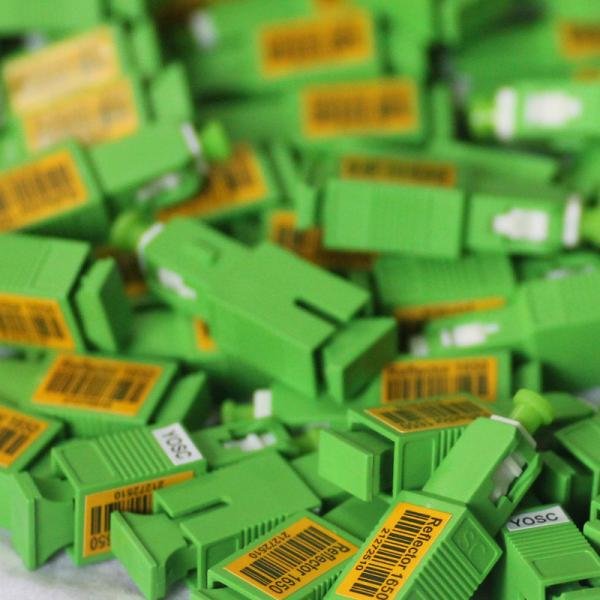

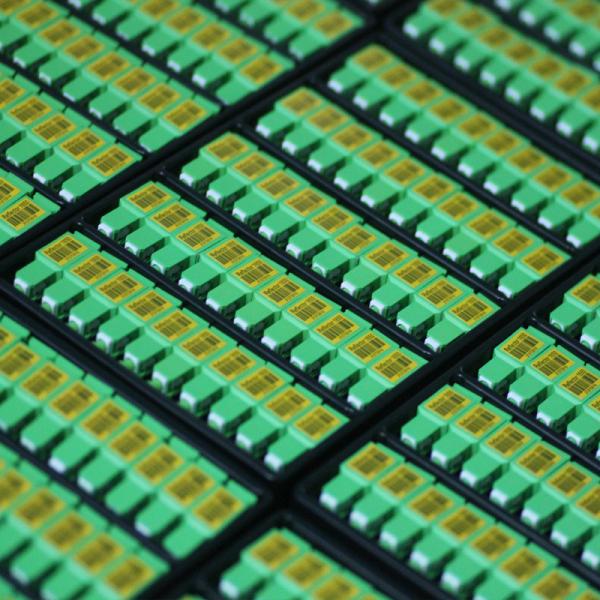

SC APC Fiber Optic FBG Reflector Filter Bidirectional OTDR 100Kpsi Tensile
SC APC Fiber Optic FBG Reflector Filter Bidirectional OTDR 100Kpsi Tensile
SC APC Fiber Optic FBG Reflector Filter Bidirectional OTDR 100Kpsi Tensile
SC APC Fiber Optic FBG Reflector Filter Bidirectional OTDR 100Kpsi Tensile
SC APC Fiber Optic FBG Reflector Filter Bidirectional OTDR 100Kpsi Tensile
SC APC Fiber Optic FBG Reflector Filter Bidirectional OTDR 100Kpsi Tensile
SC APC Fiber Optic FBG Reflector Filter Bidirectional OTDR 100Kpsi Tensile
SC APC Fiber Optic FBG Reflector Filter Bidirectional OTDR 100Kpsi Tensile
Specifications
Brand Name :
Hangalaxy
Model Number :
HGYN-003
Certification :
CE, UL, SGS, ROHS, ISO9001
Place of Origin :
China
MOQ :
MOQ Saying is 10pcs
Price :
Negotiation By email or Phone Call
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
15000PCS Monthly
Delivery Time :
7 Business Days
Packaging Details :
1PCS Each Individual Quality PE Bag
Connector Type :
SC APC
Wavelength :
1625nm
Polish Type :
APC
Bandwidth :
2±0.2nm
Reflectivity :
10%
Tensile Strength :
100Kpsi
Description

1625nm Bidirectional OTDR SC APC FBG Fiber Optic Reflector Filter

The wavelength-lock fiber gratings can effectively improve the output power of the light source and the accuracy and reliability of the output light wavelength, reduce the spectral mode jump of the pump laser, and reduce the optical power fluctuation caused by temperature changes and drive current changes, so improve pump laser performance. The wavelength lockers are suitable for laser diodes of 980nm and 1480nm wavelengths. Depending on the pump laser locking requirements, the wavelength-locked grating can be either single-grating or dual-grating.

Keyed Characteristics


(1) High Stability and Reliability;
(2) High Accuracy for Wavelength Control;
(3) High SMSR;
(4) Easy Connection for Adapter Structure;
(5) Compliant with Telcordia GR-1221-CORE;
(6) Compliant with RoHS.

Specification

Item Parameter Specification Unit Remarks
1 Center Wavelength 980/1480 nm ±0.3
2 Reflectivity 0.5~10 %
3 Band 0.1~2 nm ±0.05
4 SMRS >25 dB
5 Recoating Acrylate -
6 Tensile Strength >100 Kpsi
7 Fiber Type Hi980, Hi1060, PM980 - Customizable
8 Pigtails Length 1 m Customizable

Parameter Specification Unit Remarks
Grating Type High Reflectivity Grating Low Reflectivity Grating - nm
Center Wavelength 1064±0.5 1064±0.5 %
Matching Tolerance 0.2 nm
Bandwidth 2±0.2 1±0.2 nm Customizable
SMSR >15 dB
Withstand Power 30W, 100W -
Tensile Strength 80 Kpsi
Pigtail Length 0.5 m Customizable
Fiber Type Nufren-LMA-GDF-10/130-M - Customizable

SC APC Fiber Optic FBG Reflector Filter Bidirectional OTDR 100Kpsi Tensile

SC APC Fiber Optic FBG Reflector Filter Bidirectional OTDR 100Kpsi Tensile

SC APC Fiber Optic FBG Reflector Filter Bidirectional OTDR 100Kpsi Tensile

Ideal Applications


(1) Telecommunications systems;
(2) CATV & LAN systems;
(3) Test and data equipment;
(4) Passive Optical Networks;
(5) Test Areas/Labs

Hangalaxy Workshop

SC APC Fiber Optic FBG Reflector Filter Bidirectional OTDR 100Kpsi Tensile
