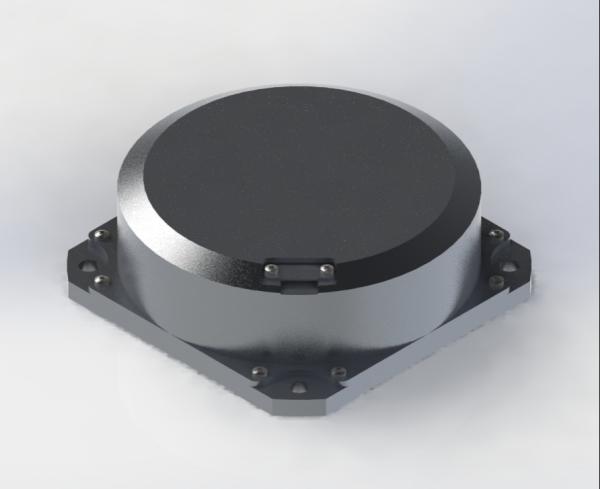

Power Supply 5V Fiber Optic Gyroscope for Aerospace Applications
Power Supply 5V Fiber Optic Gyroscope for Aerospace Applications
Specifications
Brand Name :
JTZG
Place of Origin :
china
MOQ :
negotiable
Price :
negotiable
Delivery Time :
According to customer's requirement
Payment Terms :
Negotiable
Supply Ability :
Strong production capacity
Grade :
Industrial
Power Supply :
-5,+5V
Module Type :
Gyroscope
Product Name :
Single Axis Gyroscope
Applications :
Aerospace, Defense, Navigation, Robotics
Original Place :
China
Operating Temperature :
-40°C To +85°C
Features :
Digital Closed-loop Mode
Description

Product Description:

The Fiber Optic Gyroscope is an advanced technology product designed for precise measurement of angular velocity. Originating from China, this cutting-edge device is equipped with a Digital Closed-loop Mode, ensuring accurate and reliable performance in various applications.

As a part of the Fiber Optic family, this gyroscope serves as a crucial component in systems such as Fiber Optic Inertial Navigation Systems and Fiber Optic Inertial Measurement Units. Its high level of sensitivity and precision make it ideal for use in demanding environments.

The Single Axis Gyroscope is built to withstand extreme conditions, with an operating temperature range from -40°C to +85°C. This wide temperature tolerance ensures the device's functionality even in harsh climates or industrial settings.

Powered by a dual power supply of -5V to +5V, this gyroscope offers flexibility in integration with various systems and equipment. The robust power supply range enables seamless operation and compatibility with different power sources.

Overall, the Fiber Optic Gyroscope serves as a reliable Fiber Optic Angular Velocity Sensor, catering to industries that require precise measurement and control of angular motion. Its advanced features and high performance capabilities make it a top choice for applications demanding accuracy and stability.

Gyro Level standard A B C
Range ( °/s) ±150 ±150 ±120 ±40
Bias stability ( °/h) , 100 s < 0.01​ < 0.01 < 0.005 < 0.003
Zero bias repeatability ( °/h) < 0.01​ < 0.01​ < 0.005 < 0.003
Random walk coefficient ( °/√h) ＜0.001 ＜0.001 < 0.0005 < 0.0003
Scale factor non-linearity ( ppm ) ＜30 ＜30 < 20 < 10
Scale factor asymmetry ( ppm ) ＜30 ＜30 < 20 < 10
Scale factor repeatability ( ppm ) ＜30 ＜30 < 20 < 10
Frequency bandwidth ( Hz ) ≥100
Startup time ( s ) ≤5
Magnetic shielding The optical fiber ring of key sensitive devices has magnetic shielding
Power supply ( V ) 6~16V power supply
Power consumption ( W ) ≤5
Dimensions ( mm ) 98*98* 32 98*98* 35
Weight ( g ) 450±10
Output method RS-422
Operating temperature (°C) -20 ℃ ~ + 60 ℃​
-40 ℃ ~ + 60 ℃​
Storage temperature (℃) -55 ℃ ~+8 5 ℃
Communication interface DB9, J30 J - 15 -TJ , customizable
