Specifications
Brand Name :
JTZG
Place of Origin :
china
MOQ :
negotiable
Price :
negotiable
Delivery Time :
According to customer's requirement
Payment Terms :
Negotiable
Supply Ability :
Strong production capacity
Original Place :
China
Power Supply :
-5,+5V
Grade :
Industrial
Turn On Time :
10s
Product Name :
Single Axis Gyroscope
Module Type :
Gyroscope
Applications :
Aerospace, Defense, Navigation, Robotics
Features :
Digital Closed-loop Mode
Description

Product Description:

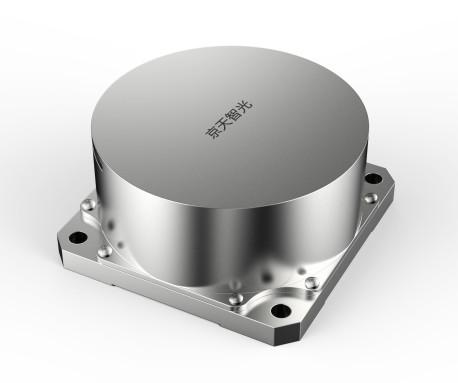

The Fiber Optic Gyroscope is a cutting-edge product designed for industrial-grade applications in the aerospace, defense, navigation, and robotics industries. This advanced gyroscope module features state-of-the-art technology that provides precise and reliable performance in various operating conditions.

As a Gyroscope module, the Fiber Optic Gyroscope utilizes cutting-edge technology to measure angular rates with high accuracy and stability. Its fiber optic design enables it to function as a Fiber Optic Inertial Angular Rate Sensor, providing crucial data for navigation, orientation, and stabilization applications.

Additionally, the Fiber Optic Gyroscope can be integrated into Fiber Optic Inertial Navigation Systems, enhancing the navigation capabilities of aerospace vehicles, defense systems, and robotic platforms. By utilizing fiber optic technology, this gyroscope module offers superior performance and reliability compared to traditional sensors.

The Fiber Optic Gyroscope is a versatile product with a wide range of applications across industries. Its precision and durability make it an ideal choice for aerospace missions, defense operations, navigation systems, and robotics projects. Whether used for flight control, autonomous navigation, or stabilization tasks, this gyroscope module delivers consistent and accurate results.

In summary, the Fiber Optic Gyroscope is a state-of-the-art product that serves as a Fiber Optic Rate Gyro, providing essential angular rate measurements for various applications. With its industrial-grade construction, wide operating temperature range, and compatibility with Fiber Optic Inertial Navigation Systems, this gyroscope module is a reliable and high-performance solution for demanding industrial needs.

Gyro Level standard A B C
Range ( °/s) ± 300
Bias stability ( °/h) , 10s < 0.2 (typical value 0.12) < 0.2 (typical value 0.07) < 0.1 (typical value 0.07) < 0.05(typical value 0.07)
Zero bias repeatability ( °/h) , 10s <0.2​ <0.2​ <0.1 <0.05
Random walk coefficient ( °/√h) <0.02 <0.02 <0.01 <0.005
Scale factor non-linearity ( ppm ) <50 <50 <50 <50
Scale factor asymmetry ( ppm ) <50 <50 <50 <50
Scale factor repeatability (ppm) <50 <50 <50 <50
Frequency bandwidth ( Hz ) ≥ 100
Startup time ( s ) ≤5
Magnetic shielding The optical fiber ring of key sensitive devices has magnetic shielding
Power supply ( V ) ±5V power supply
Power consumption ( W ) ≤5
Dimensions ( mm ) 60*60* 28
Weight ( g ) 160±10
Output method RS-422
Operating temperature (°C) -20 ℃ ~ + 60 ℃​
-40 ℃ ~ + 60 ℃​
Storage temperature (℃) -55 ℃ ~+ 85 ℃
Communication interface DB9, J30 J - 15 -TJ , customizable
