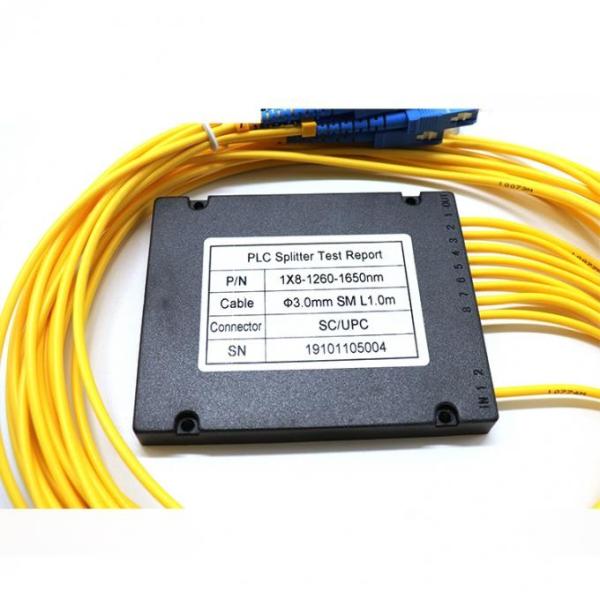

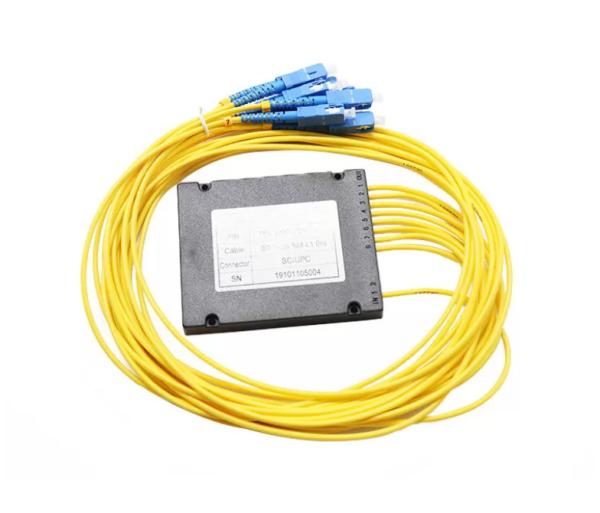

1x8 Hytrel Fiber Optic PLC Splitter
1x8 Hytrel Fiber Optic PLC Splitter
1x8 Hytrel Fiber Optic PLC Splitter
1x8 Hytrel Fiber Optic PLC Splitter
Specifications
Brand Name :
YT
Certification :
ISO, SGS, ROHS
Place of Origin :
china shenzhen
MOQ :
10 pcs
Price :
Negotiation
Payment Terms :
XTransfer T/T, Western Union, PayPal
Supply Ability :
5000 pcs/Month
Delivery Time :
3-7days
Type :
ABS Box
Length :
0.5m/1m
Fiber Type :
G657A
Wavelenghth :
1260-1650nm
Jacket Material :
LSZH,Hytrel
Application :
FTTH FTTB FTTX PON CATV
Connector Type :
SC/UPC
Description

1*8 Sc Upc Abs Box Type Fiber Optic Plc Splitter

Plc Splitter Description

Pigtailed ABS box PLC splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.

Rollball provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE requirements.

ABS Box Type is ready by flame retardant material box or plate packaging. Mainly suitable for cable points fiber box and wall mounted terminal box.

Plc Splitter Feature

Low Insertion loss, Low PDL

Compact Design

Good channel-to-channel uniformity

Wide Operating Wavelength: From 1260nm to 1650nm

Wide Operating Temperature: From -40℃to 85℃

High Reliability and Stability

Plc Splitter Specifications

Parameter Specification
Operating Wavelength (nm) 1260 ~ 1650
Type 1x4 1x8 1x16 2x4 2x8 2x16 1x32 2x32 1x64
Insertion Loss (dB) Max. * <7.3 <10.5 <13.5 <7.6 <11.2 <14.5 <16.2 <18.2 <20.5
Uniformity (dB) Max.* <0.8 <1.0 <1.5 <1.0 <1.5 <2.0 <2.0 <2.5 <2.5
PDL(dB)Max.* <0.2 <0.2 <0.3 <0.3 <0.3 <0.4 <0.3 <0.4 <0.3
Directivity (dB) ≥55
Return Loss (dB) UPC ≥55 APC ≥60
Operating Temperature (°C) -5~ +75
Storage Temperature (°C) -40 ~ +85
Fiber length 1m or custom length
Fiber Type Corning SMF-28e fiber
Connector Type Custom specified
Power Handling (mW)

300

Plc Splitter Application

1. Access Network
2. Telecom/CATV
3. Active device termination
4. Local Area Networks (LANS)
5. Metro
6. Test equipment
7. Data processing network
8. Wide Area Networks (WANS)
9. FTTX
