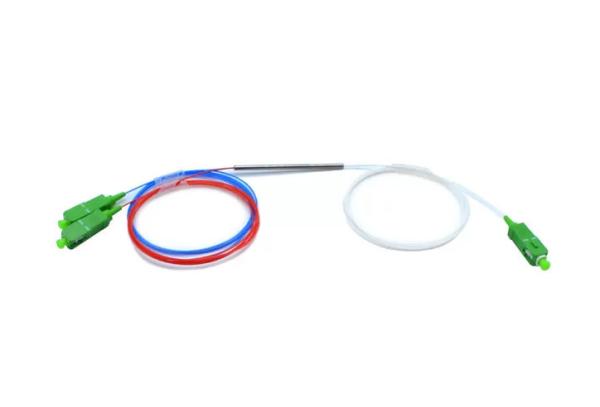

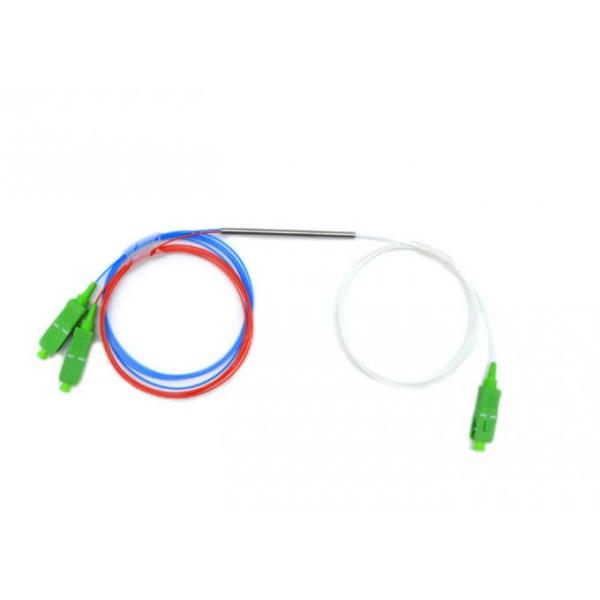

1310nm 1550nm 50 50 Fiber Coupler 1x2 FBT Fiber Optic Couplers And Splitters
1310nm 1550nm 50 50 Fiber Coupler 1x2 FBT Fiber Optic Couplers And Splitters
1310nm 1550nm 50 50 Fiber Coupler 1x2 FBT Fiber Optic Couplers And Splitters
1310nm 1550nm 50 50 Fiber Coupler 1x2 FBT Fiber Optic Couplers And Splitters
Specifications
Brand Name :
YT
Model Number :
ST/PC-SC/PC SM 3M
Certification :
ISO, SGS, ROHS
Place of Origin :
china shenzhen
MOQ :
10 pcs
Price :
Negotiation
Payment Terms :
XTransfer T/T, Western Union, PayPal
Supply Ability :
5000 pcs/Month
Delivery Time :
3-7days
Product Name :
1*2 FBT Coupler/splitter
Coupling Ration :
50/50
Fiber Connector :
SC/APC
Wavelenghth :
1310/1550nm
Fiber Lenghth :
1M
Application :
FTTH FTTB FTTX PON CATV
Description

1310/1550nm 50/50 Ratio 1x2 FBT fiber optic coupler splitter SC / APC Connector

1. Features:

Low Insertion

Low PDL

Compact Design

Good channel-to-channel uniformity

Wide Operating Temperature: -40°C - 85°C

2. Applications:

Tight and fine structure
High reliability and directivity
Non-sensitive wavelength
Good high temperature low temperature performance
Convenient engineering applications
Fine polarization
Wide scope wavelength

Parameter:

Item 　Specification
Fiber Type Single-mode Multi-mode
Splitting Ratio 50/50 40/60 30/70 20/80 10/90 5/95 1/99 50/50 40/60 30/70 20/80 10/90
Operating Wavelengh(nm) 1310±40; 1550±40; 1310&1550±40; 1310&1490&1550±20 850±40; 1310±40; 850&1310±40
Insertion Loss(dB) 3.6/3.6 4.4/2.8 5.6/2.1 7.5/1.5 10.5/0.9 13.5/0.7 21.5/0.25 4.1/4.1 5.2/3.2 6.5/2.5 8.5/1.8 12/1.4
PDL(dB) ≤0.1 ≤0.15
Thermal Stability(dB) ≤0.3 ≤0.5
Directivity(dB) ≥55 ≥40
Operating Temperature -40~85ºC

1310nm 1550nm 50 50 Fiber Coupler 1x2 FBT Fiber Optic Couplers And Splitters
