2.0mm SC APC Fiber Optic Splitter
2.0mm SC APC Fiber Optic Splitter
2.0mm SC APC Fiber Optic Splitter
2.0mm SC APC Fiber Optic Splitter
Specifications
Brand Name :
YT
Model Number :
ST/PC-SC/PC SM 3M
Certification :
ISO, SGS, ROHS
Place of Origin :
china shenzhen
MOQ :
10 pcs
Price :
Negotiation
Payment Terms :
XTransfer T/T, Western Union, PayPal
Supply Ability :
5000 pcs/Month
Delivery Time :
3-7days
Product Name :
Panel PLC Splitter Distribution Box
Jacket Size :
2.0mm
Fiber Connector :
SC/APC
Wavelenghth :
1260-1650nm
Jacket Material :
LSZH,Hytrel
Application :
FTTH FTTB FTTX PON CATV
Description

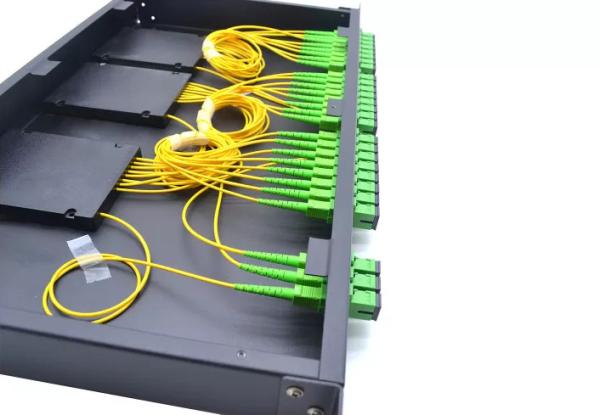

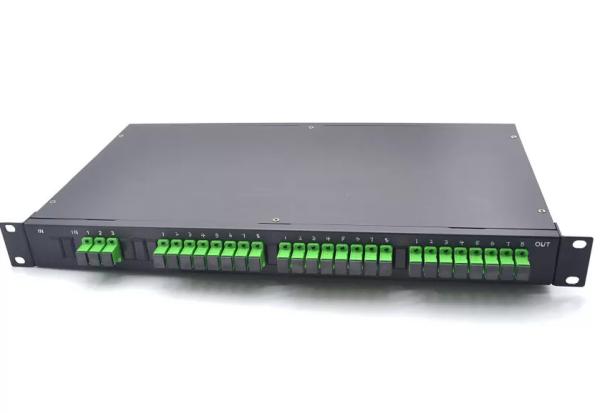

3In 24Out SC/APC Panel PLC Splitter Fiber Optical Distribution Box

PLC splitter is the planer wavelength integrated optic device which based on the quartz substrate, with small size, wide-field operation wavelength and high reliability and high splitter ratio features. Our company can manufacture the 1*N and 2*N all series products, and can be customized according to customer requirements in different situation.

Performance:

1×N PLC splitter (measured at room temperature and excludes connector loss)
Type 1*2 1*4 1*8 1*16 1*32 1*64
Fiber type 9/125 um SMF-28e or customer appoint
Operating wavelength(nm) 1260~1650
Insertion loss(dB) Typical 3.6 6.8 10.0 13.0 16.0 19.5
(P/S)Max 3.8/4.0 7.1/7.3 10.2/10.5 13.5/13.7 16.5/16.8 20.5/21.0
Loss uniformity(dB) Max 0.6 0.6 0.8 1.2 1.5 2.0
Polarization dependent loss(dB) Max 0.15 0.15 0.2 0.2 0.2 0.3
Directivity(dB) Min 55
Return loss(dB) Min UPC:50 APC:60
Operating temperature(℃) -40~85
Storage temperature(℃) -40~85

Features:

Low Insertion loss and Low PDL
Uniform power splitting
High reliability
Excellent environmental stability
Compact size and various package

Applications:


FTTx Systems
Digital, hybrid and AM-Video systems
LAN,WAN and Metro Networks
CATV systems
Other applictaions in fiber optic systems

Types:

1. Basic type PLC splitter

2. SFF type PLC splitter

3. 900um Fan-out Type PLC Splitter

4. Cassette type PLC splitter Module

5. Rack type PLC splitter Module

6. Tray assembly PLC splitter Module

7. Flat Quick-Connect Termination Type PLC Splitter Module
