Outdoor Armored GYTA53 Fiber Optic Cable Underground 288 Core Double Sheathed
Outdoor Armored GYTA53 Fiber Optic Cable Underground 288 Core Double Sheathed
Outdoor Armored GYTA53 Fiber Optic Cable Underground 288 Core Double Sheathed
Outdoor Armored GYTA53 Fiber Optic Cable Underground 288 Core Double Sheathed
Specifications
Cable Structure :
Tight Buffer
Strength Member :
aramid yarn
Fiber Counts :
24 / 36 / 48 / 72 / 96 / 144
Fiber Options :
OS1 / OS2 / OM1 / OM2 / OM3 / OM4
Material Of Jacket :
PE
Cable Diameter :
7.0x14mm±0.5 Mm For 144core
Application :
FTTA FTTH BBU RRU RRH LTE & Base Station
Place of Origin :
china shenzhen
Brand Name :
YT
Certification :
ISO, SGS, ROHS
MOQ :
10 pcs
Price :
Negotiation
Delivery Time :
3-7days
Payment Terms :
XTransfer T/T, Western Union, PayPal
Supply Ability :
5000 pcs/Month
Description

Double Armored Sheathed SM G652D Optical Fiber Cables

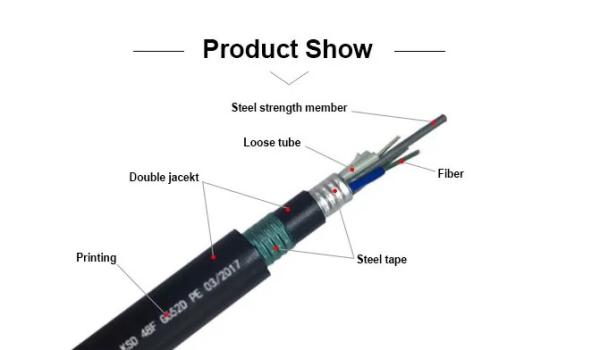

GYTA53 Double Armored and Double Sheathed Outdoor Fiber optic Cable

Discription:

The Underground Direct Buried Fiber Optic Cable GYTA53 are designed to provide high fiber counts with the flexibility and versatility required for today's most demanding installations, including direct buried. With fiber counts up to 288 and S-Z strand designs.

Cable performance:

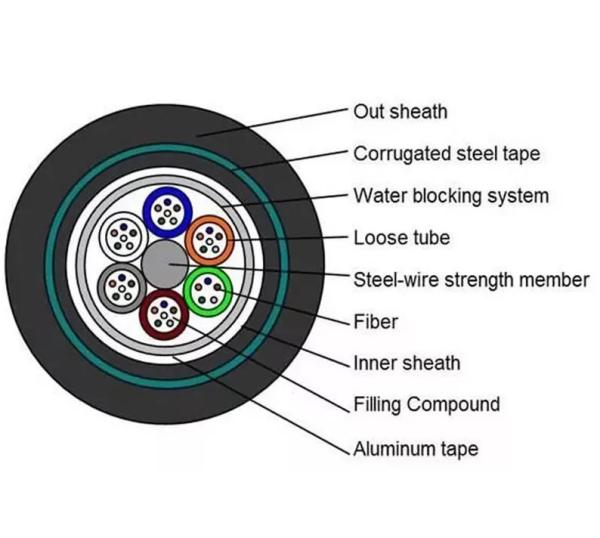

Item Parameters
Loose tube Material PBT
Color All colors display
Filler Material PE
Color Black
CSM Material Phosphating steel wire
Inner armoured Material Plastic coated aluminum strip
Inner jacket Material MDPE
Color Black
Outer armoured Material Plastic coated steel strip
Outer jacket Material MDPE
Color Black
Min. bending radius Static 12.5 times cable diameter
Dynamic 25 times cable diameter
Repeating bending Load:250N;number of cycles:30 No obvious addition attenuation, no fiber break and no cable damage.
Tensile performance Short term 3000N
Crush Short term 3000N/100mm
Torsion Load:250N; number of cycles:10; twist angle:±180° No obvious additionattenuation, no fiber break and no cable damage.

Dimensions of cable constructions:

Fiber count Structure Fibers per tube

Loose tube diameter

(mm)

Thickness of

Inner jacket

(mm)

Thickness of

outer jacket

(mm)

Cable diameter

(mm)

Cable weight

(kg/km)
12 1+6 6 1.7±0.1 0.9±0.1 1.8±0.1 12.8 ±0.5 164
24 1+6 6 1.7±0.1 0.9±0.1 1.8±0.1
