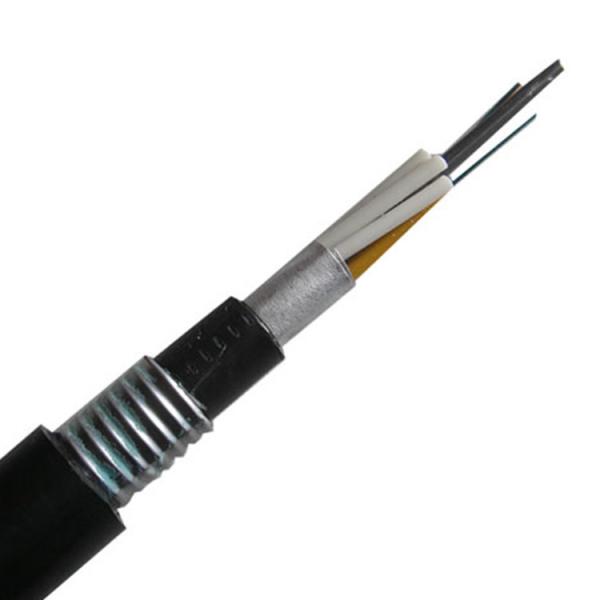

G652D 250um Fiber Outdoor Armored Fiber Optic Cable GYTA53 48 Core
G652D 250um Fiber Outdoor Armored Fiber Optic Cable GYTA53 48 Core
G652D 250um Fiber Outdoor Armored Fiber Optic Cable GYTA53 48 Core
G652D 250um Fiber Outdoor Armored Fiber Optic Cable GYTA53 48 Core
Specifications
Product name :
GYTA53 Fiber Optic Cable
Fiber Type :
G652D Or As Your Request
Fiber Count :
2-288core
Strength Member :
Steel Wire
Outer Sheath Material :
HDPE
Protective Layer :
Corrugated Steel Tape
Place of Origin :
china shenzhen
Brand Name :
YT
Certification :
ISO, SGS, ROHS
MOQ :
10 pcs
Price :
Negotiation
Delivery Time :
3-7days
Payment Terms :
XTransfer T/T, Western Union, PayPal
Supply Ability :
5000 pcs/Month
Description

Direct Buried Outdoor Armored 48 Core Optic Fiber Cable GYTA53

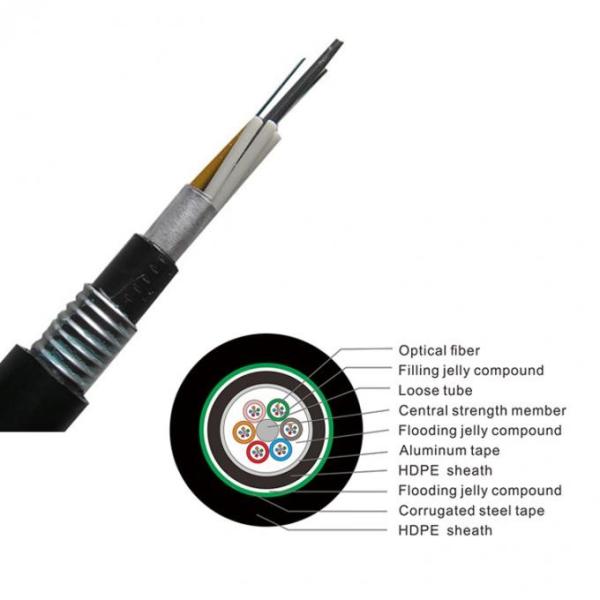

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count,locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core.which is filled with the filling compound to protect it from water ingress. Then the cable core is covered with a thin PE inner sheath. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.

Cable Mechanical characteristic:

Cable type Diameter (mm) Weight (kg/km) Tensile strength
Long/short term (N)		 Crush Resistance Long/Short Term (N/100mm) Bending radius
Dynamic/static (mm)		 Storage temperature ( ℃ )
GYTA53-2~60 10.0 140 600/1500 300/1000 20D/10D -20~+70
GYTA53-62~72 12.0 170
GYTA53-74~96 14.0 210
GYTA53-98~120 15.0 230
GYTA53-122~144 16.0 245

Mechanical requirements and methods of fiber cable:

Tensile strength 10935N, conform to IEC 794-1-E1,While Fiber Strain≤0.33%
Crush 2200N/100mm, conform to IEC 794-1-E3
Impact Conform to IEC 794-1-E4
Repeated bending Conform to IEC 794-1-E6
Torsion Conform to IEC 794-1-E7
Flexing Conform to IEC 794-1-E8
Kink Conform to IEC 794-1-E10
Cable bend Conform to IEC 794-1-E11
Vibration Conform to IEC 794-1
Water penetration Conform to IEC 794-1-F5B
Abrasion Conform to IEC 794-1-E2
Temperature cycling test Conform to IEC 794-1-F1
Dielectric strength of outer jacket Conform to ITU-T Rec.K25

Characteristics:

◆ Good mechanical and temperature performance.
◆ High strength loose tube that is hydrolysis resistant.
◆ Special tube filling compound ensure a critical protection of fiber.
◆ Crush resistance and flexibility.
◆ The following measures are taken to ensure the cable watertight:
➢ Steel wire used as the central strength member
➢ Loose tube filling compound
➢ 100% cable core filling
➢ PSP enhancing moisture-proof
➢ APL moisture barrier

➢ Water-blocking material

Application:

1. Adopted to outdoor distribution.
2. Suitable for aerial, duct and direct buried.
3. Long distance and local area network communication.
