High-Precision MEMS IMU Inertial Measurement Unit with 100% Domestically Produced Components and 1K Hz High-Speed Sampling
High-Precision MEMS IMU Inertial Measurement Unit with 100% Domestically Produced Components and 1K Hz High-Speed Sampling
High-Precision MEMS IMU Inertial Measurement Unit with 100% Domestically Produced Components and 1K Hz High-Speed Sampling
High-Precision MEMS IMU Inertial Measurement Unit with 100% Domestically Produced Components and 1K Hz High-Speed Sampling
High-Precision MEMS IMU Inertial Measurement Unit with 100% Domestically Produced Components and 1K Hz High-Speed Sampling
High-Precision MEMS IMU Inertial Measurement Unit with 100% Domestically Produced Components and 1K Hz High-Speed Sampling
Specifications
Dimensions :
5.6*5.6*3.85 cm
Output format :
RS422
Packaging Details :
Wooden box/Cardboard box/Container
Delivery Time :
2-4 weeks
Payment Terms :
T/T
Supply Ability :
10000
Model Number :
LKF-MSU300
Place of Origin :
China
Brand Name :
Liocrebif
Certification :
GJB 9001C-2017
Price :
5000-25000CHY
Power supply :
5±0.2V
Update rate :
200 Hz (customizable, maximum 1000)
MOQ :
1
Gyroscope range :
±400 °/s
Accelerometer range :
±30 g
Description

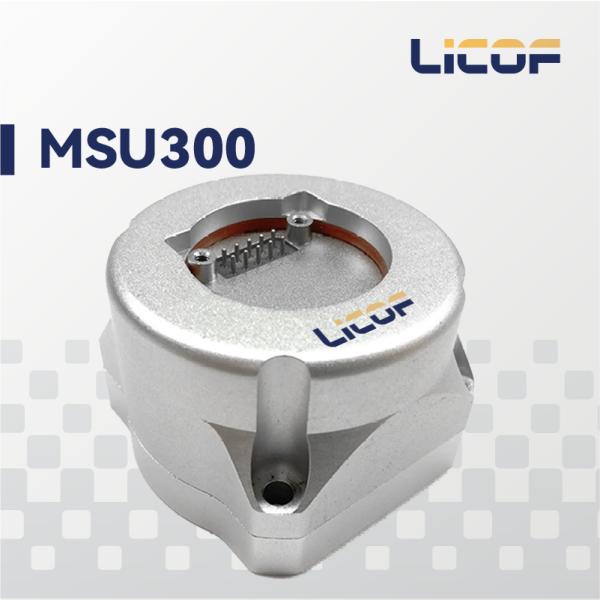

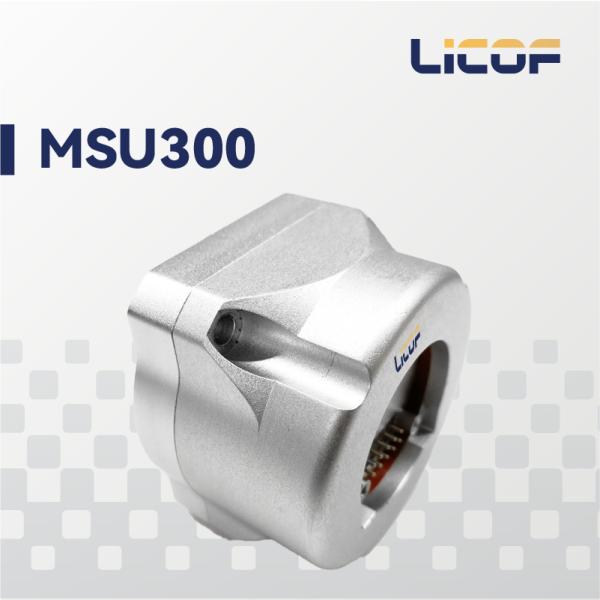

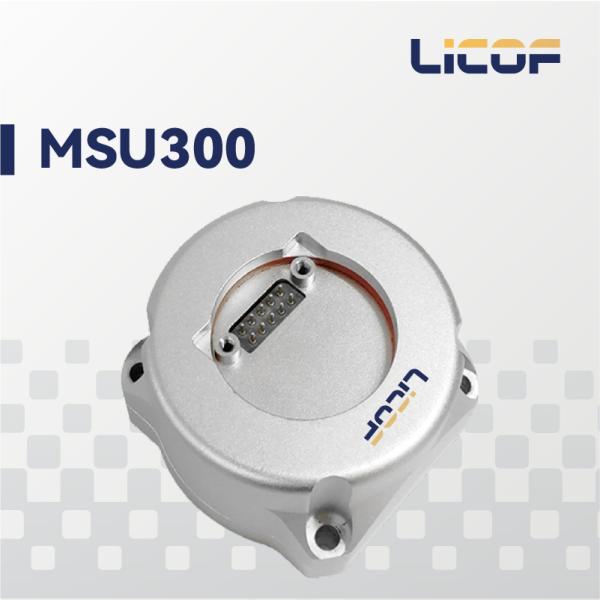

LKF-MSU300 MEMS Inertial Measurement Unit

The LKF-MSU300 is a highly reliable and cost-effective six-axis MEMS inertial sensor, widely applicable in navigation, control, and measurement fields including inertial navigation and attitude stabilization.

This IMU employs enhanced structural design and structural adhesive sealing to ensure accurate measurement of angular and linear motion parameters even in harsh environments, providing users with a highly reliable solution. It can be configured with different hardware and software settings to meet diverse user requirements.

Key Features
  • High-Precision MEMS IMU
  • 100% domestically produced components
  • High performance, compact size, low power consumption
  • -45°C to +80°C full temperature range calibration and compensation
  • 1K Hz high-speed sampling
  • Harsh mechanical environment resistance
  • Online firmware update
Applications
  • Guided weapons under harsh mechanical and temperature conditions
  • UAV/UGV/USV Attitude Reference
  • Attitude Control
  • Radar/IR Antenna Stabilization Platform
Technical Specifications
MEMS Gyroscope
Range (°/s) ±400
Bias (°/h) ≤2
Bias Stability (°/h, 10s smoothing) ≤0.3
Bias Instability (°/h, Allan) ≤0.03
Angle Random Walk (°/√h) ≤0.3
Bias Repeatability (°/h) ≤0.02
Scale Factor Nonlinearity (ppm) ≤100
Cross-Axis Coupling (rad) ≤0.001
Bandwidth (Hz) ≥200Hz
MEMS Accelerometer
Range (g) ±30
Bias (mg) ≤2
Bias Stability (μg) ≤50
Bias Instability (μg, Allan) ≤30
Velocity Random Walk (m/s/√h) ≤50
Bias Repeatability (μg) ≤0.03
Scale Factor Nonlinearity (ppm) ≤100
Bandwidth (Hz) ≤0.001
Cross-Axis Coupling (rad) ≥200Hz
Electrical/Mechanical Interface
Power Supply (V) 5±0.2V
Power (W) ≤2
Startup Time (s) ≤2
Communication Interface 2-channel RS-422
Update Rate (Hz) 200 (customizable, maximum 1000)
Dimensions (mm x mm x mm) 56*56*38.5
Weight (g) 236±5g
Operating Environment
Operating Temperature (°C) -45～80
Storage Temperature (°C) -55～85
Vibration (g, Rms) 13
Shock (g) 1000g/1ms (energized)
